PLAN 17-2495

Home Plan - European Exterior - Other Elevation Plan #17-2495

Key Specs

sq ft





Select Plan Set Options

What's included?
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 17-2495

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

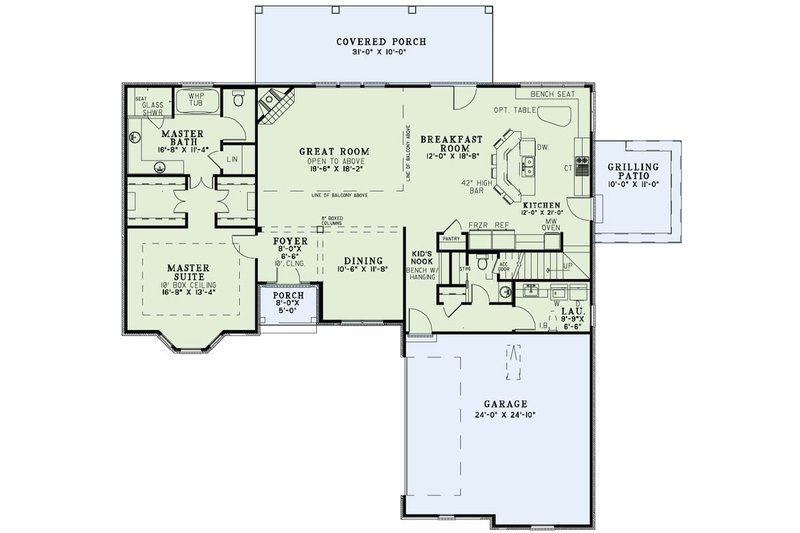

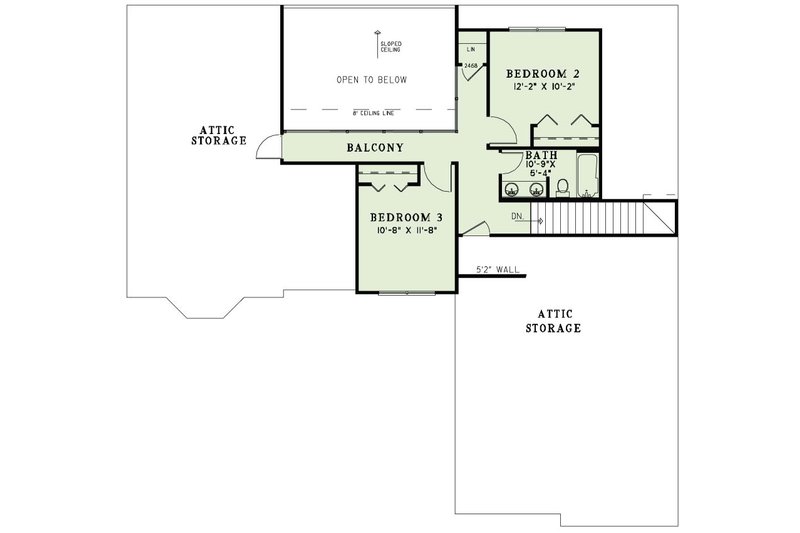

This open floor plan starts with a 10' ceiling in the foyer. It opens to the Dining Room which features an elegant 8” column and both are open to the Great Room which features a corner fireplace. Adding to the spacious feeling, the Great Room is open to the balcony above and to the Breakfast Room and Kitchen. The Kitchen features a large angled eat-at island bar, perfect for quick meals or conversation while meals are being prepared. In a corner of the kitchen are bench seats with an optional table, conducive to family time. Take the cooking outdoors to the Grilling Patio that’s off of the Kitchen. And if you want space, the Master suite awaits with its 10’ boxed ceiling and charming bay window. Two large walk-in closets are next to the bathroom that features a whirlpool tub, a glass shower with a bench seat, and dual vanities. Upstairs there are 2 more bedrooms, a full bath, and a balcony overlooking the Great Room.

Full Specs & Features

Depth : 68'
Height : 26' 2"
Width : 72' 6"
First Floor: 1925 sq/ft height 9'
Garage: 605 sq/ft height 9'
Second Floor: 581 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details :
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 10:12
Roof Framing : Stick
Roof Load : 45
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone Veneer
Framing : 2x4
Insulation : R-13
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bath 2:

width 10' 9" x depth 5' 4"

Bedroom 2:

width 12' 2" x depth 10' 2"

Bedroom 3:

width 10' 8" x depth 11' 8"


width 12' x depth 18' 8"


width 10' 6" x depth 11' 8"


width 9' x depth 6' 6"


605 sq/ft width 24' x depth 24' 10"

Grilling Patio:

width 10' x depth 11'


width 12' x depth 21'


width 9' 9" x depth 6' 6"

Master Bath:

width 16' 8" x depth 11' 4"

Master Bedroom:

width 16' 8" x depth 13' 4"

Porch Front:

40 sq/ft width 8' x depth 5'

Porch Rear:

320 sq/ft width 31' x depth 10'

What's Included In This Plan Set

  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
5 Copy and PDF Set :
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.


Wood 2x4:
Wood 2x4
Wood 2x6:
Wood 2x6

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.
