PLAN 21-321
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
This beautiful narrow lot design offers traditional neighborhood styling

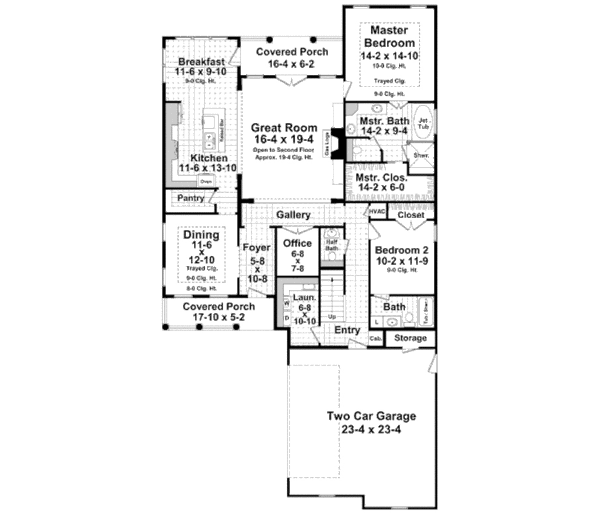

along with great floor plan features. The first floor includes a large
great room complimented by two story ceilings, a gas log fireplace,
built-in cabinets, and great views. A well-equipped kitchen offers easy
access to the formal dining room as well as the casual breakfast area
and large walk-in pantry. The master suite features a large walk-in
closet, trayed ceiling, dual vanities, jet tub, and separate shower. A
guest bedroom is also provided on the first floor with private bath. A
large laundry room and half bath are also provided with easy access to
the two car garage with additional storage. Two covered porches also

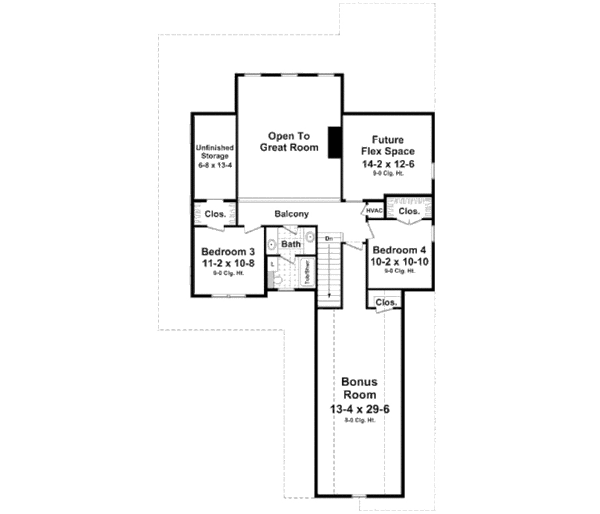

provide the perfect environment for outdoor entertaining. The second
floor boasts two well-sized bedrooms complete with ample closet space
and plenty of room for additional storage or expansion. The functional
floor plan and attractive exterior combine to make this a plan that you
and your family can be proud to call home.
Full Specs & Features
Dimension
Depth : 80' 8"
Height : 32' 8"
Width : 43'
Height : 32' 8"
Width : 43'
Area
First Floor: 1998 sq/ft height 9'
Second Floor: 512 sq/ft height 9'
Second Floor: 512 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling : 8'
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 10:12
Roof Framing : stick
Roof Load : 30 psf LL 10 psf DL
Roof Type : Gable
Secondary Pitch : 6:12
Roof Framing : stick
Roof Load : 30 psf LL 10 psf DL
Roof Type : Gable
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x6"
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Play Flex Room
Storage Area
Unfinished Future Space
Great Room Living Room
Play Flex Room
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
Rooms
Bedroom 2:
119 sq/ft width 10' 2" x depth 11' 9"
Bedroom 3:
119 sq/ft width 11' 2" x depth 10' 8"
Bedroom 4:
110 sq/ft width 10' 2" x depth 10' 10"
Bonus Room - Unfinished:
393 sq/ft width 13' 4" x depth 29' 6"
Breakfast:
113 sq/ft width 11' 6" x depth 9' 10"
Dining Room:
147 sq/ft width 11' 6" x depth 12' 10"
Flex Room:
177 sq/ft width 14' 2" x depth 12' 6"
Garage:
544 sq/ft width 23' 4" x depth 23' 4"
Great Room:
315 sq/ft width 16' 4" x depth 19' 4"
Kitchen:
159 sq/ft width 11' 6" x depth 13' 10"
Laundry Room:
72 sq/ft width 6' 8" x depth 10' 10"
Master Bathroom:
132 sq/ft width 14' 2" x depth 9' 4"
Master Bedroom:
210 sq/ft width 14' 2" x depth 14' 10"
Master Closet:
85 sq/ft width 14' 2" x depth 6'
Office:
51 sq/ft width 6' 8" x depth 7' 8"
Porch - Front:
92 sq/ft width 17' 10" x depth 5' 2"
Porch - Rear:
100 sq/ft width 16' 4" x depth 6' 2"
Storage:
88 sq/ft width 6' 8" x depth 13' 4"
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Questions? Call 1-888-447-1946
Plan Set
| 5 Copy Set : $1260.00 |
5 printed plan sets mailed to you. |
| PDF Set : $1350.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy and PDF Set : $1440.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $1597.50 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $1867.50 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set : $1170.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Additional Options
| Right-Reading Reverse : $135.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $54.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $35.10 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $90.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Material List : $135.00 |
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options. |
| Mirror Reversed Sets : $45.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
