PLAN 72-887
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

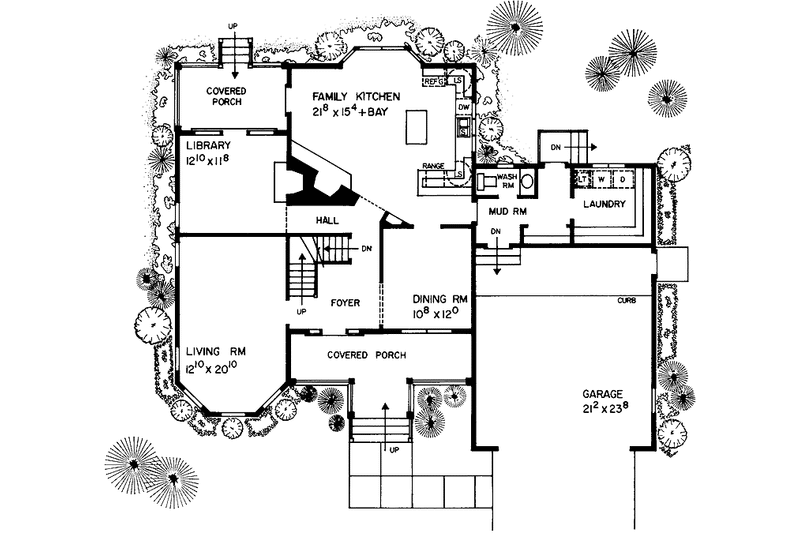

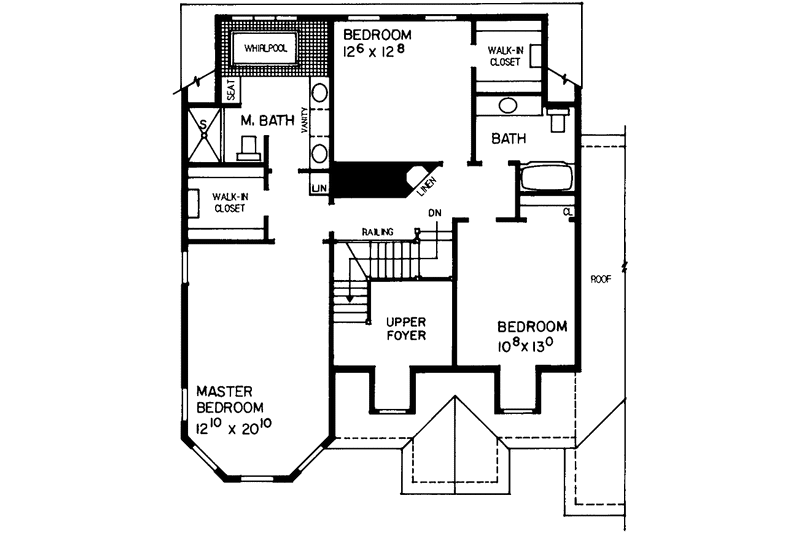

Floor Plans
Full Specs & Features
Dimension
Depth : 46'
Height : 32'
Width : 57' 6"
Area
First Floor: 1399 sq/ft height 9'
Second Floor: 1123 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Loft
Main Floor Laundry
Storage Area
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Rooms
3rd BR Closet:
10 sq/ft width 2' 1" x depth 5'
Basement Foundation:
1099 sq/ft width 34' x depth 32' 4"
Bathroom 2:
78 sq/ft width 9' x depth 8' 8"
Bedroom 2:
158 sq/ft width 12' 6" x depth 12' 8"
Bedroom 2 Closet:
39 sq/ft width 6' 1" x depth 6' 6"
Bedroom 3:
138 sq/ft width 10' 8" x depth 13'
Bedroom 3 Closet:
39 sq/ft width 6' 1" x depth 6' 6"
Crawlspace Foundation:
170 sq/ft width 20' 6" x depth 8' 4"
Den/Office or Bedroom 1:
149 sq/ft width 12' 10" x depth 11' 8"
Dining Room:
128 sq/ft width 10' 8" x depth 12'
Foyer:
83 sq/ft width 10' 10" x depth 7' 8"
Garage:
500 sq/ft width 21' 2" x depth 23' 8"
Kitchen:
332 sq/ft width 21' 8" x depth 15' 4"
Laundry Room:
84 sq/ft width 9' 4" x depth 9' 1"
Living Room:
267 sq/ft width 12' 10" x depth 20' 10"
Master Bathroom:
168 sq/ft width 12' 8" x depth 13' 4"
Master Bedroom:
267 sq/ft width 12' 10" x depth 20' 10"
Master Closet:
45 sq/ft width 6' 6" x depth 7'
Porch - Front:
130 sq/ft width 21' 8" x depth 6'
Porch - Rear:
106 sq/ft width 13' 4" x depth 8'
Wash Room:
23 sq/ft width 3' 4" x depth 7'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1275.12
$1413.72
$1552.32
Foundation
$0.00
$275.00
$275.00
$275.00
Framing
$0.00
Additional Options
$195.00
$60.00
$495.00
$150.00
$295.00
$39.00
$150.00
$85.00
$0.00
$995.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
