PLAN 310-1049
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

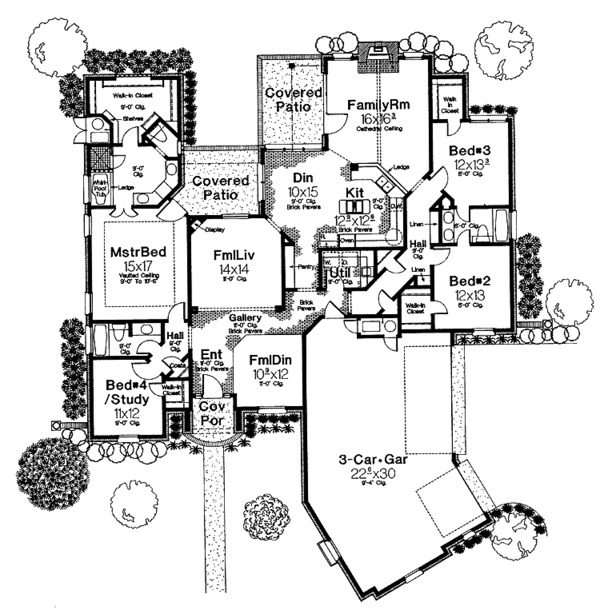

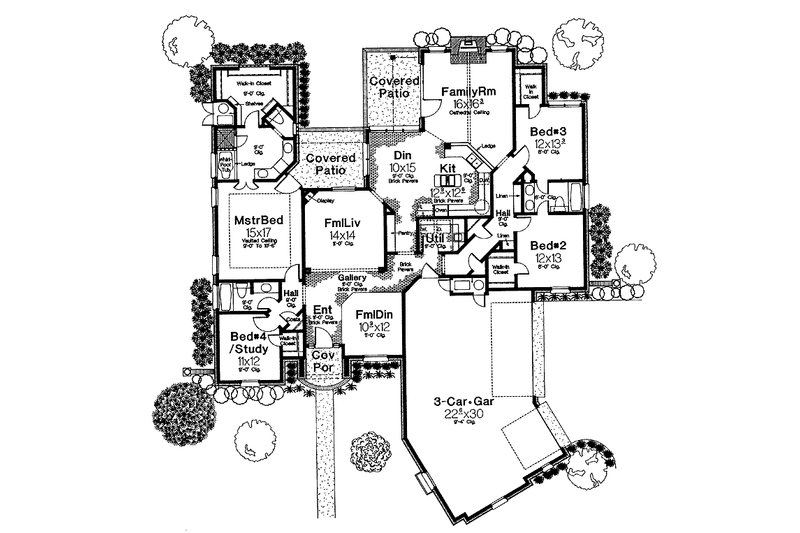

Floor Plans
Full Specs & Features
Dimension
Depth : 81' 7"
Height : 29'
Width : 64'
Area
First Floor: 2526 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
Bedroom 2:
156 sq/ft width 12' x depth 13'
Bedroom 3:
159 sq/ft width 12' x depth 13' 3"
Bedroom 4:
132 sq/ft width 11' x depth 12'
Breakfast Room:
150 sq/ft width 10' x depth 15'
Dining Room:
129 sq/ft width 10' 9" x depth 12'
Front porch:
31 sq/ft width 6' 2" x depth 5'
Garage:
675 sq/ft width 22' 6" x depth 30'
Gathering Room:
260 sq/ft width 16' x depth 16' 3"
Kitchen:
159 sq/ft width 12' 9" x depth 12' 6"
Kitchen Island:
1350 sq/ft width 54' x depth 25'
Living Room:
196 sq/ft width 14' x depth 14'
Master Bedroom:
255 sq/ft width 15' x depth 17'
Study:
132 sq/ft width 11' x depth 12'
Utility Room:
48 sq/ft width 6' x depth 8'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

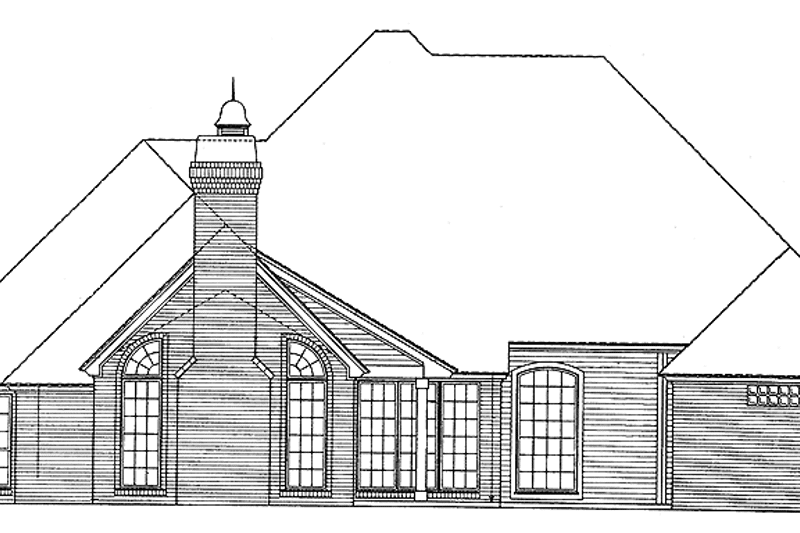

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Plan Set
$1195.00
$1335.00
$1485.00
$1485.00
$1140.00
Foundation
$0.00
Framing
$0.00
Additional Options
$175.00
$50.00
$100.00
$39.00
$85.00
$65.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
