PLAN 923-7

Key Specs


2532
sq ft

3
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

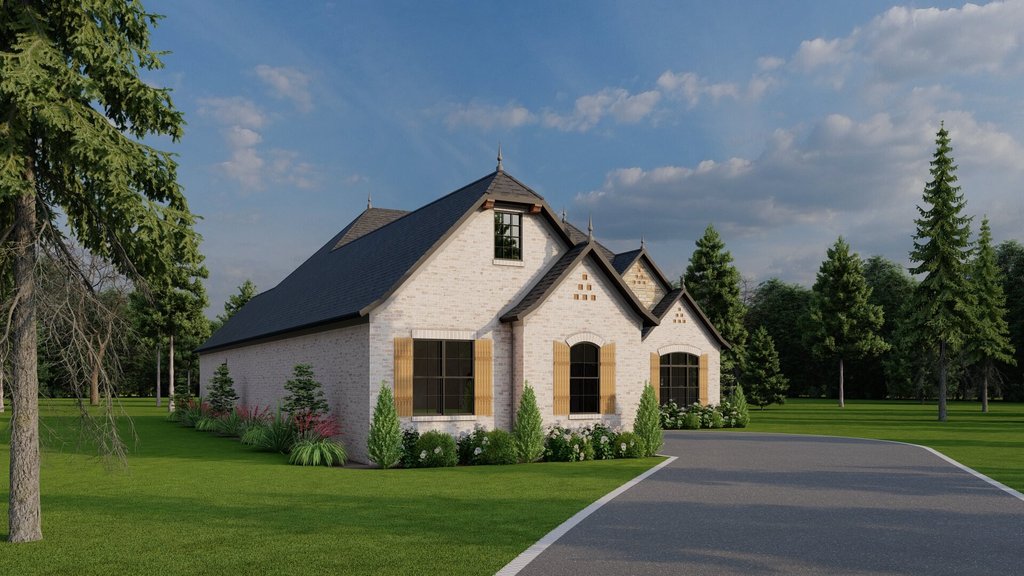

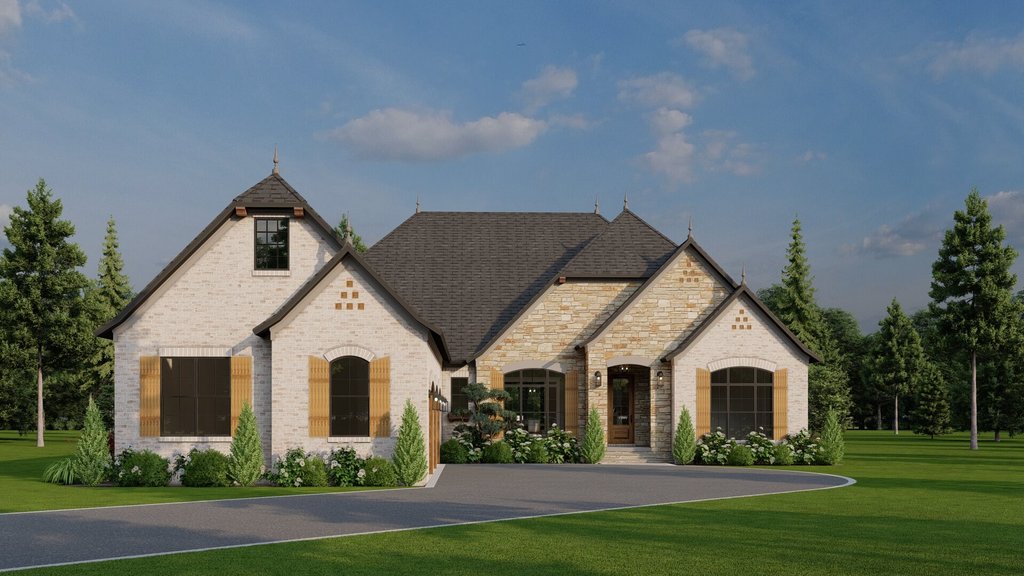

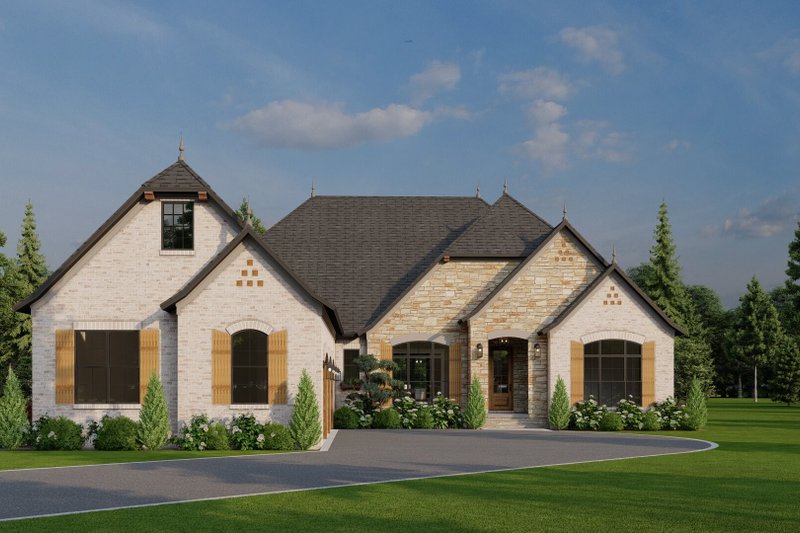

This European style home focuses on family activities with an exceptional rear porch. The large foyer, with the dining room to the left, leads directly to the great room with it's fireplace and timbered ceiling. The kitchen has a wide island bar, a walk-in pantry below the stairs and easy access to the rear grilling porch. The master suite is a dream with a vaulted ceiling and it's own private office. The master bath will greet you each day with a whirlpool tub, a large corner glass shower and a huge walk in closet that has convenient access to the laundry room. Two additional main level bedrooms each have a walk-in closet and share a Jack and Jill bath. Finally, there is large area for future use.

Floor Plans

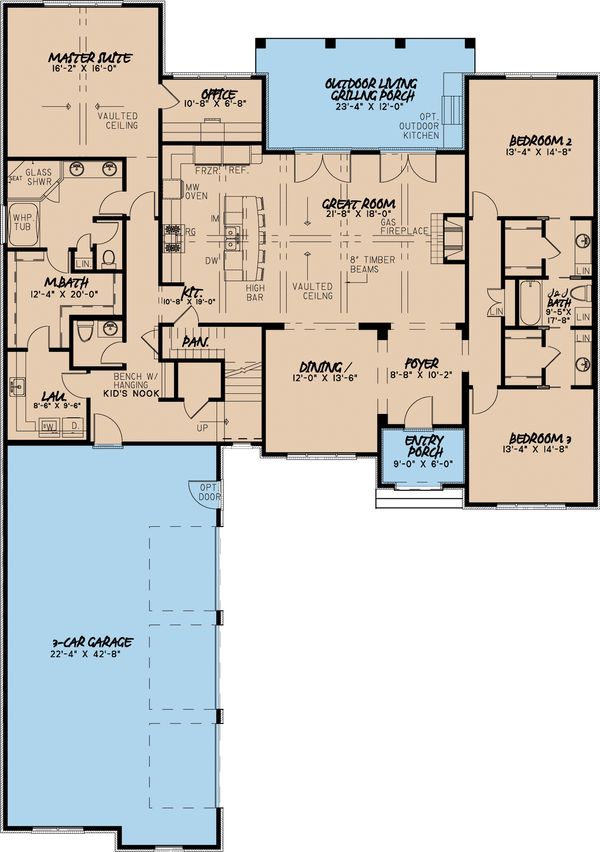

Floor Plan - Main Floor Plan
Reverse
Save European Floor Plan - Main Floor Plan Plan #923-7

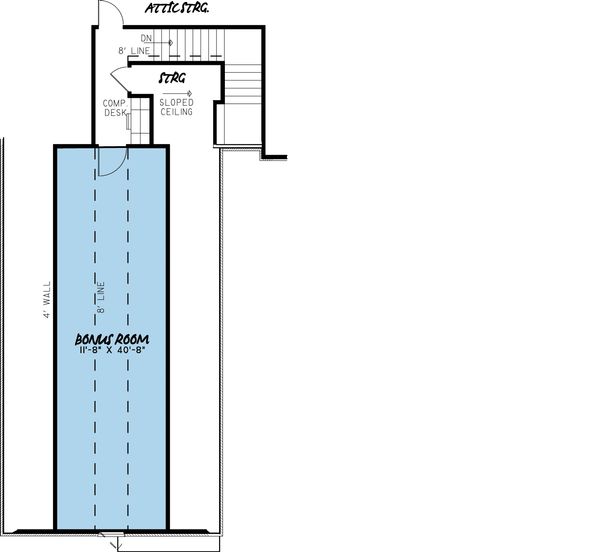

Floor Plan - Other Floor Plan
Reverse
Save European Floor Plan - Other Floor Plan Plan #923-7

Full Specs & Features


Dimension
Depth : 90'
Height : 30'
Width : 63' 2"
Area
Bonus: 591 sq/ft
First Floor: 2532 sq/ft height 10'
Garage: 969 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling : 8'
Main Ceiling : 10'
Roof
Primary Pitch : 12:12
Roof Framing : Stick
Roof Load : 45 lb/sf
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2x4
Insulation : R13
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Play Flex Room
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms

Covered Front Porch:

54 sq/ft

Covered Rear Porch:

276 sq/ft

What's Included In This Plan Set


See a sample plan set
  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
» See important information before purchasing.

Plan Set

PDF Set :
$1020.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1120.00
5 printed plan sets mailed to you.
CAD Set :
$2240.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$250.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$250.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00
Wood 2x4
Wood 2x6:
$250.00
Wood 2x6

Additional Options

Right-Reading Reverse :
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.
