PLAN 60-970
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

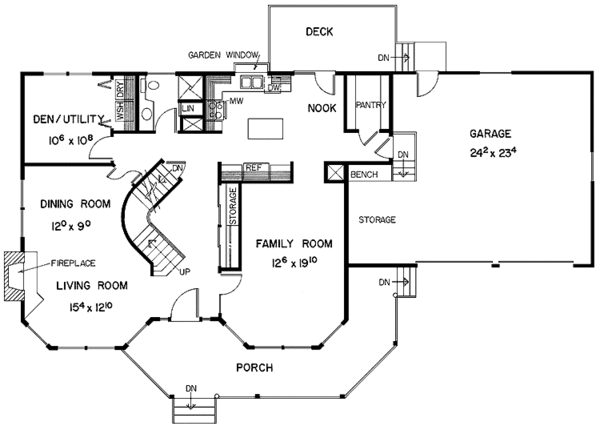

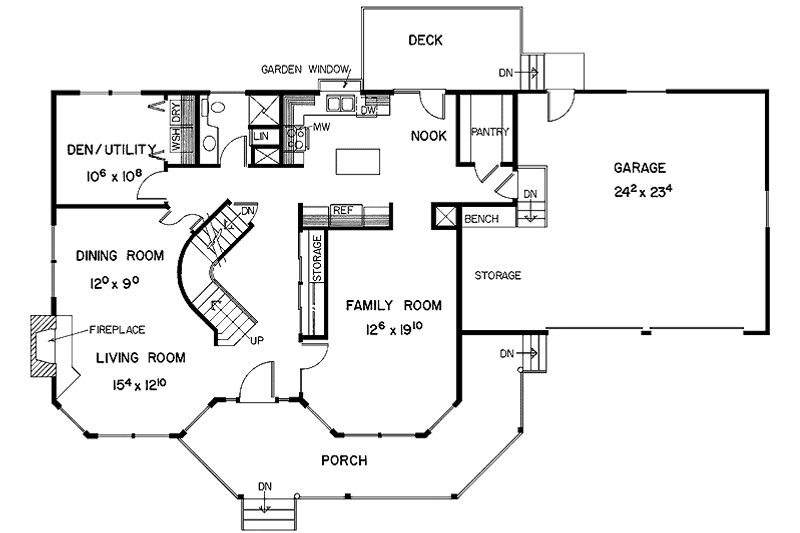

Floor Plan - Main Floor

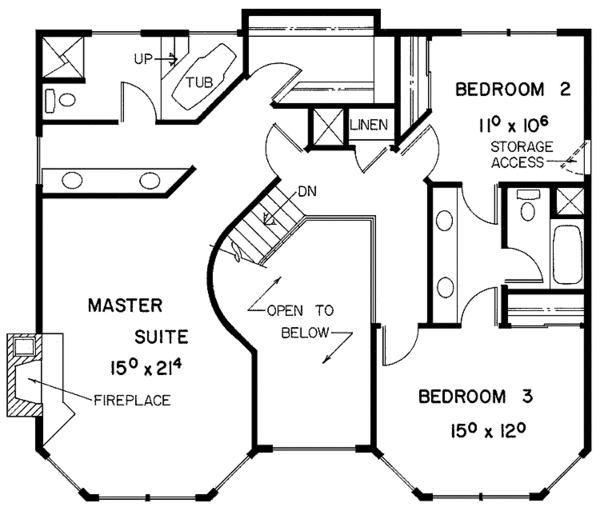

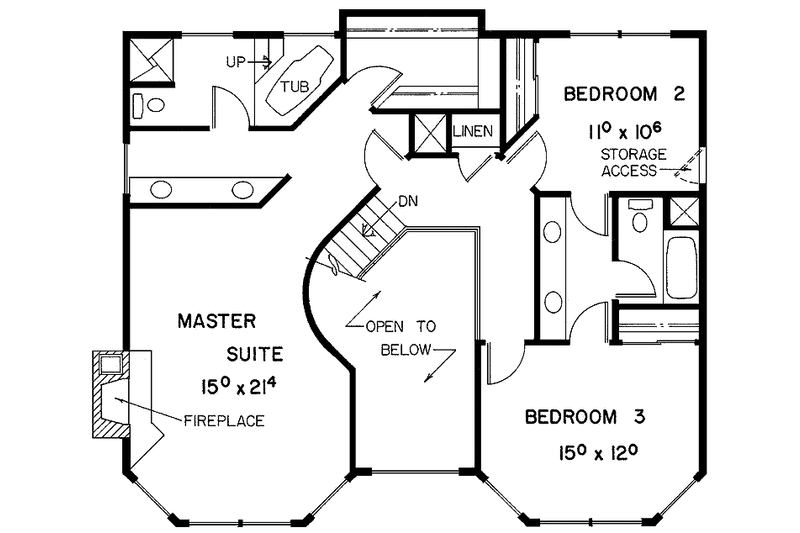

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 34'
Height : 29'
Width : 70'
Area
First Floor: 1352 sq/ft
Second Floor: 1180 sq/ft
Roof
Primary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Deck
Wrap Around Porch
Rooms
Bedroom 2:
115 sq/ft width 11' x depth 10' 6"
Bedroom 3:
180 sq/ft width 15' x depth 12'
Den:
110 sq/ft width 10' 6" x depth 10' 6"
Dining Room:
108 sq/ft width 12' x depth 9'
Family Room:
247 sq/ft width 12' 6" x depth 19' 10"
Garage:
563 sq/ft width 24' 2" x depth 23' 4"
Living Room:
196 sq/ft width 15' 4" x depth 12' 10"
Master Suite:
319 sq/ft width 15' x depth 21' 4"
What's Included In This Plan Set

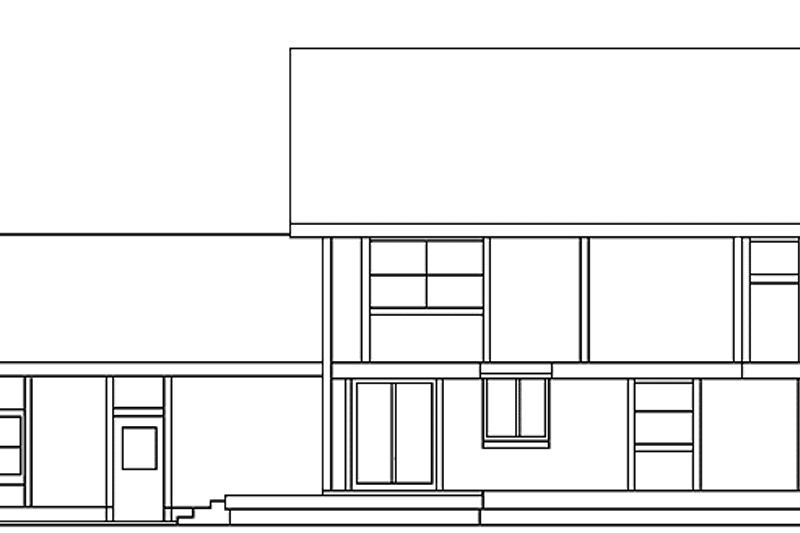

- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
