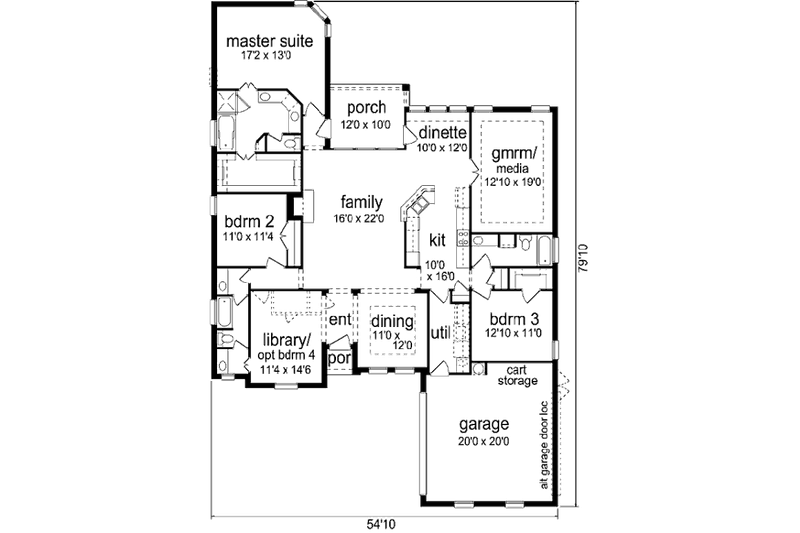

PLAN 84-484
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 79' 10"
Height : 23' 10"
Width : 54' 10"
Area
First Floor: 2542 sq/ft height 10'
Garage: 476 sq/ft
Porch: 137 sq/ft
Ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Master Sitting Area
Media Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
124 sq/ft width 11' x depth 11' 4"
Bedroom 3:
141 sq/ft width 12' 10" x depth 11'
Dinette:
120 sq/ft width 10' x depth 12'
Dining Room:
132 sq/ft width 11' x depth 12'
Family Room:
352 sq/ft width 16' x depth 22'
Game Room:
243 sq/ft width 12' 10" x depth 19'
Garage:
400 sq/ft width 20' x depth 20'
Kitchen:
160 sq/ft width 10' x depth 16'
Master Suite:
223 sq/ft width 17' 2" x depth 13'
Porch - Rear:
120 sq/ft width 12' x depth 10'
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale
- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

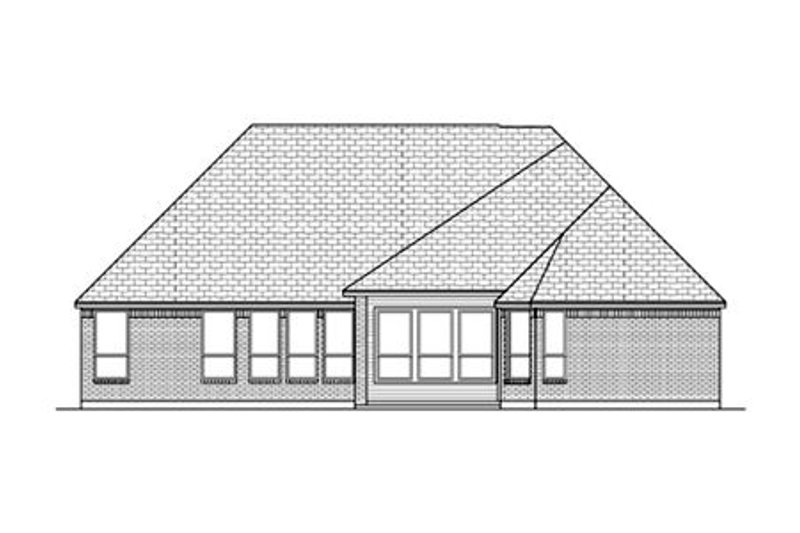

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
Plan Set
$885.00
$960.00
$1075.00
$1130.00
$1865.00
$825.00
Foundation
$0.00
$0.00
Additional Options
$175.00
$60.00
$100.00
$39.00
$100.00
$60.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
