PLAN 70-412
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 61' 8"
Height : 31'
Width : 66'
Area

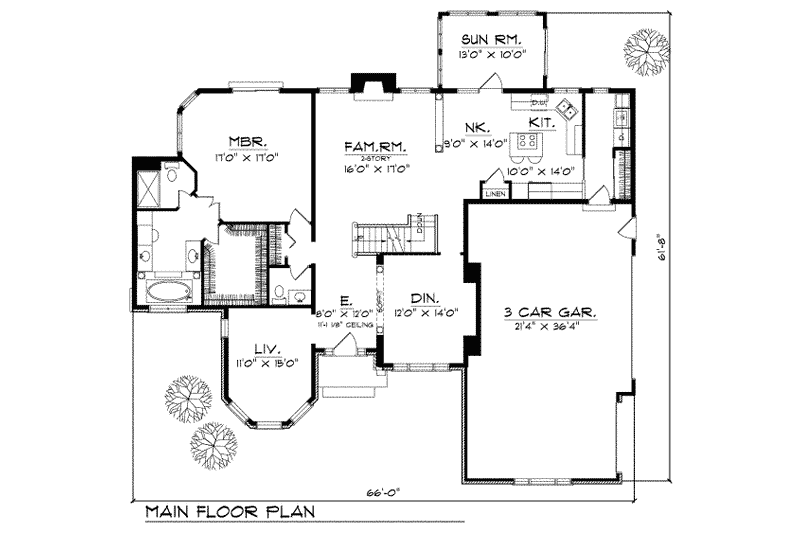

First Floor: 2033 sq/ft height 9'

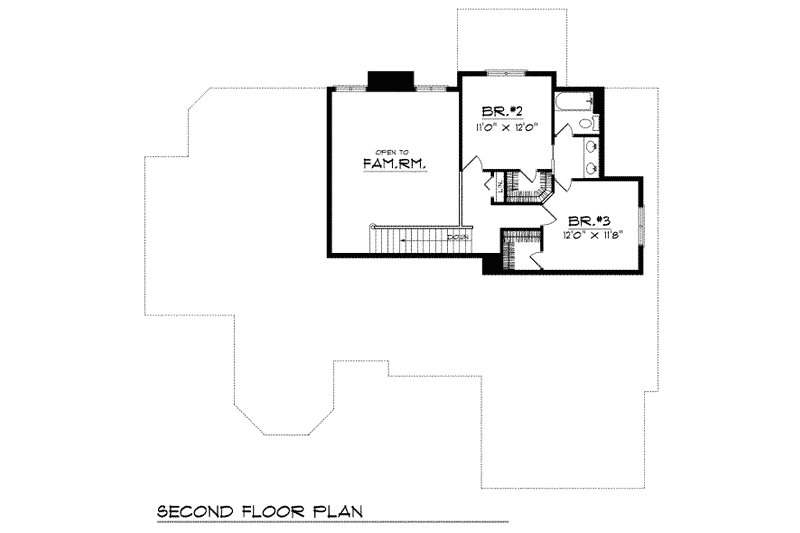

Second Floor: 542 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Family Room Keeping Room
Sunroom
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Screened Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
132 sq/ft width 11' x depth 12'
Bedroom 3:
140 sq/ft width 12' x depth 11' 8"
Breakfast Room:
126 sq/ft width 9' x depth 14'
Dining Room:
168 sq/ft width 12' x depth 14'
Garage:
775 sq/ft width 21' 4" x depth 36' 4"
Gathering Room:
272 sq/ft width 16' x depth 17'
Kitchen:
140 sq/ft width 10' x depth 14'
Living Room:
165 sq/ft width 11' x depth 15'
Master Bedroom:
289 sq/ft width 17' x depth 17'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1100.00
$1163.00
$1394.00
$1394.00
$2217.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$295.00
$39.00
$75.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
