PLAN 938-24

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description


Dramatic arches on this Mediterranean plan from the Energy Saver Plus Home Plans Collection provide a suitably striking focal point. The great room takes center stage inside, with a coffered and tray ceiling and access to the wide rear lanai. A breakfast bar provides plenty of seating in the open island kitchen, which easily serves the nearby dining room. The master suite occupies the whole left wing with a large bedroom, walk-in closets, and a spa-like bath with a bumped-out tub. Two additional bedrooms share a full bath in a private wing to the right. Energy-saving building techniques included in this and all other Energy Saver Plus plans can enable energy savings of 40-50% when built to spec, compared to a typical new home.

Full Specs & Features


Dimension

Depth : 97'

Height : 27' 6"

Width : 49' 6"

Area

First Floor: 2500 sq/ft height 10'

Garage: 487 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Roof Type : Clay Tile

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : Wood - 2x6

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

132 sq/ft width 12' x depth 11'

Bedroom 3:

142 sq/ft width 13' 4" x depth 10' 8"

Den:

151 sq/ft width 13' x depth 11' 8"

Dining Room:

156 sq/ft width 13' x depth 12'

Garage:

420 sq/ft width 21' x depth 20'

Great Room:

525 sq/ft width 25' x depth 21'

Kitchen:

208 sq/ft width 16' x depth 13'

Master Suite:

252 sq/ft width 18' x depth 14'

What's Included In This Plan Set


  • Cover Sheet

    The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.

  • Wall Sections

    The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

  • Foundation Plan

    The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

  • Second floor framing (where appropriate)

    The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

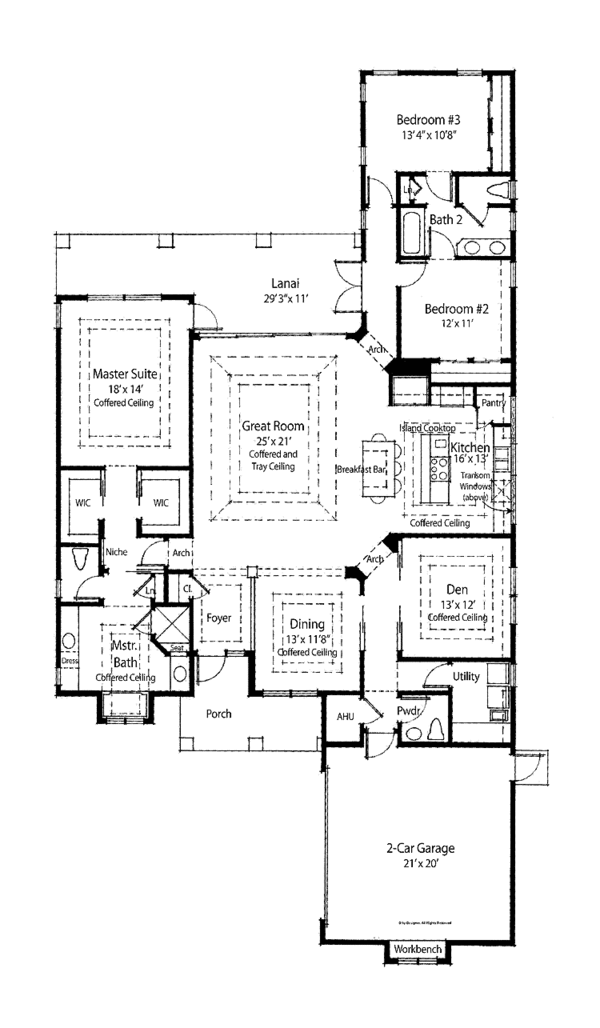

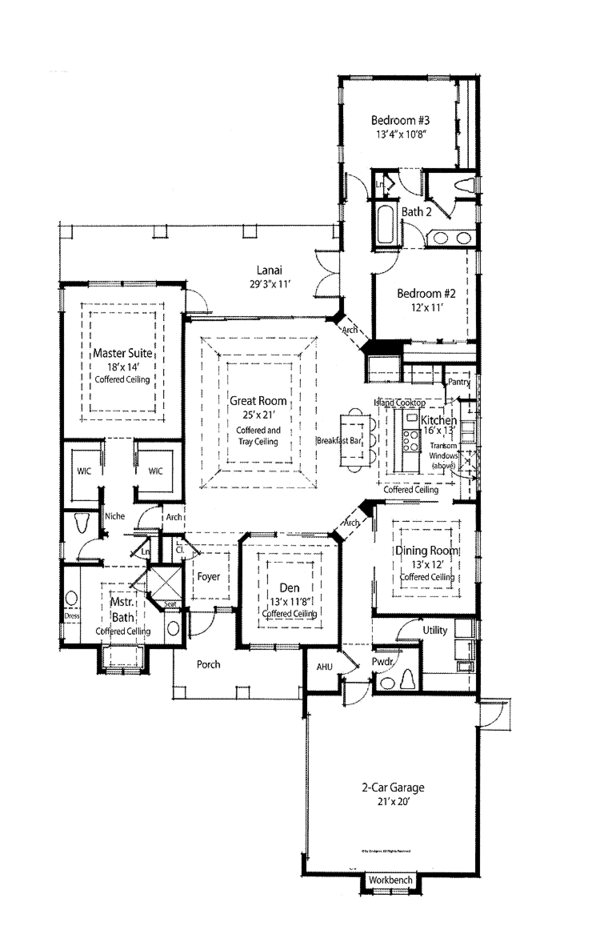

  • Floor Plans

    The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

  • Roof Plan & Soffit (Chase Layout) Plan

    The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

  • Reflected Ceiling Plan

    The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

  • Exterior Elevations

    The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.

  • Cross Section & Interior Elevations

    The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.

  • Electrical Plan

    The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
» See important information before purchasing.
Questions? Call 1-888-447-1946
