Full Specs & Features
Height : 30'
Width : 56'
Bonus: 420 sq/ft
First Floor: 2014 sq/ft height 9'
Garage: 639 sq/ft
Second Floor: 573 sq/ft
Upper Ceiling Ft : 8'
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 14:12
Framing : 2"x4"
Walk In Closet
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Great Room Living Room
Play Flex Room
Unfinished Future Space
Side Entry Garage
Suited For View Lot
Bathroom 2:
40 sq/ft width 8' x depth 5'
Bathroom 3:
54 sq/ft width 6' x depth 9'
Bedroom 2:
141 sq/ft width 12' 6" x depth 11' 4"
Bedroom 3:
153 sq/ft width 13' 4" x depth 11' 6"
Bedroom 4:
140 sq/ft width 12' x depth 11' 8"
Bonus Room - Finished:
420 sq/ft width 30' x depth 14'
Breakfast Room:
136 sq/ft width 11' 8" x depth 11' 8"
Den/Office or Bedroom 1:
124 sq/ft width 11' x depth 11' 4"
Dining Room:
138 sq/ft width 12' x depth 11' 6"
Front Entry:
70 sq/ft width 10' x depth 7'
Garage:
604 sq/ft width 29' 6" x depth 20' 6"
Kitchen:
182 sq/ft width 13' 6" x depth 13' 6"
Kitchen Island:
6 sq/ft width 2' x depth 3'
Laundry Room:
52 sq/ft width 7' 6" x depth 7'
Living Room:
314 sq/ft width 19' 8" x depth 16'
Master Bathroom:
117 sq/ft width 10' 8" x depth 11'
Master Bedroom:
219 sq/ft width 16' 6" x depth 13' 4"
Master Closet:
94 sq/ft width 6' 9" x depth 14'
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

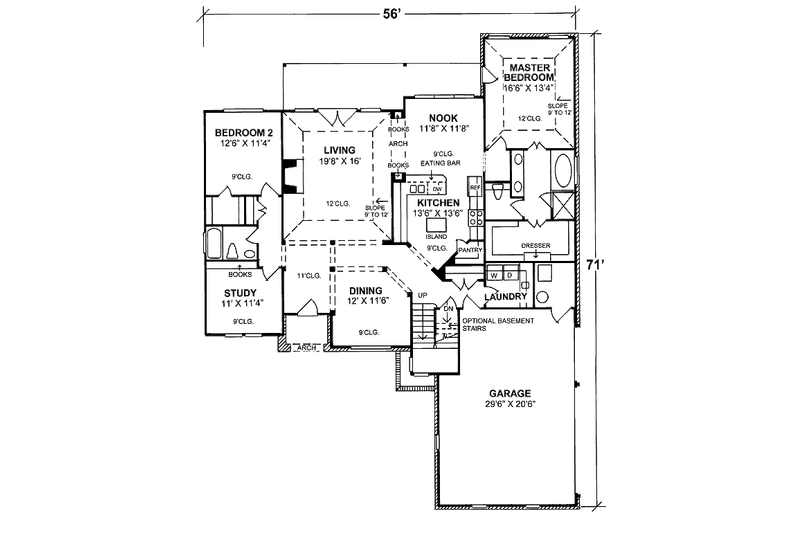

- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.

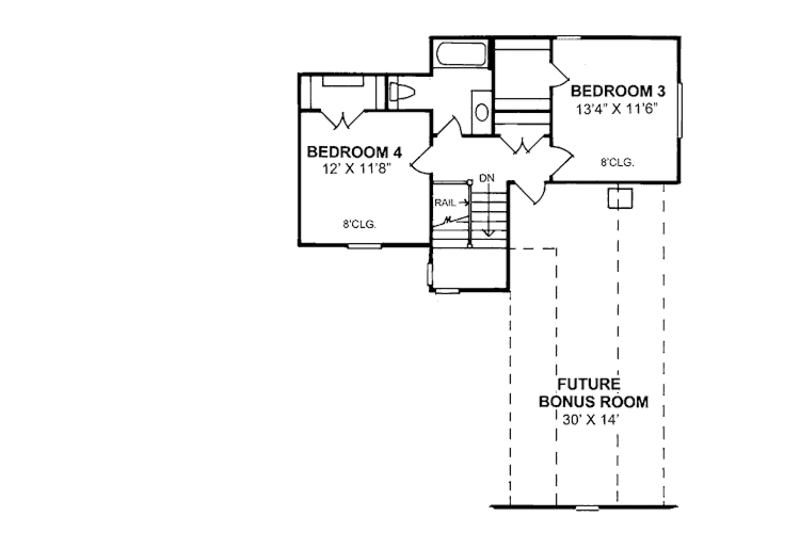

- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
