Full Specs & Features
Depth : 45'
Height : 36'
Width : 76'
First Floor: 1401 sq/ft height 9'
Second Floor: 1189 sq/ft height 9'
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : 2"x4"
190 sq/ft width 11' 8" x depth 16' 4"
158 sq/ft width 15' 4" x depth 10' 4"
88 sq/ft width 11' x depth 8'
147 sq/ft width 11' 4" x depth 13'
528 sq/ft width 22' x depth 24'
192 sq/ft width 16' x depth 12'
322 sq/ft width 23' x depth 14'
210 sq/ft width 11' 8" x depth 18'
128 sq/ft width 11' 4" x depth 11' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

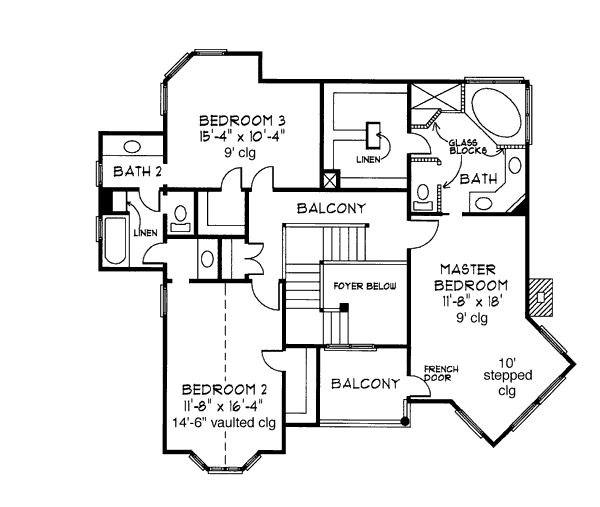

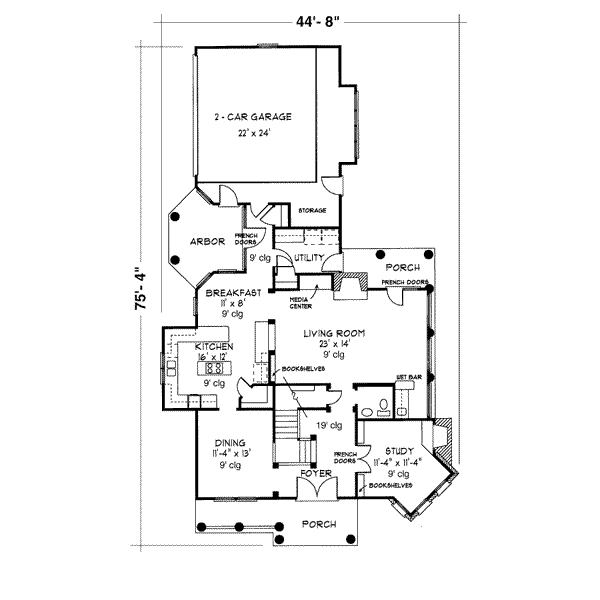

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
