Full Specs & Features
Depth : 47' 9"
Height : 36' 8"
Width : 64' 6"
First Floor: 1340 sq/ft height 10'
Garage: 469 sq/ft
Porch: 413 sq/ft
Second Floor: 1253 sq/ft height 9'
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
166 sq/ft width 13' 2" x depth 12' 8"
177 sq/ft width 14' x depth 12' 8"
139 sq/ft width 12' 8" x depth 11'
83 sq/ft width 8' 10" x depth 9' 6"
199 sq/ft width 13' 4" x depth 15'
345 sq/ft width 18' 6" x depth 18' 8"
134 sq/ft width 11' 8" x depth 11' 6"
244 sq/ft width 13' 4" x depth 18' 4"
162 sq/ft width 12' 10" x depth 12' 8"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.

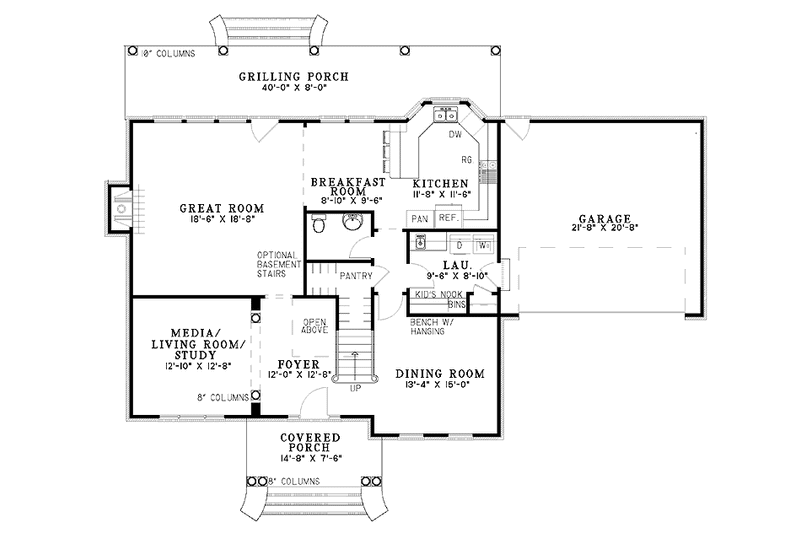

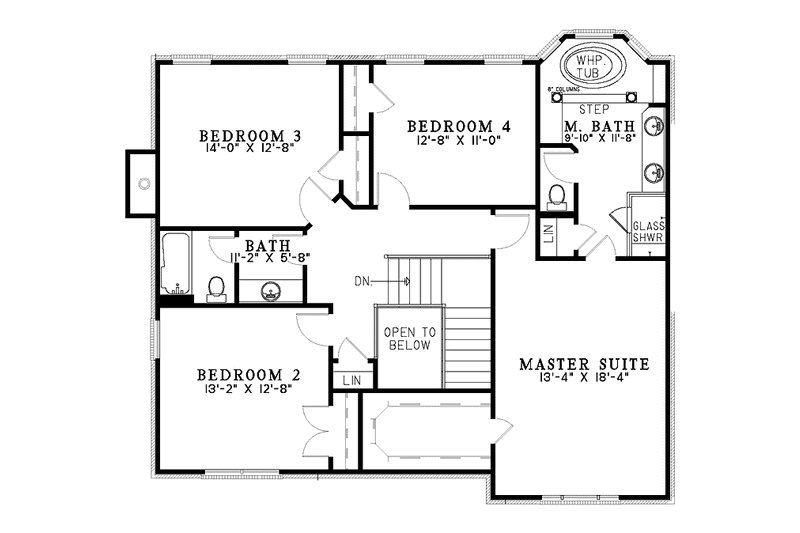

- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
