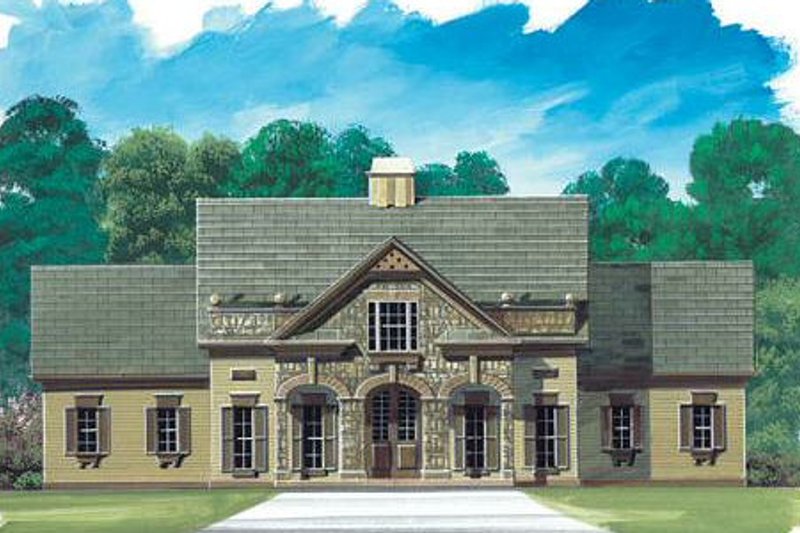

Home Plan - European Exterior - Front Elevation Plan #119-151

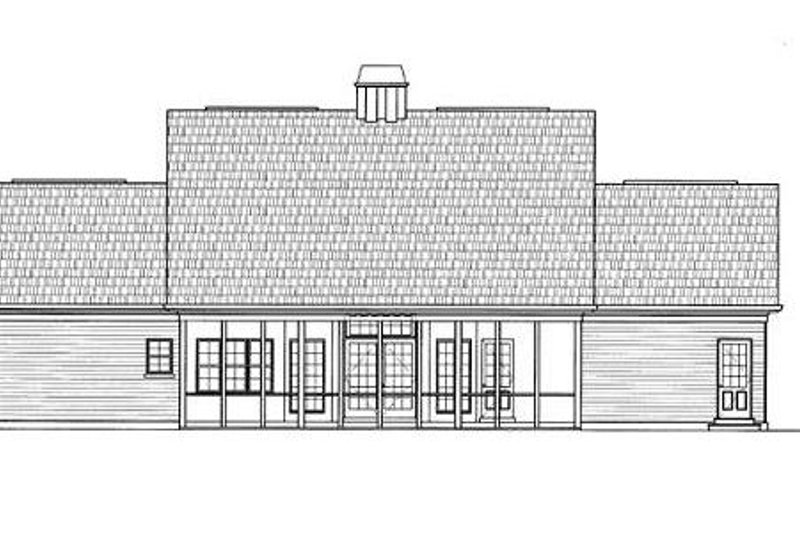

Home Plan - European Exterior - Rear Elevation Plan #119-151

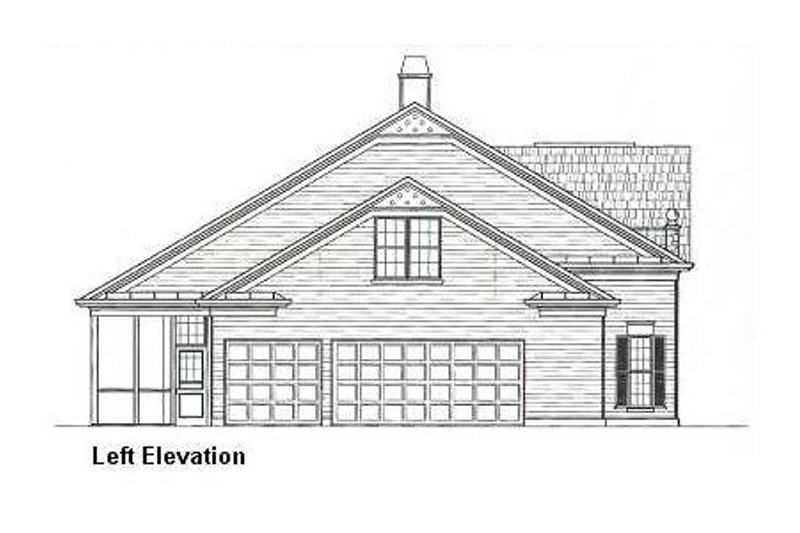

Home Plan - European Exterior - Other Elevation Plan #119-151

Home Plan - European Floor Plan - Main Floor Plan #119-151

Home Plan - European Floor Plan - Upper Floor Plan #119-151

Jump to:
All (5)
Exterior (3)
Floor plans (2)

Get Personalized Help

Home > Style > European

Key Specs

2594
sq ft

3
Beds

3
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$200.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1295.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 119-151

Home > Style > European

Key Specs

2594
sq ft

3
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This european design floor plan is 2594 sq ft and has 3 bedrooms and 3 bathrooms.

Floor Plans

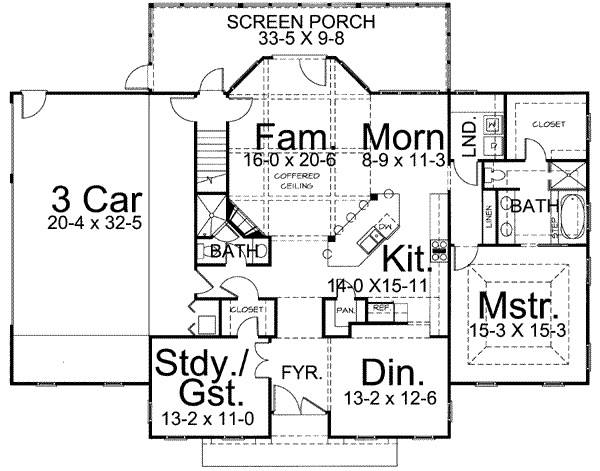

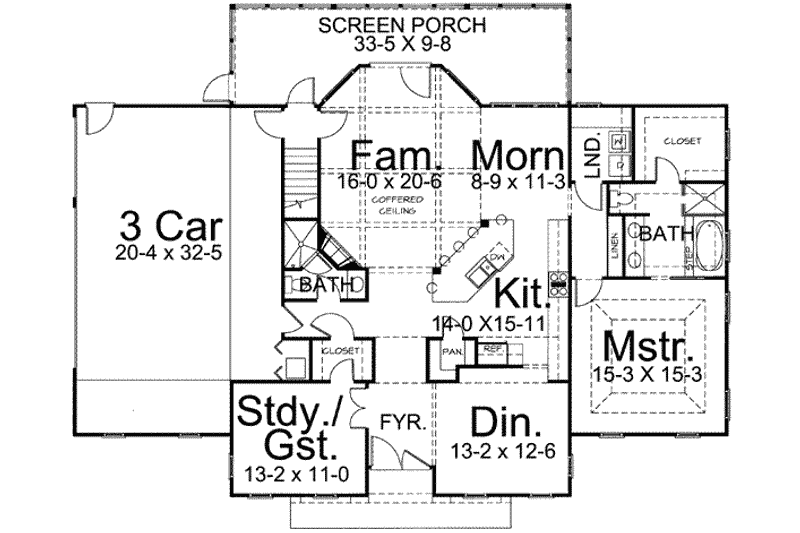

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

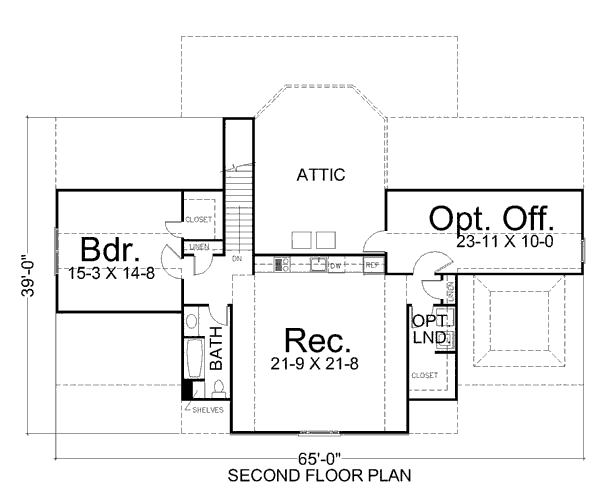

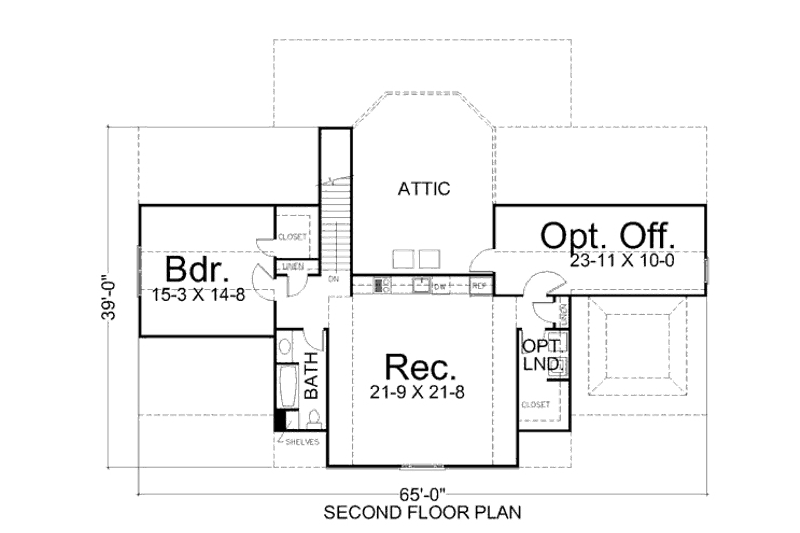

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 49'

Height : 26'

Width : 66'

Area

First Floor: 1730 sq/ft height 8'

Second Floor: 864 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : 2"x4"

Bedroom Features

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Storage Area

Sunroom

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Screened Porch

Rooms

Bedroom 2:

223 sq/ft width 15' 3" x depth 14' 8"

Breakfast Room:

98 sq/ft width 8' 9" x depth 11' 3"

Dining Room:

164 sq/ft width 13' 2" x depth 12' 6"

Family Room:

328 sq/ft width 16' x depth 20' 6"

Garage:

659 sq/ft width 20' 4" x depth 32' 5"

Kitchen:

222 sq/ft width 14' x depth 15' 11"

Master Bedroom:

232 sq/ft width 15' 3" x depth 15' 3"

Office:

239 sq/ft width 23' 11" x depth 10'

Porch - Screened:

323 sq/ft width 33' 5" x depth 9' 8"

Recreation Room:

471 sq/ft width 21' 9" x depth 21' 8"

Study:

144 sq/ft width 13' 2" x depth 11'

What's Included In This Plan Set

See a sample plan set

Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
Second Floor Lighting: The same details as provided for the first floor.
Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
