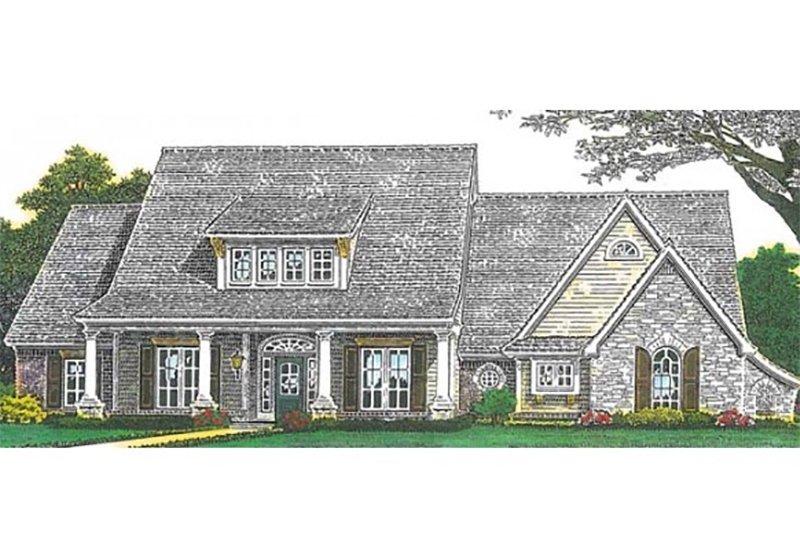

PLAN 310-993
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

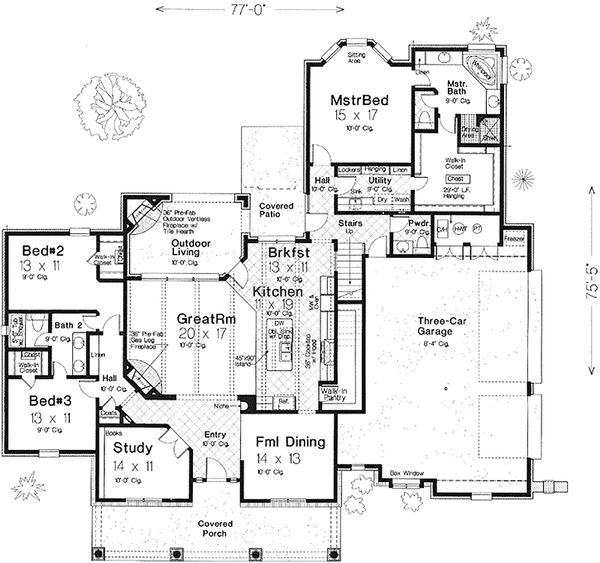

Floor Plan - Main Floor

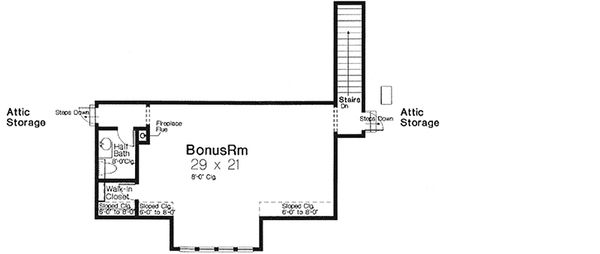

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 75' 5"
Height : 32'
Width : 77'
Area
Bonus: 682 sq/ft height 8'
First Floor: 2602 sq/ft height 10'
Garage: 947 sq/ft
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 12:12
Roof Framing : Stick
Roof Type : Shingle
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2x4
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Master Sitting Area
Play Flex Room
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
width 13' x depth 11'
Bedroom 2 closet:
22 sq/ft width 6' x depth 3' 8"
Bedroom 3:
width 13' x depth 11'
Bedroom 3 closet:
22 sq/ft width 6' x depth 3' 8"
Bonus Room:
682 sq/ft width 29' x depth 21'
Breakfast:
width 13' x depth 11'
Dining:
width 14' x depth 13'
Front Porch:
280 sq/ft width 35' x depth 8'
Garage:
752 sq/ft width 23' 6" x depth 32'
Great Room:
width 20' x depth 17'
Kitchen:
width 11' x depth 19'
Master bath:
width 12' 6" x depth 9'
Master Bedroom:
width 15' x depth 17'
Master closet:
width 12' 6" x depth 9' 6"
Outdoor living:
200 sq/ft width 17' x depth 11' 9"
Rear covered patio:
48 sq/ft width 8' x depth 6'
Study:
width 14' x depth 11'
Utility Room:
71 sq/ft width 10' 8" x depth 6' 8"
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$1195.00
$1335.00
$1485.00
$1485.00
$2270.00
$1140.00
Foundation
$0.00
$495.00
Additional Options
$150.00
$50.00
$100.00
$39.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
