Full Specs & Features
Depth : 60'
Height : 31' 3"
Width : 72'
Basement Unfinished: 1584 sq/ft height 8'

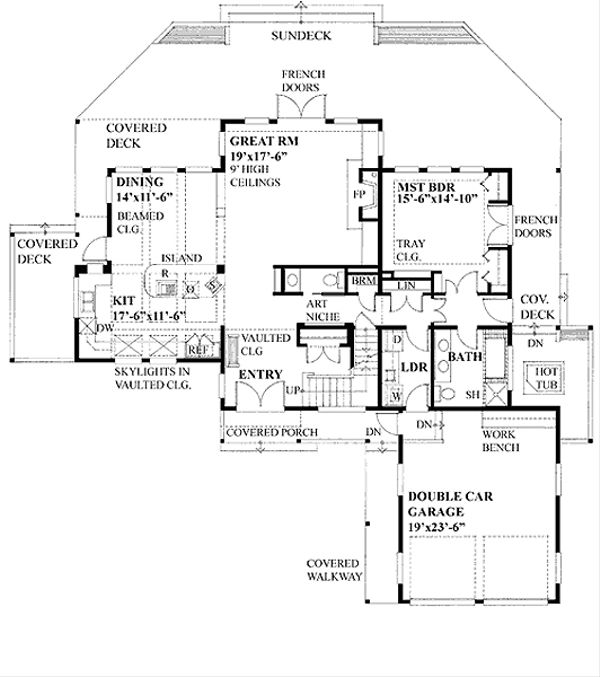

First Floor: 1584 sq/ft height 9'

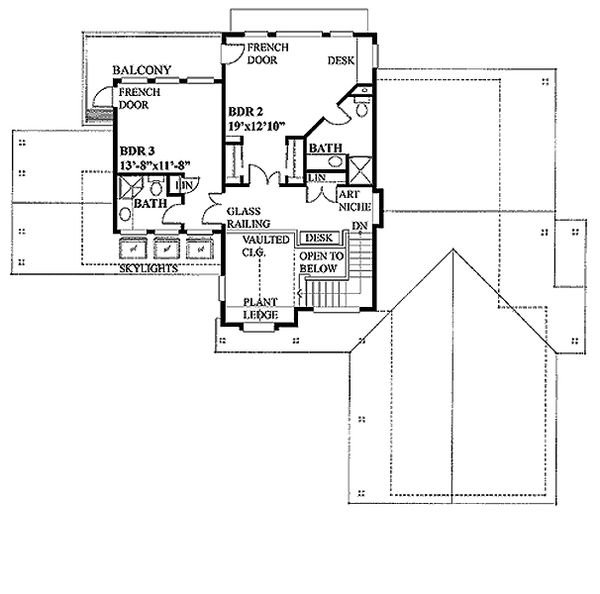

Second Floor: 1020 sq/ft height 8'
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Metal
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
161 sq/ft width 14' x depth 11' 6"
446 sq/ft width 19' x depth 23' 6"
201 sq/ft width 17' 6" x depth 11' 6"
229 sq/ft width 15' 6" x depth 14' 10"
What's Included In This Plan Set
- Cover sheet with rendering and art floor plans
- General notes and specifications
- Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
- Foundation plan at 1/4″=1′-0″
- Main floor plan at 1/4″=1′-0″
- Second floor plan at 1/4″=1′-0″, if applicable
- Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
- Electrical floor plans
- Minimum of two cross sections at 1/4″=1′-0″
- Details as required
- All four elevations at 1/4″=1′-0″
- Generic detail sheet
- Plans are engineered by a structural engineer, but not stamped or sealed
- Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
- Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
- Assumed soil bearing capacity 1560 psf
- Electrical fixtures / switches / smoke alarms by location only on floor plans
- Plumbing fixtures by location only on floor plans
- Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
