PLAN 17-2641
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This charming home has columned porches in both the front and back. To the left
of the entry are the living and dining rooms, both defined by columns. The
large open kitchen has a snack bar and breakfast area, and flows into the great
room, which has a fireplace as the focal point. The bedrooms are grouped to the
right, including two family bedrooms sharing a compartmented bath, and the
master suite with a whirlpool tub. Please specify slab or crawlspace foundation
when ordering.
Floor Plans

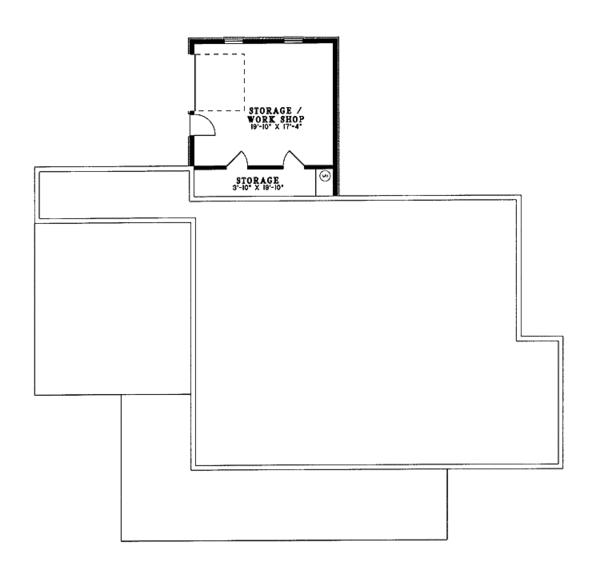

Floor Plan - Lower Floor

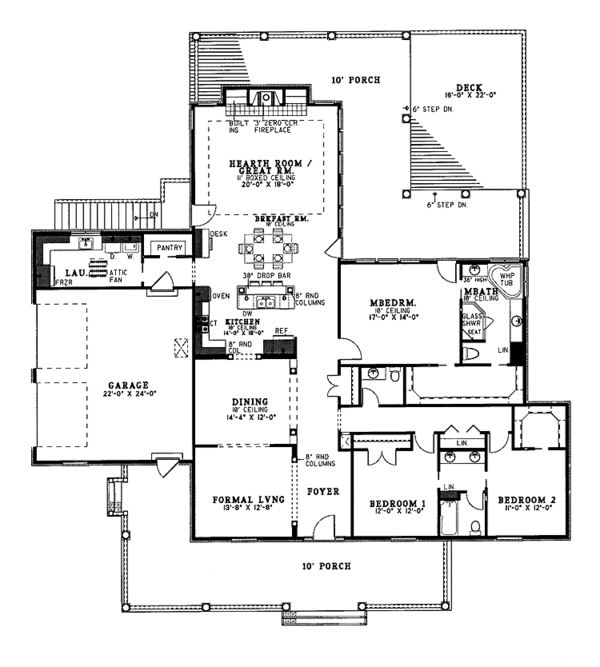

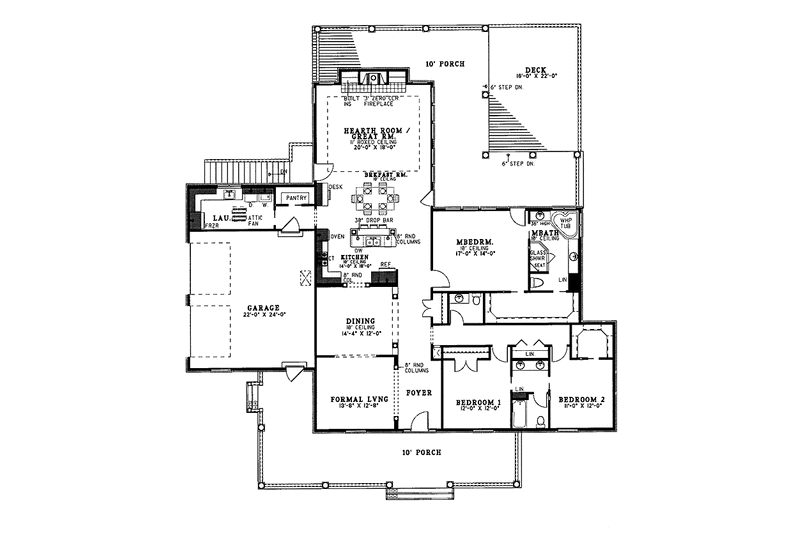

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 81'
Width : 75' 4"
Area
First Floor: 2607 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Great Room Living Room
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
Rooms
Bedroom 2:
144 sq/ft width 12' x depth 12'
Bedroom 3:
132 sq/ft width 12' x depth 11'
Breakfast Room:
216 sq/ft width 12' x depth 18'
Deck:
352 sq/ft width 22' x depth 16'
Dining Room:
171 sq/ft width 12' x depth 14' 4"
Garage:
528 sq/ft width 24' x depth 22'
Gathering Room:
360 sq/ft width 18' x depth 20'
Kitchen:
252 sq/ft width 14' x depth 18'
Living Room:
173 sq/ft width 12' 8" x depth 13' 8"
Master Bedroom:
238 sq/ft width 14' x depth 17'
Porch - Front:
460 sq/ft width 10' x depth 46'
Porch - Rear:
600 sq/ft width 10' x depth 60'
