Full Specs & Features
Depth : 81'
Height : 26'
Width : 66'
First Floor: 2628 sq/ft height 9'
Garage: 651 sq/ft
Porch: 157 sq/ft
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x6 Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Jack & Jill Bath
145 sq/ft width 13' 5" x depth 10' 10"
130 sq/ft width 12' 4" x depth 10' 7"
118 sq/ft width 11' 10" x depth 10'
134 sq/ft width 10' 7" x depth 12' 9"
254 sq/ft width 13' 7" x depth 18' 9"
318 sq/ft width 19' 6" x depth 16' 4"
242 sq/ft width 14' 5" x depth 16' 10"
221 sq/ft width 17' x depth 13'
121 sq/ft width 11' 9" x depth 10' 4"
What's Included In This Plan Set

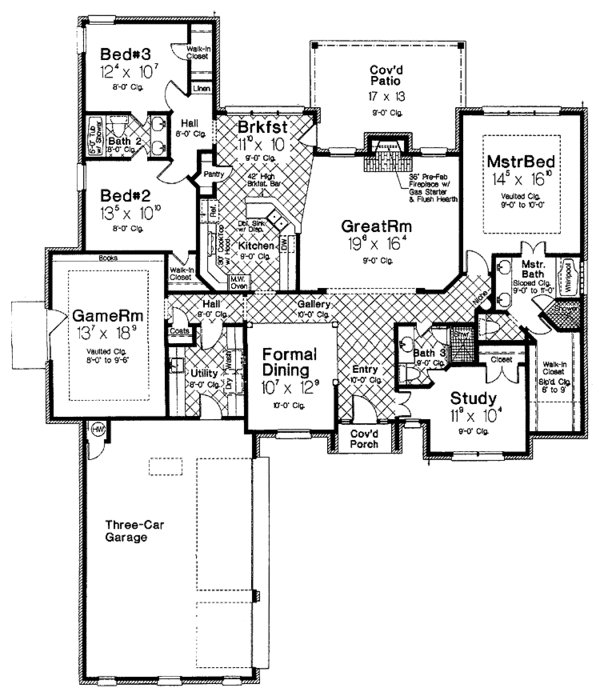

- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
