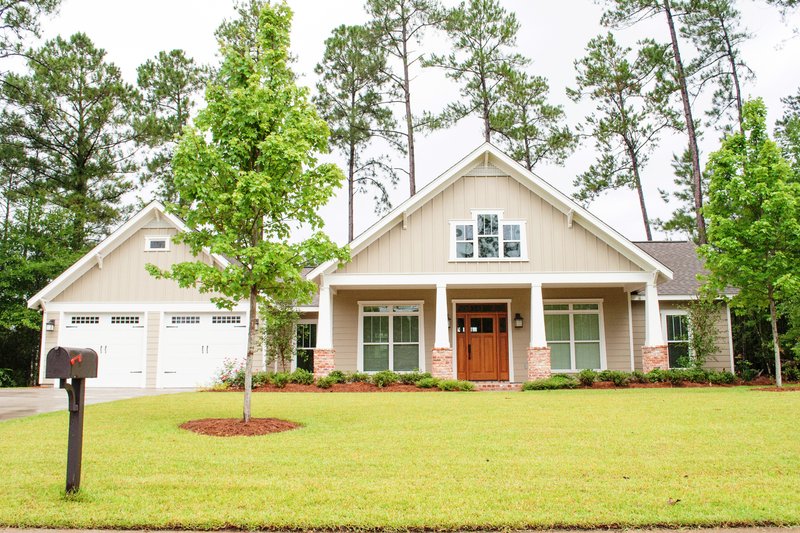

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$75.00/each
Subtotal
$1045.00
Or order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #430-104

Key Specs


2639
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


With its striking Craftsman exterior and versatile one-story layout, this plan is a winner. Inside, excellent sightlines direct your gaze all the way from the foyer to the great room's wall of windows. The relaxed layout encourages movement between the island kitchen, the great room's cozy fireplace area, and the open dining room. A flex space near the front would make a great home office. Don't miss the master suite's huge closet and one-step access to the laundry room, or the large walk-in pantry in the kitchen. Double sinks add utility in the master bathroom and the hall bath.

Floor Plans


Floor Plan - Main Floor Plan

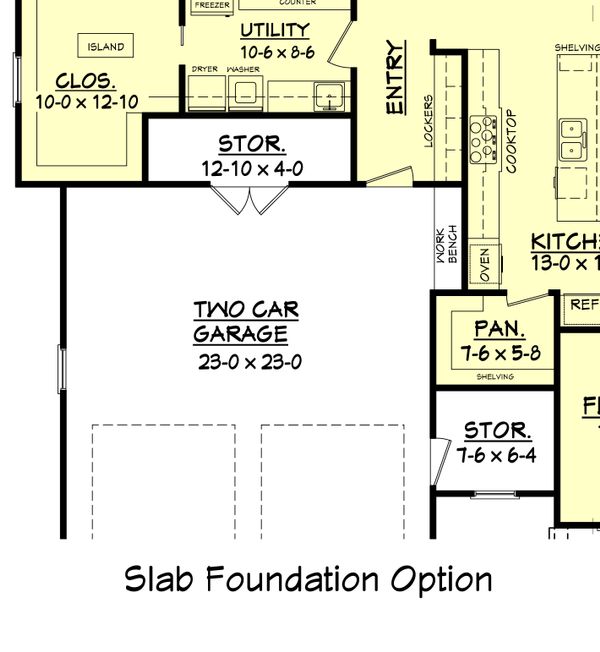

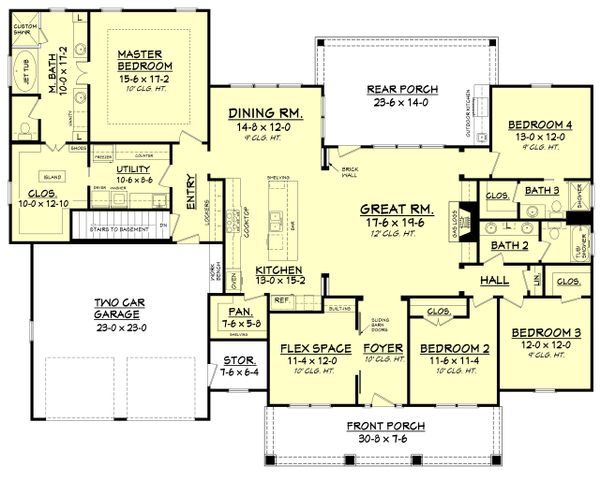

Craftsman Floor Plan - Main Floor Plan Plan #430-104
Floor Plan - Other Floor Plan
Craftsman Floor Plan - Other Floor Plan Plan #430-104

Full Specs & Features


Dimension
Depth : 60'
Height : 22'
Width : 77'
Area
Basement Unfinished: 2639 sq/ft
First Floor: 2639 sq/ft height 9'
Garage: 561 sq/ft
Storage: 50 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : stick
Roof Load : 40
Primary Pitch : 9:12
Secondary Pitch : 10:12
Roof Type : shingles
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2x4
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Hobby Rec Room Game Room
Main Floor Laundry
Play Flex Room
Storage Area
Garage Features
Front Entry Garage
Oversized Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Rooms

Basement Stairs:

56 sq/ft

Bedroom 2:

130 sq/ft width 11' 6" x depth 11' 4"

Bedroom 3:

144 sq/ft width 12' x depth 12'

Bedroom 4:

156 sq/ft width 13' x depth 12'

Covered Front Porch:

230 sq/ft width 30' 8" x depth 7' 6"

Covered Rear Porch:

316 sq/ft width 23' 6" x depth 14'

Dining Room:

176 sq/ft width 14' 8" x depth 12'

Flex Room:

136 sq/ft width 11' 4" x depth 12'

Garage:

561 sq/ft width 23' x depth 23'

Great Room:

341 sq/ft width 17' 6" x depth 19' 6"

Kitchen:

197 sq/ft width 13' x depth 15' 2"

Master Bath:

172 sq/ft width 10' x depth 17' 2"

Master Bedroom:

266 sq/ft width 15' 6" x depth 17' 2"

Master Closet:

128 sq/ft width 10' x depth 12' 10"

Mud room:

width 6' 8" x depth 8'

Pantry:

43 sq/ft width 7' 6" x depth 5' 8"

Storage:

50 sq/ft width 7' 6" x depth 6' 4"

Utility Room:

89 sq/ft width 10' 6" x depth 8' 6"
