PLAN 1066-106
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 77'
Height : 27' 2"
Width : 25'
Area
Decks : 208 sq/ft
Garage : 418 sq/ft
Main Floor : 1240 sq/ft
Porch : 25 sq/ft
Upper Floor : 1407 sq/ft
Ceiling
Ceiling Details : Entry foyer ceiling is open to above.
Garage Ceiling : 11' 6"
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 2/12
Roof Framing : Raftors
Roof Load : 50 PSF
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Siding and Panels
Framing : 2X6
Insulation : R21
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Family Room Keeping Room
Loft
Upstairs Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Balcony
Covered Front Porch
Grill Deck Sundeck
More
Unusual Shape
What's Included In This Plan Set
- Cover Sheet: 3D Rendering and Project Information.
- General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).

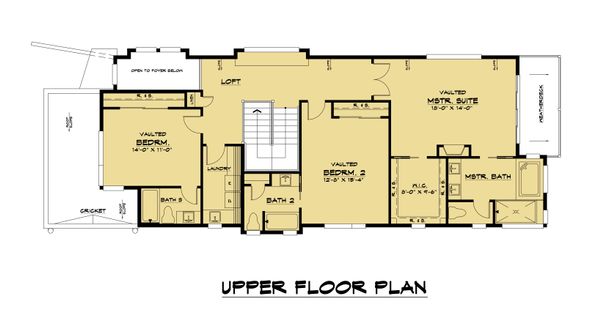

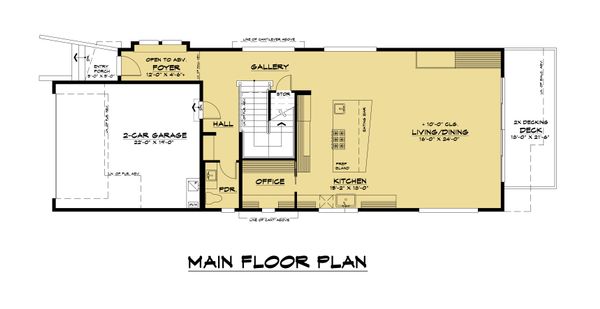

- Floor Plans (lower, main, upper, etc.) showing all doors and windows.
- Elevations from all four sides showing material callouts.
- Wall framing and sectional detail sheets.
- Building Cross Sections showing stair and ceiling height details.
- Window and Door schedule.
- Overhead roof plan showing peaks, valleys, and pitch.
- Foundation Plan showing perimeter and footing details.
- Misc. notes and details.
