If you're looking for something a little different from the rest, this dramatic
home may end your search. A two-story foyer introduces a volume living room and
a dining room. The kitchen shares space with the breakfast room. The family
room enjoys access to a terrace while maintaining great indoor livability with
its see-through fireplace and volume ceiling. The master bedroom offers a
pampering bath. The sleeping accommodations are complete with three bedrooms
upstairs.
Floor Plans

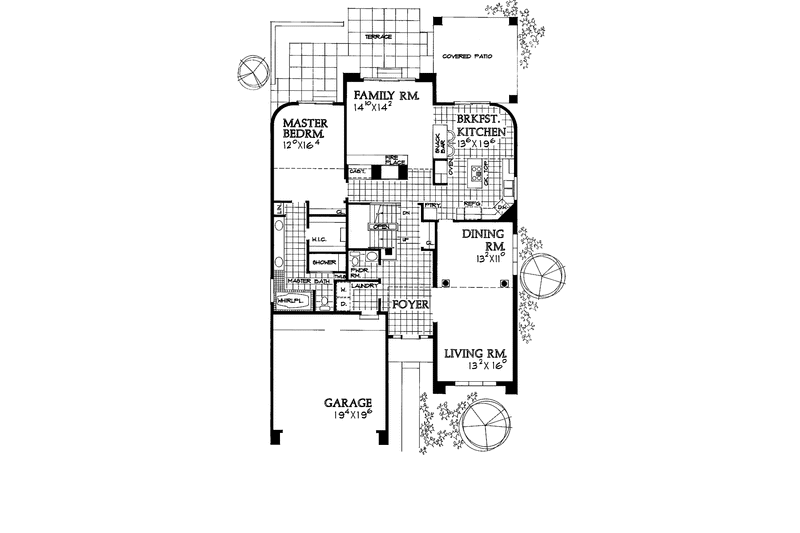

Floor Plan - Main Floor

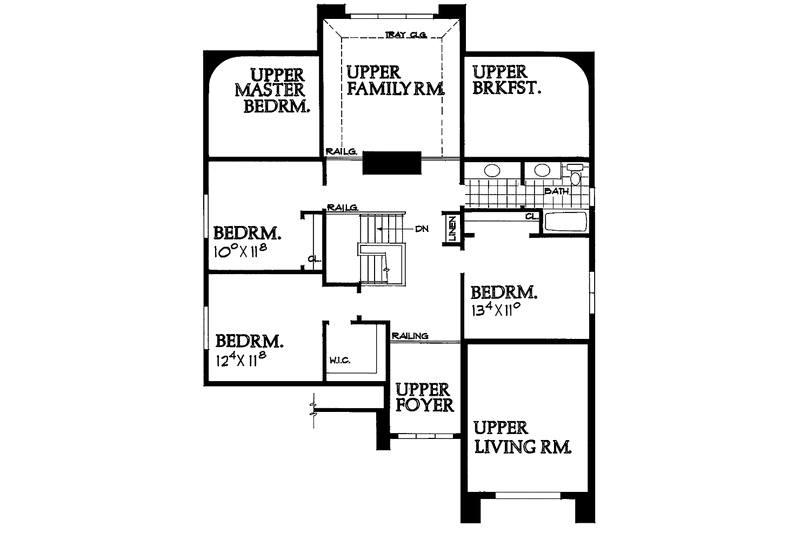

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 72' 8"
Height : 29'
Width : 42'
Area
First Floor: 1776 sq/ft height 8'
Second Floor: 876 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
Dining Room:
144 sq/ft width 11' x depth 13' 2"
Gathering Room:
210 sq/ft width 14' 2" x depth 14' 10"
Kitchen:
263 sq/ft width 19' 6" x depth 13' 6"
Living Room:
210 sq/ft width 16' x depth 13' 2"
Master Bathroom:
49 sq/ft width 7' x depth 7'
Master Bedroom:
195 sq/ft width 16' 4" x depth 12'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

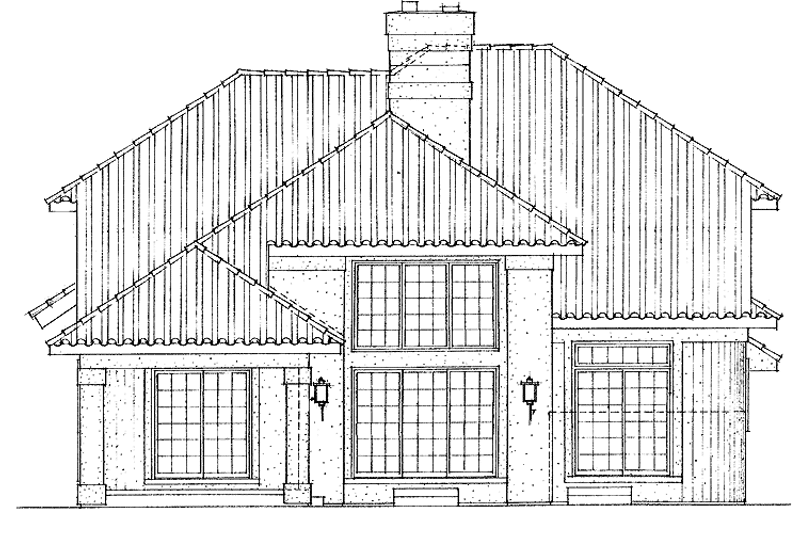

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
