Full Specs & Features
Depth : 58'
Height : 32'
Width : 60'

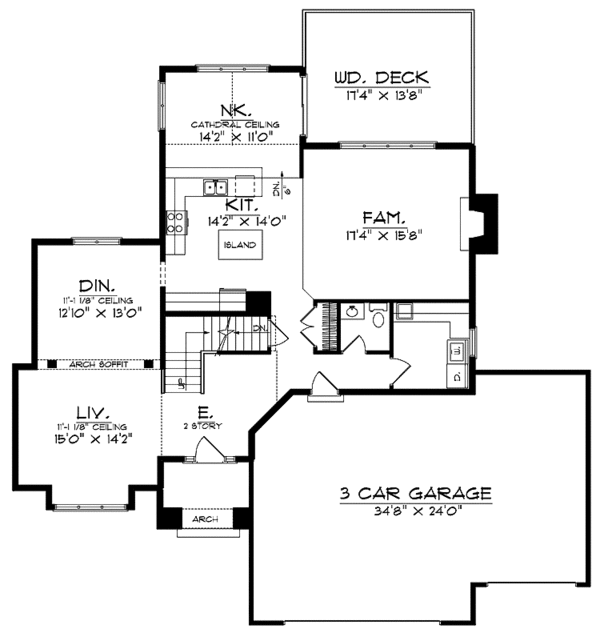

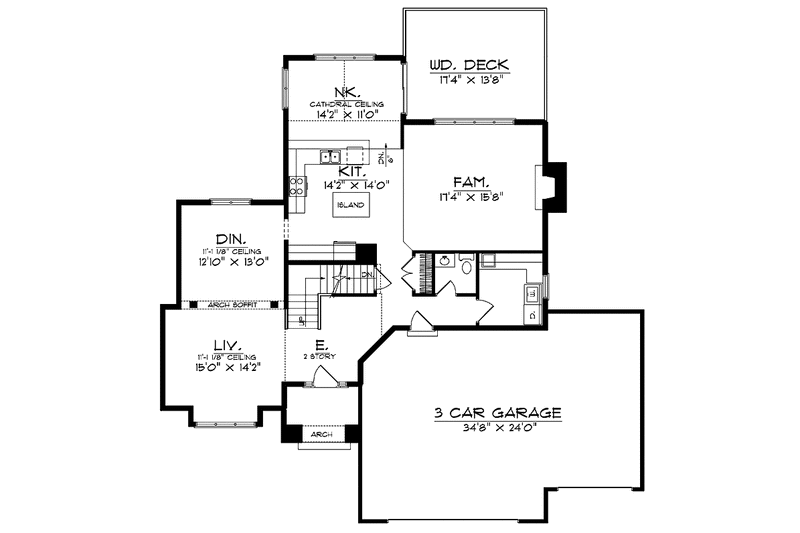

First Floor: 1424 sq/ft height 9'

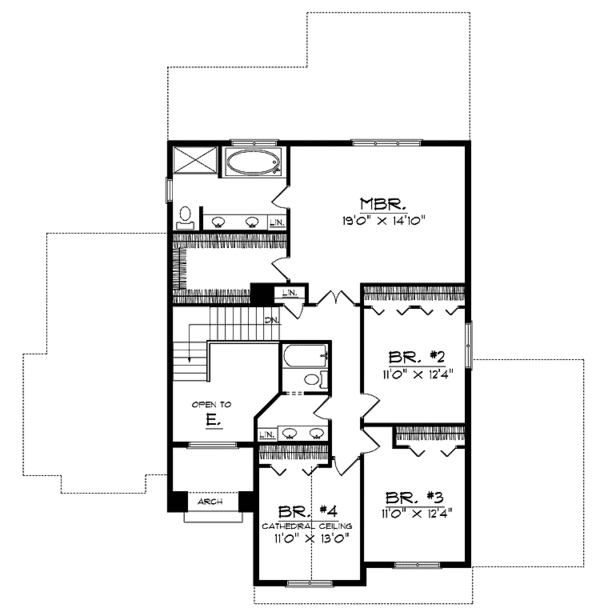

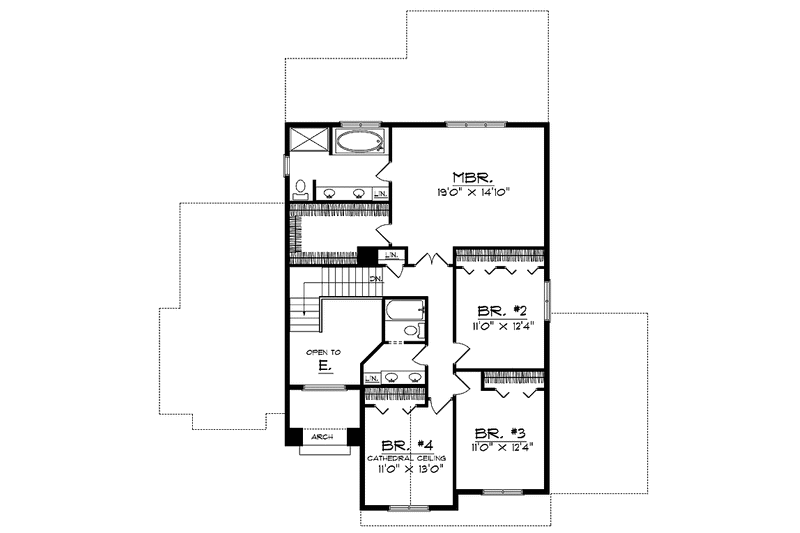

Second Floor: 1233 sq/ft
Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Formal Dining Room
Formal Living Room / Parlor
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
