PLAN 137-290

Photographs may show modified designs.

Home Plan - Traditional Photo Plan #137-290

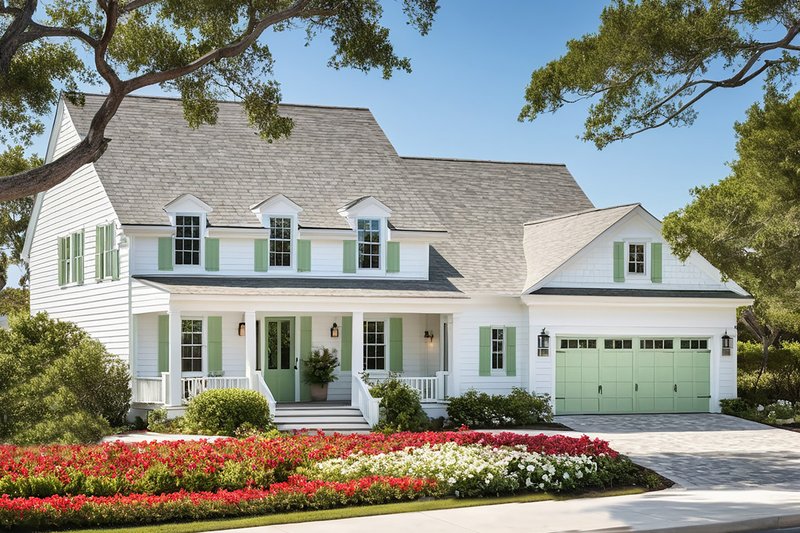

Home Plan - Traditional, Front Elevation

Home Plan - Traditional Floor Plan - Main Floor Plan #137-290

Home Plan - Traditional Floor Plan - Upper Floor Plan #137-290

Jump to:
All (5)
Exterior (1)
Floor plans (2)
Photo (2)

Get Personalized Help

Home > Style > Traditional

Key Specs

2657
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$46.75/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$46.75

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$800.00 NOW $680.00

You save $120.00 (15% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBFALL

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 137-290

Home > Style > Traditional

Key Specs

2657
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 2657 sq ft and has 4 bedrooms and 3.5 bathrooms.

Floor Plans

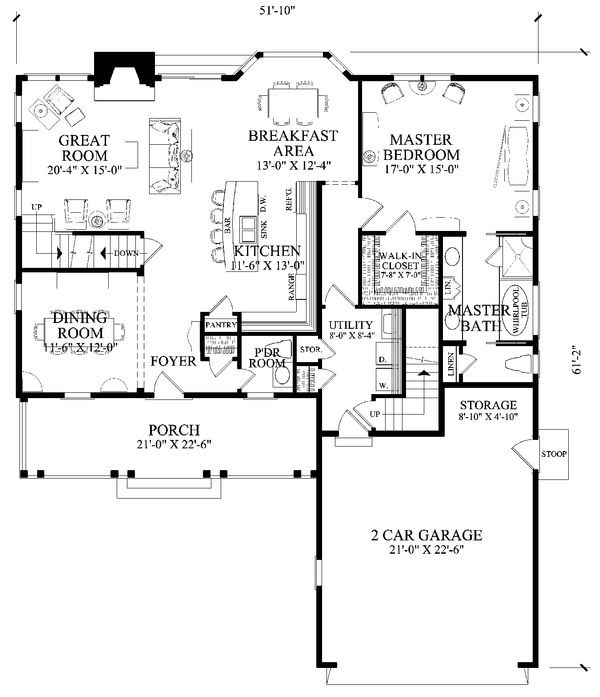

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

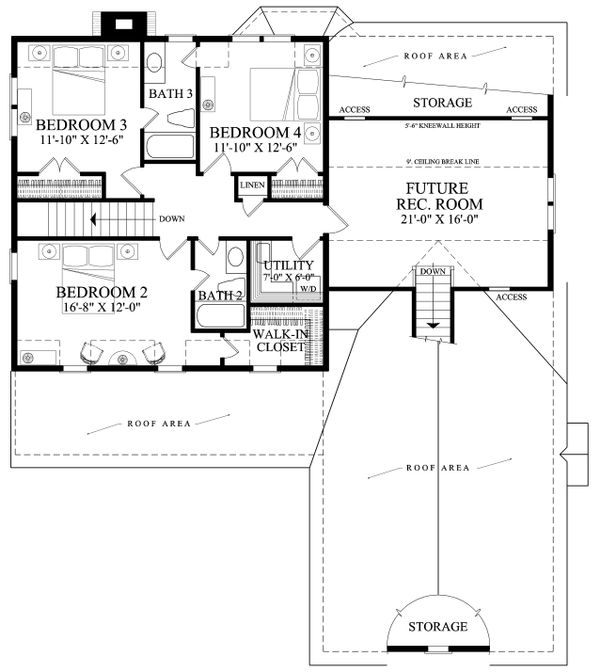

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 61' 2"

Height : 33'

Width : 51' 10"

Area

Bonus: 351 sq/ft

First Floor: 1720 sq/ft height 9'

Garage: 551 sq/ft

Second Floor: 937 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Roof Framing : Stick

Roof Type : Asphalt, Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood

Bedroom Features

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Great Room Living Room

Main Floor Laundry

Storage Area

Garage Features

Front Entry Garage

Rooms

Bedroom 2:

200 sq/ft width 16' 8" x depth 12'

Bedroom 3:

149 sq/ft width 11' 10" x depth 12' 6"

Bedroom 4:

149 sq/ft width 11' 10" x depth 12' 6"

Breakfast Area:

160 sq/ft width 14' 1" x depth 12' 4"

Covered Front Porch:

236 sq/ft width 29' 6" x depth 8'

Dining Room:

138 sq/ft width 11' 6" x depth 12'

Garage:

511 sq/ft width 21' x depth 22' 6"

Garage Storage:

width 8' 10" x depth 4' 10"

Great Room:

305 sq/ft width 20' 4" x depth 15'

Kitchen:

150 sq/ft width 11' 6" x depth 13'

Master Closet:

54 sq/ft width 7' 8" x depth 7'

Master Bedroom:

255 sq/ft width 17' x depth 15'

Optional Bonus Room:

351 sq/ft width 21' x depth 16'

Upper Utility Room:

42 sq/ft width 7' x depth 6'

Utility Room:

67 sq/ft width 8' x depth 8' 4"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Plans are typically drawn to ¼” scale and include:

Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Rendering(s): Designer’s rendering of front elevation

Questions? Call 1-888-447-1946

Plan Set

5 Copy Set:
$680.00

5 printed plan sets mailed to you.

8 Copy Set:
$743.75

8 printed plan sets mailed to you.

PDF Set:
$935.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$935.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Single Set:
$595.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Additional Construction Sets:
$46.75

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$46.75

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
