Full Specs & Features
Depth : 46'
Width : 71'
First Floor: 1781 sq/ft height 9'
Second Floor: 897 sq/ft height 9'
Roof Framing : Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle/Siding
Framing : Wood - 2x4
Formal Dining Room
Walk In Closet
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
182 sq/ft width 13' 8" x depth 13' 4"
150 sq/ft width 12' x depth 12' 6"
171 sq/ft width 13' 2" x depth 13'
132 sq/ft width 12' x depth 11'
133 sq/ft width 13' 10" x depth 9' 8"
189 sq/ft width 14' x depth 13' 6"
572 sq/ft width 26' x depth 22'
159 sq/ft width 13' 10" x depth 11' 6"
250 sq/ft width 13' 2" x depth 19'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

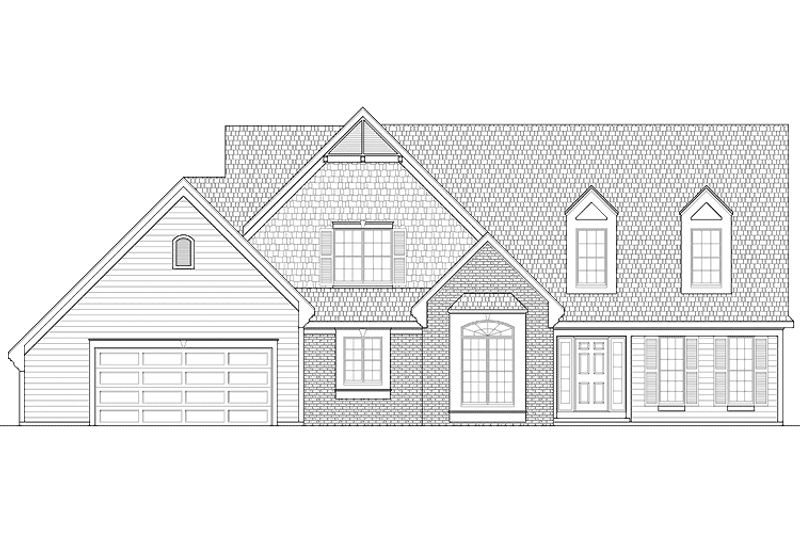

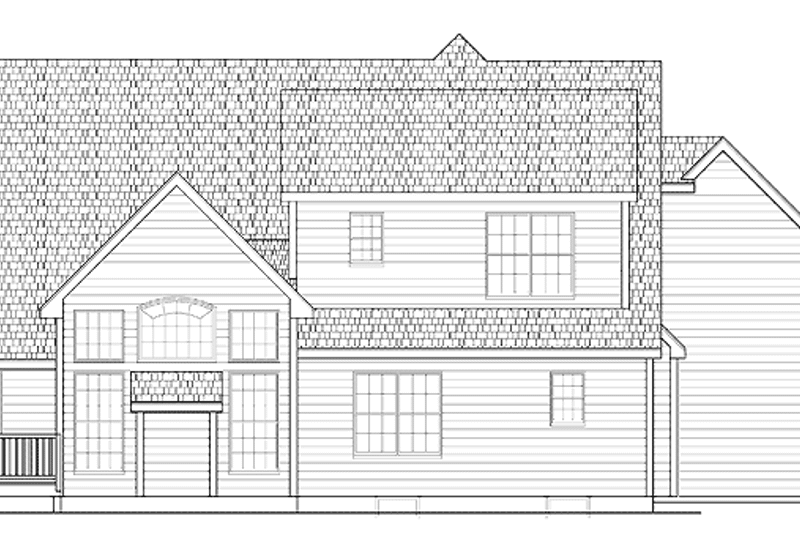

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

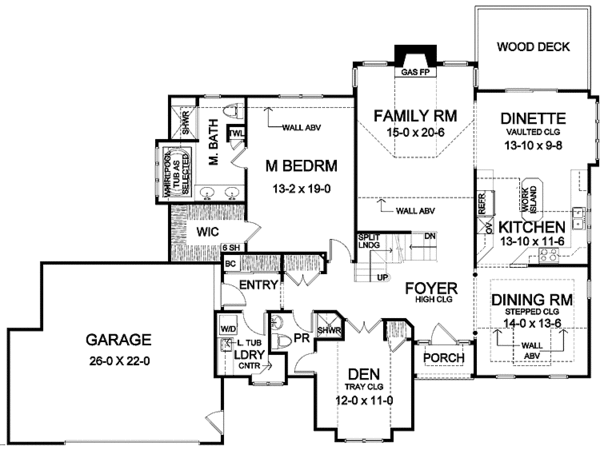

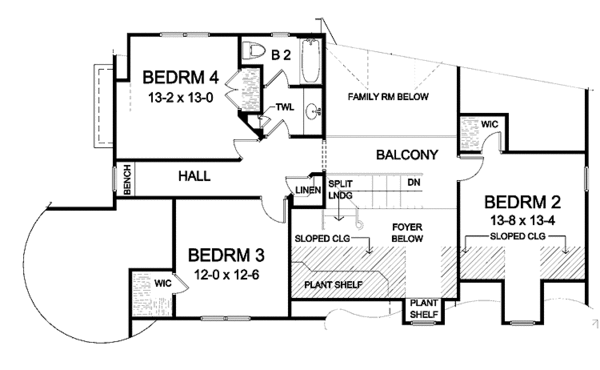

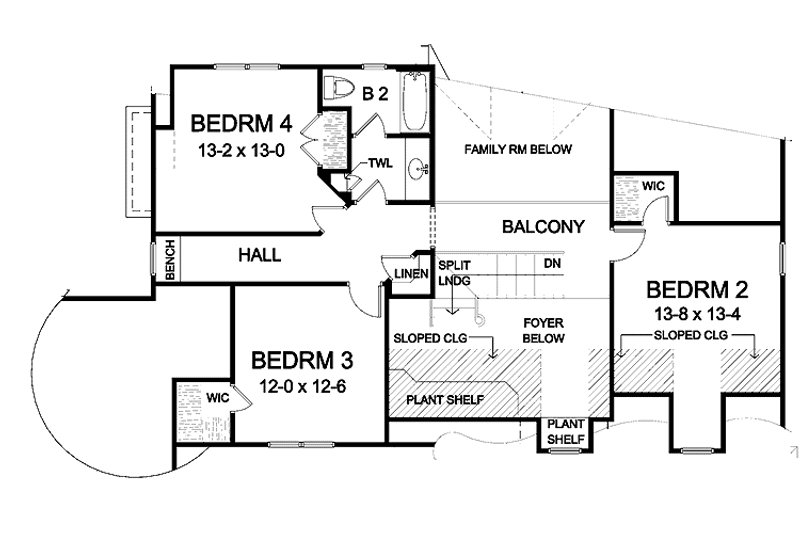

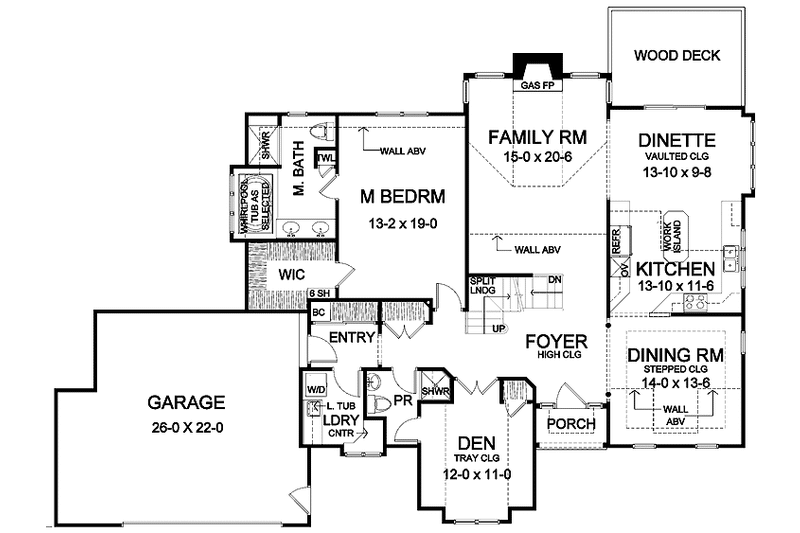

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
