Full Specs & Features
Depth : 53'
Height : 30'
Width : 62'
Basement Unfinished: 1383 sq/ft

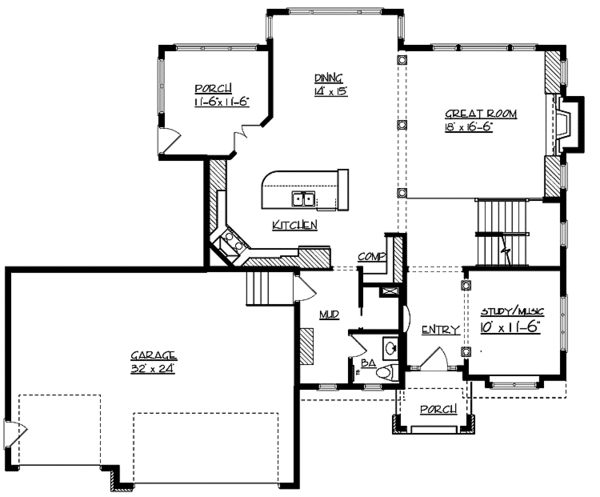

First Floor: 1490 sq/ft
Garage: 700 sq/ft

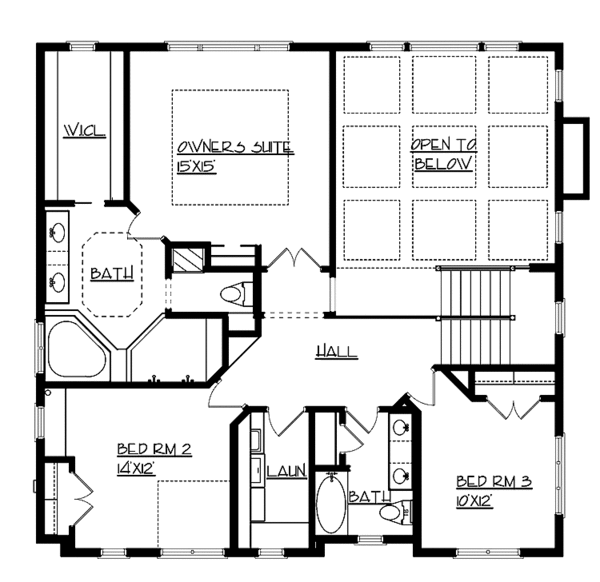

Second Floor: 1189 sq/ft
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : Wood - 2x6
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Covered Front Porch
Covered Rear Porch
168 sq/ft width 14' x depth 12'
120 sq/ft width 10' x depth 12'
210 sq/ft width 14' x depth 15'
768 sq/ft width 32' x depth 24'
297 sq/ft width 18' x depth 16' 6"
225 sq/ft width 15' x depth 15'
Porch - Rear:
132 sq/ft width 11' 6" x depth 11' 6"
115 sq/ft width 10' x depth 11' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
