PLAN 406-261
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

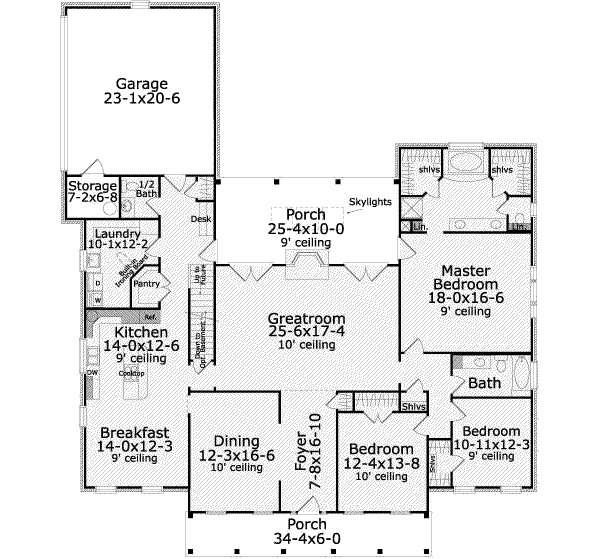

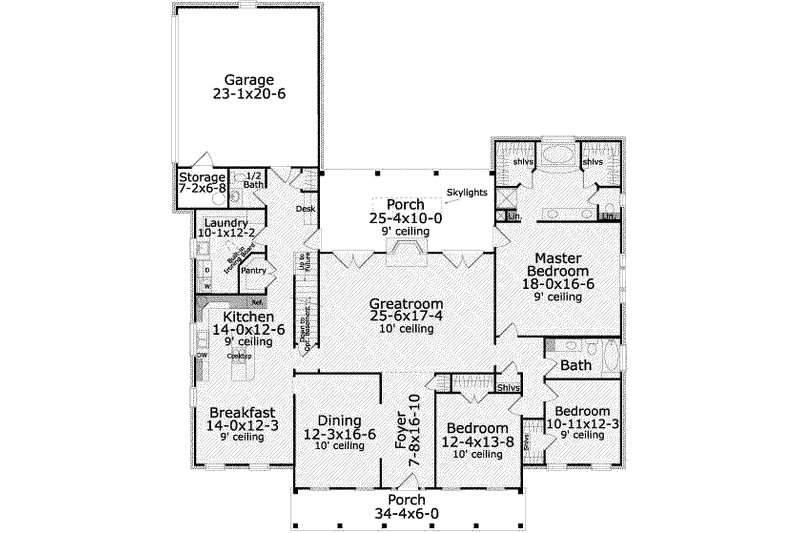

Floor Plan - Main Floor

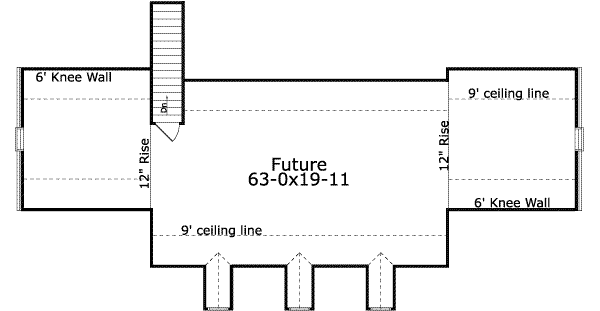

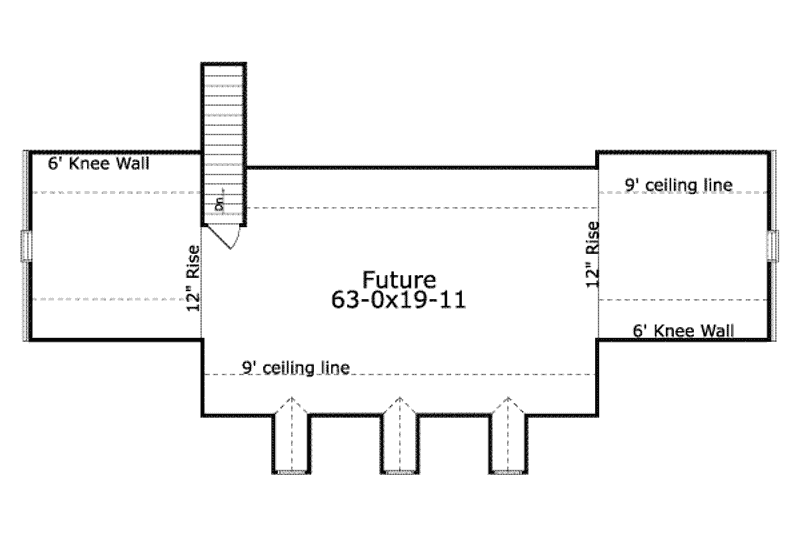

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 77' 4"
Height : 28'
Width : 66' 4"
Area
Bonus: 1219 sq/ft
First Floor: 2683 sq/ft
Garage: 528 sq/ft
Storage: 54 sq/ft
Roof
Primary Pitch : 11:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
62 sq/ft width 5' 9" x depth 10' 11"
Bedroom 2:
133 sq/ft width 10' 11" x depth 12' 3"
Bedroom 2 Closet:
19 sq/ft width 6' 5" x depth 3'
Bedroom 3:
168 sq/ft width 12' 4" x depth 13' 8"
Bedroom 3 Closet:
15 sq/ft width 6' 1" x depth 2' 6"
Breakfast Room:
171 sq/ft width 14' x depth 12' 3"
Dining Room:
202 sq/ft width 12' 3" x depth 16' 6"
Foyer:
122 sq/ft width 7' 5" x depth 16' 6"
Garage:
473 sq/ft width 23' 1" x depth 20' 6"
Garage Storage:
46 sq/ft width 7' 2" x depth 6' 6"
Gathering Room:
441 sq/ft width 25' 6" x depth 17' 4"
Kitchen:
175 sq/ft width 14' x depth 12' 6"
Kitchen Island:
24 sq/ft width 7' 6" x depth 3' 4"
Laundry Room:
122 sq/ft width 10' 1" x depth 12' 2"
Master Bathroom:
208 sq/ft width 18' x depth 11' 7"
Master Bedroom:
297 sq/ft width 18' x depth 16' 6"
Master Closet:
35 sq/ft width 5' 6" x depth 6' 5"
Master Closet Two:
35 sq/ft width 5' 6" x depth 6' 5"
Pantry:
21 sq/ft width 3' 8" x depth 5' 9"
Porch - Front:
253 sq/ft width 29' x depth 8' 9"
Porch - Rear:
253 sq/ft width 25' 4" x depth 10'
Powder Room:
29 sq/ft width 5' 2" x depth 5' 8"
What's Included In This Plan Set
- Cover Sheet: Outlines the design criteria and construction notes, such as general site, foundation, framing, and mechanical notes
- Foundation Plan(s): The foundation of your choice (slab or crawlspace - fee may apply)
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

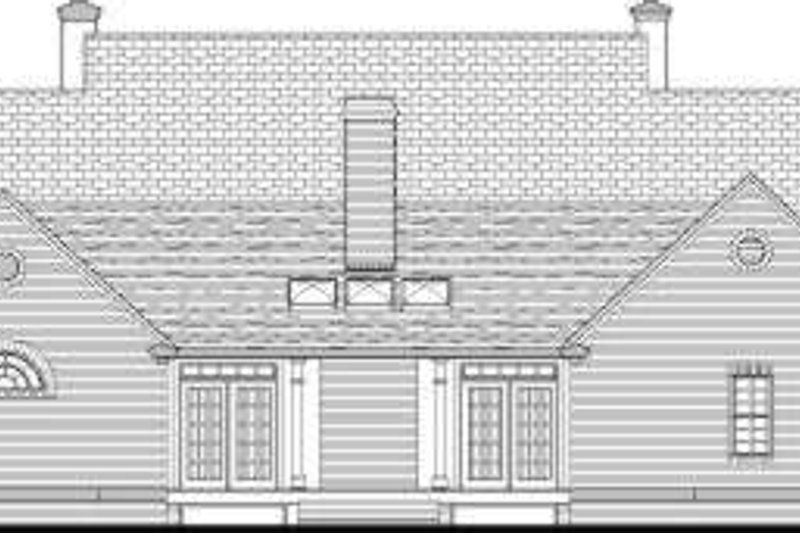

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Kitchen Cabinet Elevation(s): Detailed drawings of kitchen cabinet elevations.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$1410.00
$1760.00
$1935.00
$2365.00
Foundation
$0.00
$350.00
$350.00
Framing
$0.00
Additional Options
$300.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
