Full Specs & Features
Depth : 72' 8"
Height : 24' 4"
Width : 92'
Garage : 1422 sq/ft

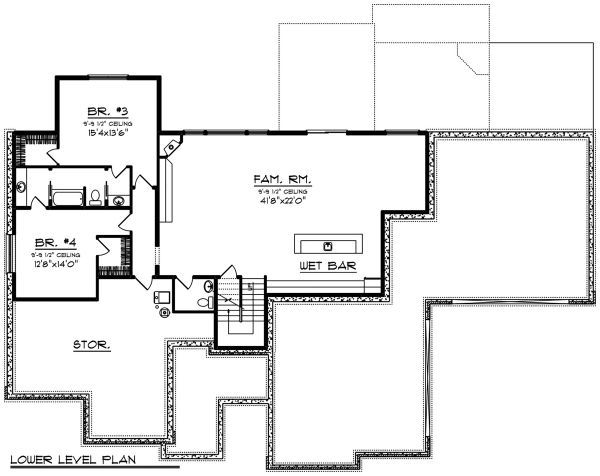

Lower Floor : 1712 sq/ft

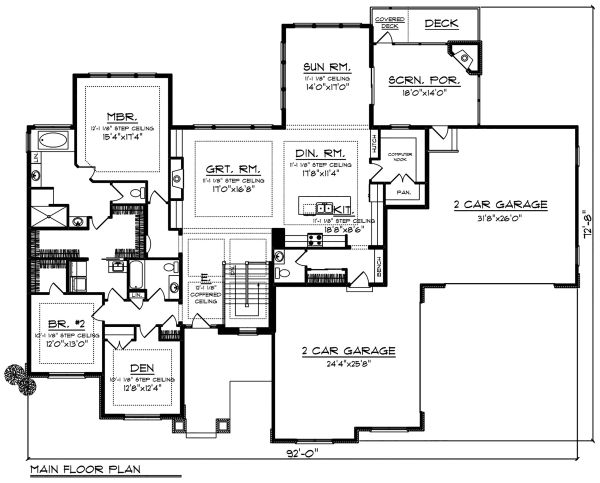

Main Floor : 2694 sq/ft
Ceiling Details : Kitchen, Dining Rm & Grt Rm 11' Step. Entry 12'. Master Bdrm 12' Step. Bdrm #2 & Den 10' Step. Sun Rm 11'.
Lower Ceiling : 9' 9"
Primary Pitch : 7:12
Roof Framing : Truss
Roof Load : 47 psf
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Stone, Shake, Horizontal Siding
Framing : 2x6
Insulation : R-20/R-49
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Suited For Sloping Lot
Covered Front Porch
Covered Rear Porch
Additional Half Bath
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
