PLAN 84-572

Select Plan Set Options

What's included?
Additional Construction Sets
$60.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$60.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
$885.00
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 84-572

Key Specs


2695
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Great for entertaining, this open floor plan has a large back porch, large family & kitchen with eat-at bar. Executive master suite has a bayed reading niche, 2 vanities, walk-in shower & oversized closet. Generous closet space & rear foyer with storage is perfect for school aged kids. Stone & cedar detailing dress up the rich elevation.

Floor Plans

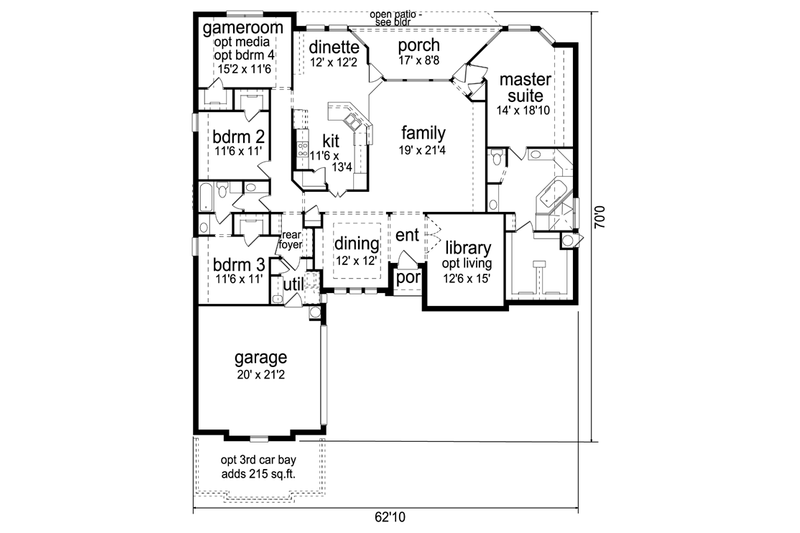

Floor Plan - Main Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 70'
Height : 27' 8"
Width : 62' 10"
Area
First Floor: 2695 sq/ft height 10'
Garage: 467 sq/ft height 10'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Master, Family, Kitchen, Dinette, Library, Gameroom = 10'Bdrms 2 & 3 slopes to 9'Dining = 10' TierGarage - 8'
Garage Ceiling : 8'
Main Ceiling : 10'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : gables
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : brick, stone
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms

Bedroom 2:

width 11' 6" x depth 11'

Bedroom 3:

width 11' 6" x depth 11'

Dinette:

width 12' x depth 12' 2"

Dining:

width 12' x depth 12'

Family Room:

width 19' x depth 21' 4"

Gameroom:

width 15' 2" x depth 11' 6"

Garage:

width 20' x depth 21' 2"

Kitchen:

width 11' 6" x depth 13' 4"

Library:

width 12' 6" x depth 15'

Master Bedroom:

width 14' x depth 18' 10"

Porch Front:

21 sq/ft

Porch Rear:

157 sq/ft width 17' x depth 8' 8"

What's Included In This Plan Set


See a sample plan set
  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

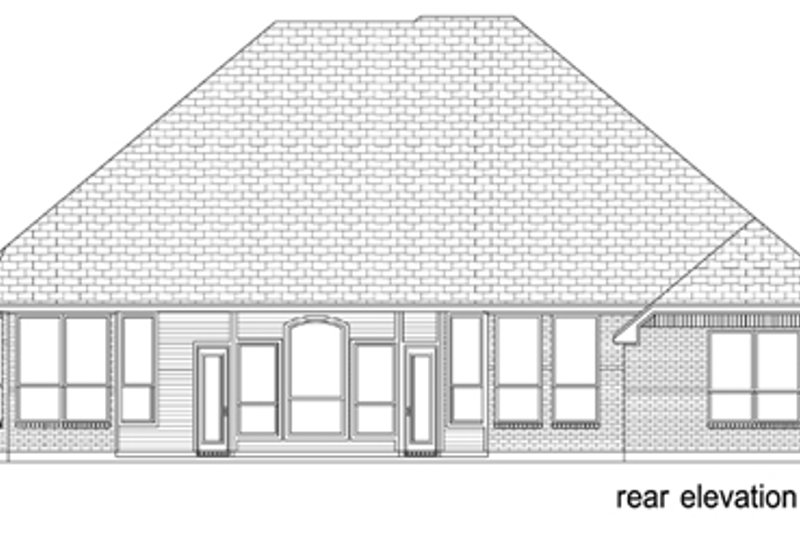

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.

Plan Set

5 Copy Set :
$885.00
5 printed plan sets mailed to you.
8 Copy Set :
$960.00
8 printed plan sets mailed to you.
PDF Set :
$1075.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1130.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1865.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$825.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$60.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
