PLAN 943-28
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
Don't miss the fabulous master suite in this handsome Craftsman plan; besides the generous bedroom, a well-appointed bath boasts a large corner shower, dual vanities, and a huge walk-in closet. Other highlights of the home include the open kitchen/breakfast nook and family room area downstairs, with the semi-private dining room and living space on the left. A quiet den down here and three additional bedrooms upstairs complete the plan.
Full Specs & Features
Dimension
Depth : 39' 6"
Height : 25' 9"
Width : 59' 6"
Height : 25' 9"
Width : 59' 6"
Area
First Floor: 1359 sq/ft
Garage: 816 sq/ft
Porch: 141 sq/ft
Second Floor: 1356 sq/ft
Garage: 816 sq/ft
Porch: 141 sq/ft
Second Floor: 1356 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Composition
Roof Framing : Truss
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Family Room Keeping Room
Rooms
Bedroom 1:
144 sq/ft width 10' 2" x depth 14' 2"
Bedroom 2:
115 sq/ft width 10' 4" x depth 11' 2"
Bedroom 3:
122 sq/ft width 10' 8" x depth 11' 6"
Breakfast:
74 sq/ft width 6' 10" x depth 10' 10"
Den:
198 sq/ft width 11' 8" x depth 17'
Dining Room:
129 sq/ft width 9' 6" x depth 13' 8"
Family Room:
277 sq/ft width 16' 4" x depth 17'
Living Room:
187 sq/ft width 12' 6" x depth 15'
Master Bedroom:
330 sq/ft width 15' 6" x depth 21' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

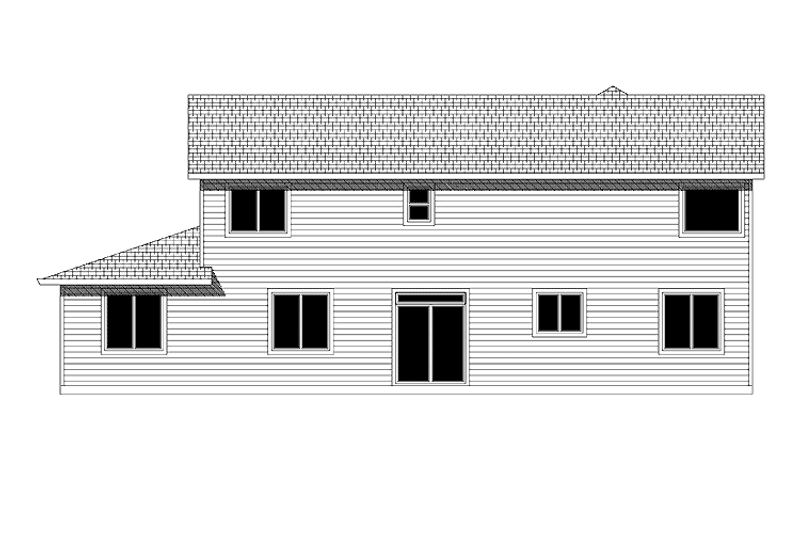

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

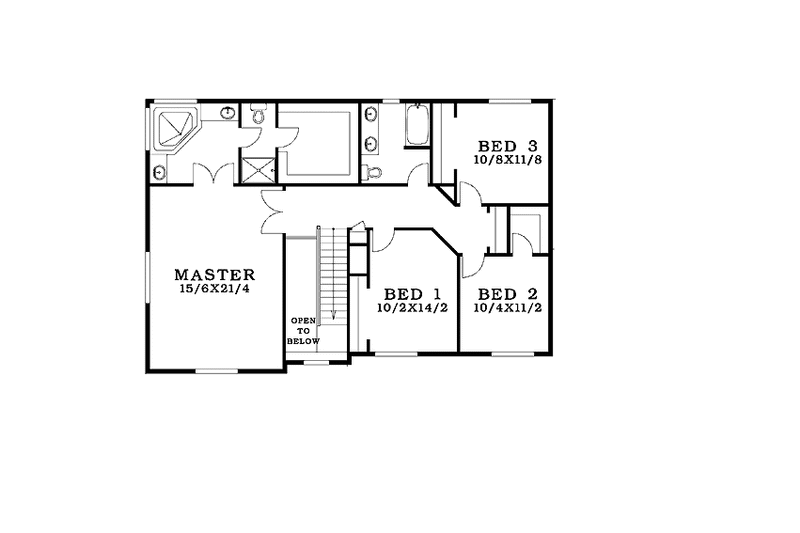

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-888-447-1946
Plan Set
| 5 Copy Set : $861.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $936.00 |
8 printed plan sets mailed to you. |
| PDF Set : $1050.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $1103.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $1822.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set : $807.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Stem Wall Foundation: $0.00 |
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $175.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets : $55.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
