PLAN 36-494

Select Plan Set Options

What's included?
Additional Construction Sets
$50.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$25.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
$675.00
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 36-494

Key Specs


2720
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Floor Plans

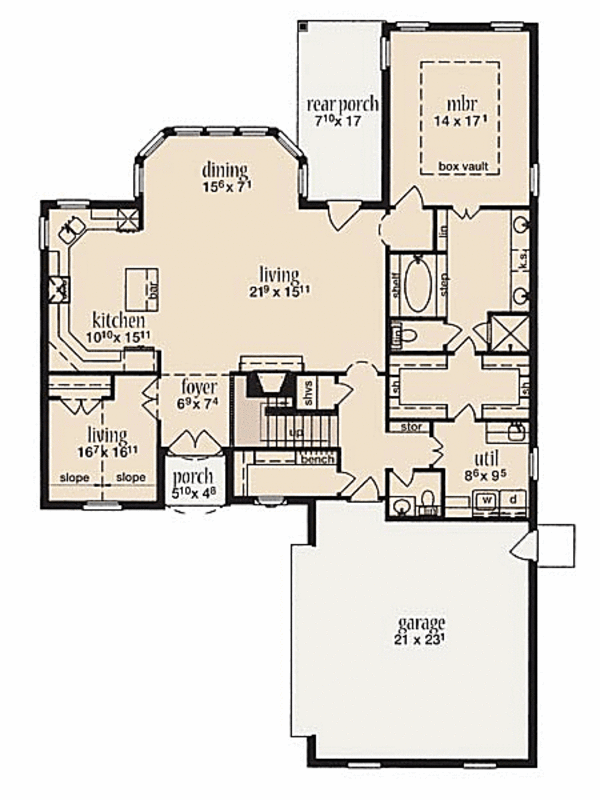

Floor Plan - Main Floor Plan
Reverse
European Floor Plan - Main Floor Plan Plan #36-494

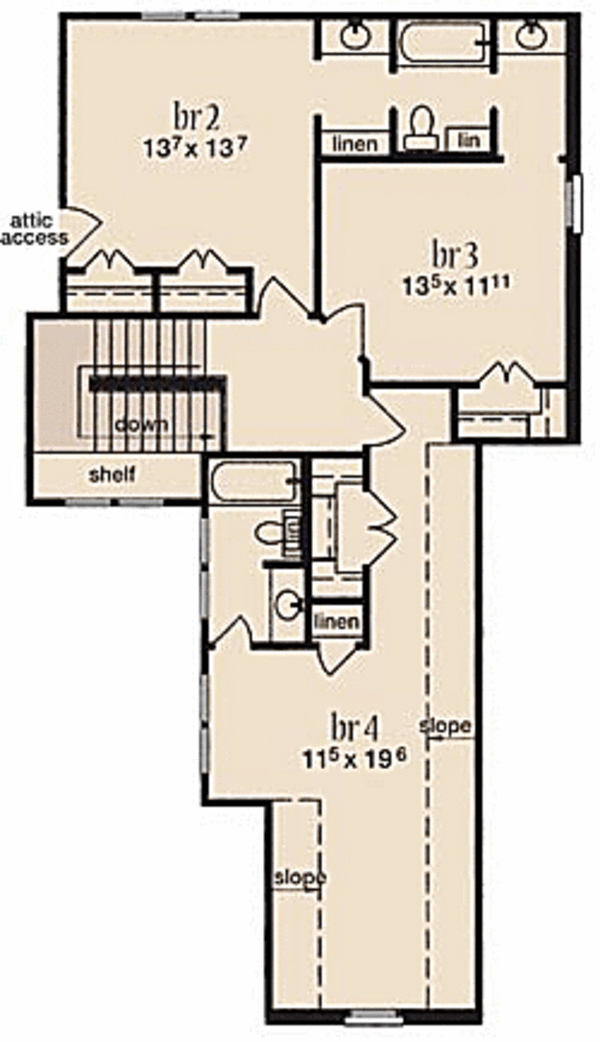

Floor Plan - Upper Floor Plan
Reverse
European Floor Plan - Upper Floor Plan Plan #36-494

Full Specs & Features


Dimension
Depth : 70' 10"
Height : 28' 3"
Width : 47' 7"
Area
First Floor: 1643 sq/ft height 10'
Garage: 498 sq/ft
Porch: 157 sq/ft
Second Floor: 972 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 14:12
Roof Framing : Conventional
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Additional Room Features
Family Room Keeping Room
Mud Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath

What's Included In This Plan Set


  • Floor plan with dimensions.
  • Electrical layout showing fixtures and switches, but not circuits. This is on the floor plan on older plans.
  • Elevations from all 4 sides and top.
  • Framing details including cornices and at least one section.
  • Foundation with footing details. Plumbing is repeated on slab foundation.
» See important information before purchasing.

Plan Set

5 Copy Set :
$675.00
5 printed plan sets mailed to you.
8 Copy Set :
$775.00
8 printed plan sets mailed to you.
Reproducible Set :
$775.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$25.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
