Construction Engineering Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Depth : 73'
Height : 26'
Width : 108'
First Floor: 2760 sq/ft height 9'
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Walk In Closet
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Master Sitting Area
Side Entry Garage
Friend S Entry
Suited For Corner Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Jack & Jill Bath
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

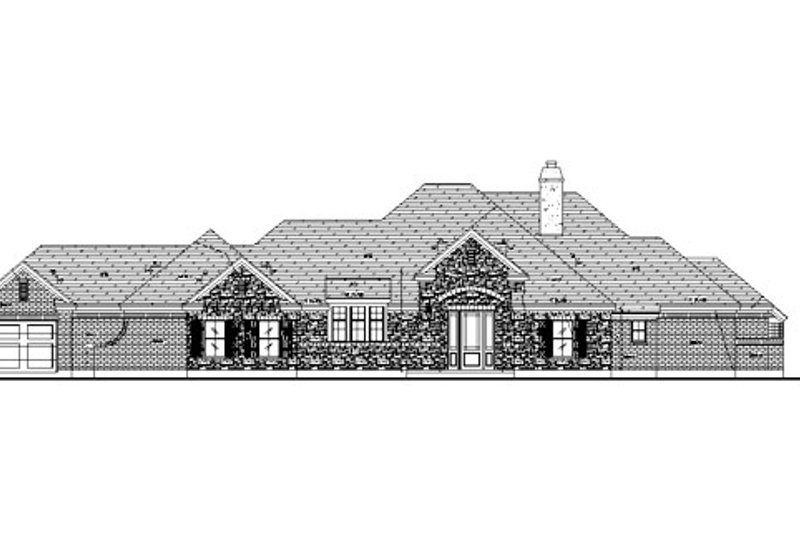

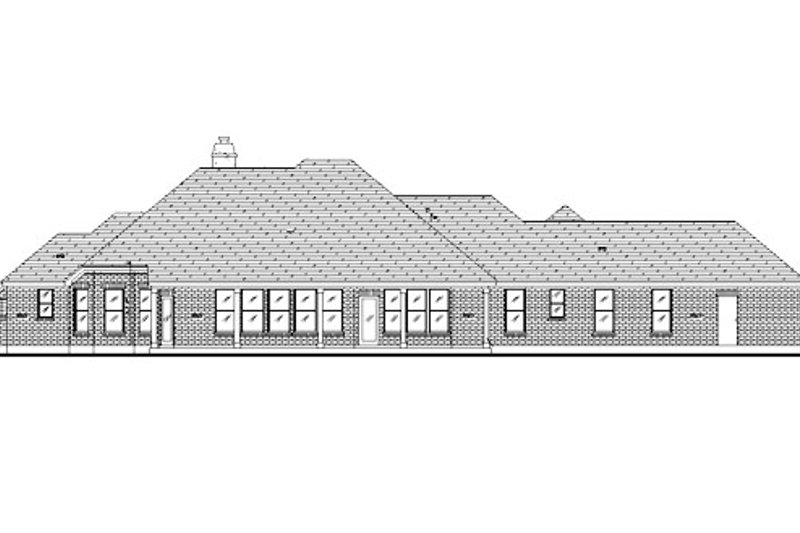

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

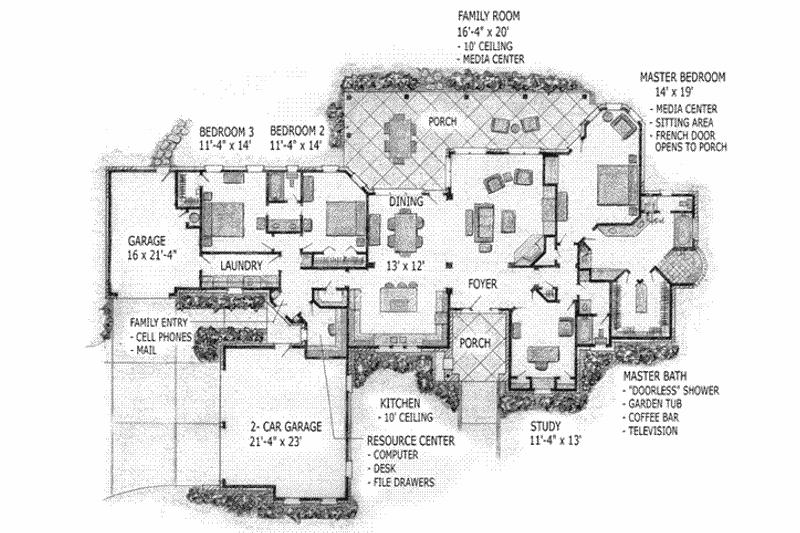

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
