PLAN 119-260

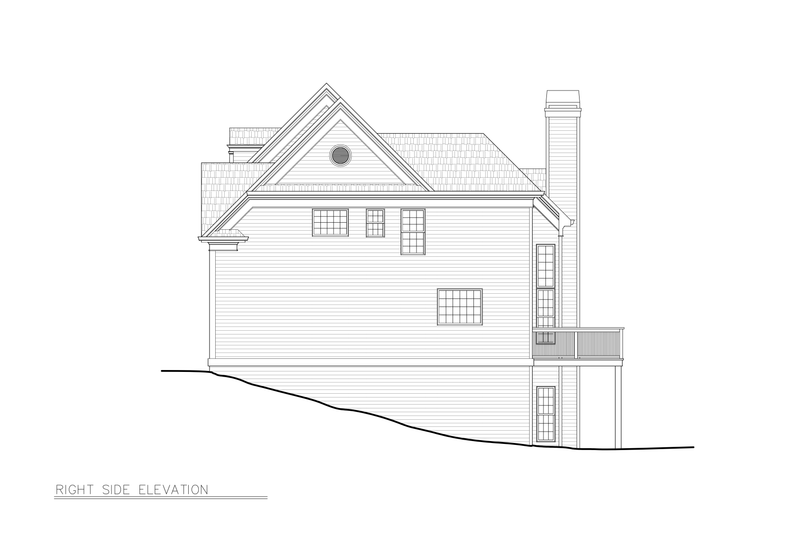

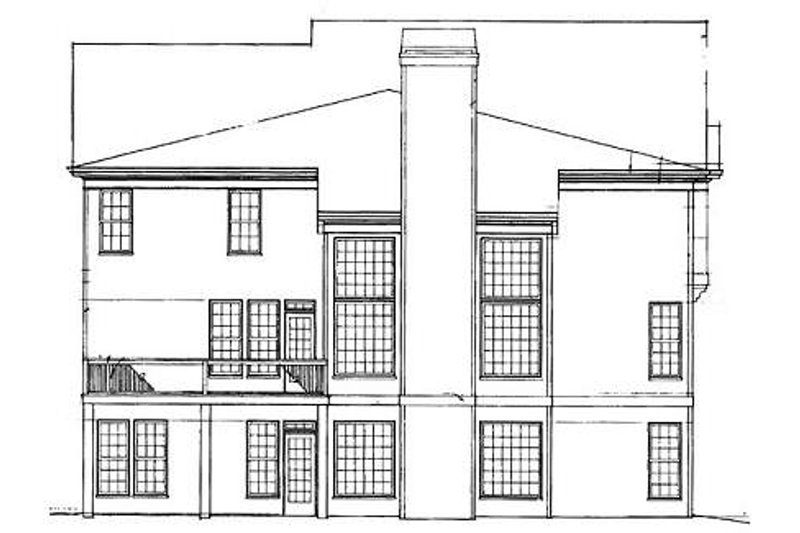

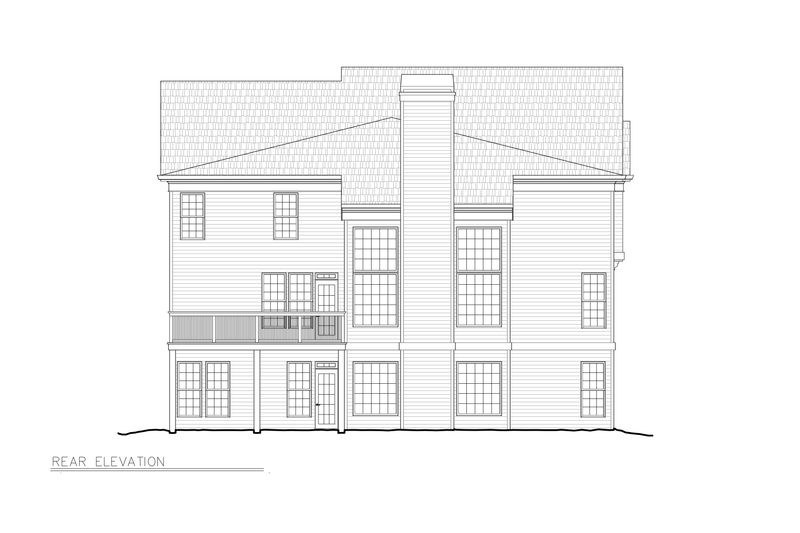

Home Plan - Colonial Exterior - Rear Elevation Plan #119-260

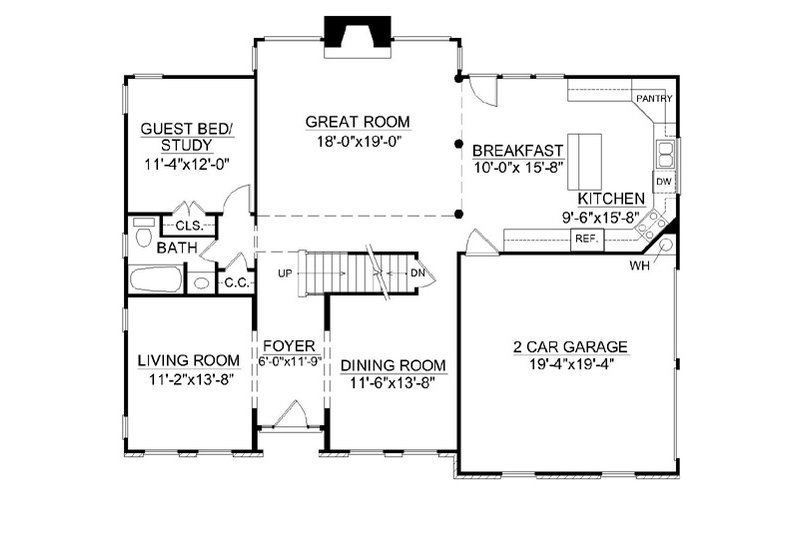

Home Plan - Colonial Floor Plan - Main Floor Plan #119-260

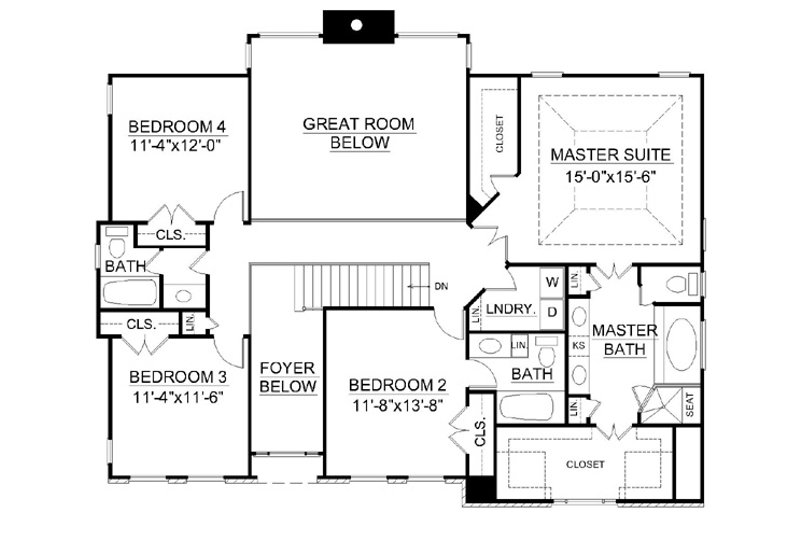

Home Plan - Colonial Floor Plan - Upper Floor Plan #119-260

Key Specs

2780
sq ft

5
Beds

4
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

	Right-Reading Reverse $180.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $90.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Unlimited Use License $715.50 Unlimited Use License.

Subtotal

NOW $1165.50

You save $129.50

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-888-447-1946

Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 119-260

Key Specs

2780
sq ft

5
Beds

4
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 41'
Height : 32'
Width : 50'

Area

First Floor: 1446 sq/ft height 9'
Second Floor: 1334 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick
Framing : Wood - 2x4

Bedroom Features

Guest Suite
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Rooms

Bedroom 2:

159 sq/ft width 11' 8" x depth 13' 8"

Bedroom 3:

130 sq/ft width 11' 4" x depth 11' 6"

Bedroom 4:

135 sq/ft width 11' 4" x depth 12'

Bedroom 5:

135 sq/ft width 11' 4" x depth 12'

Breakfast Room:

156 sq/ft width 10' x depth 15' 8"

Dining Room:

157 sq/ft width 11' 6" x depth 13' 8"

Garage:

373 sq/ft width 19' 4" x depth 19' 4"

Gathering Room:

342 sq/ft width 18' x depth 19'

Kitchen:

148 sq/ft width 9' 6" x depth 15' 8"

Living Room:

152 sq/ft width 11' 2" x depth 13' 8"

Master Bedroom:

232 sq/ft width 15' x depth 15' 6"

What's Included In This Plan Set

See a sample plan set

Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
Second Floor Lighting: The same details as provided for the first floor.
Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
