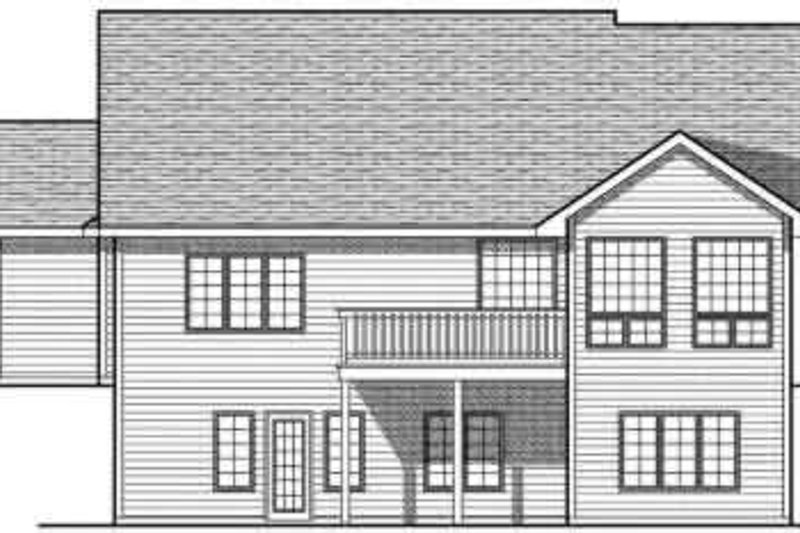

Home Plan - Traditional Exterior - Rear Elevation Plan #70-693

Get Personalized Help

Home > Style > Traditional

Key Specs

2787
sq ft

4
Beds

2.5
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$375.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$60.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1510.00

Also order by phone: 1-888-447-1946

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2023 (limit 1

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours: Mon - Fri 8:00 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 70-693

Home > Style > Traditional

Key Specs

2787
sq ft

4
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 2787 sq ft and has 4 bedrooms and 2.5 bathrooms.

Floor Plans

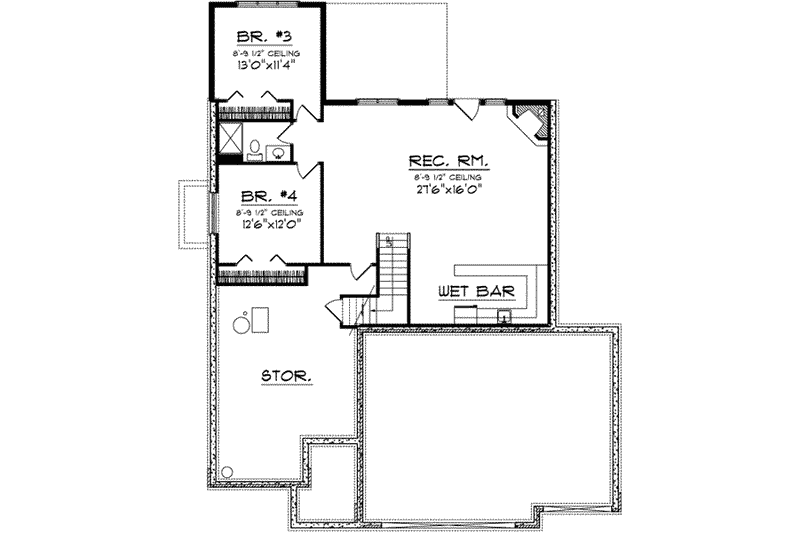

Floor Plan - Lower Floor

Reverse

Home Plan - Traditional Floor Plan - Lower Floor Plan #70-693

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

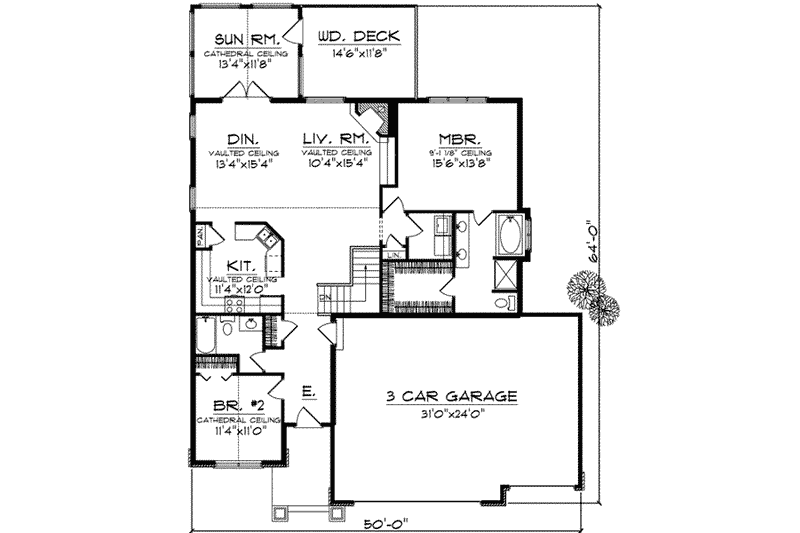

Floor Plan - Main Floor

Reverse

Home Plan - Traditional Floor Plan - Main Floor Plan #70-693

Full Specs & Features

Dimension

Depth : 64'

Height : 22'

Width : 50'

Area

Basement Living: 1160 sq/ft

First Floor: 1677 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : 2"x6"

Bedroom Features

Split Bedrooms

Walk In Closet

Additional Room Features

Hobby Rec Room Game Room

Storage Area

Garage Features

Oversized Garage

Lot Characteristics

Suited For Narrow Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Grill Deck Sundeck

Rooms

Bedroom 2:

124 sq/ft width 11' 4" x depth 11'

Bedroom 2 Closet:

3 sq/ft width 4' 2" x depth 9"

Bedroom 3:

147 sq/ft width 13' x depth 11' 4"

Bedroom 3 Closet:

17 sq/ft width 8' 10" x depth 2'

Bedroom 4:

150 sq/ft width 12' 6" x depth 12'

Bedroom 4 Closet:

21 sq/ft width 10' 8" x depth 2'

Deck:

169 sq/ft width 14' 6" x depth 11' 8"

Dining Room:

204 sq/ft width 13' 4" x depth 15' 4"

Foyer:

82 sq/ft width 6' x depth 13' 10"

Game Room:

440 sq/ft width 27' 6" x depth 16'

Garage:

744 sq/ft width 31' x depth 24'

Hall:

18 sq/ft width 3' 8" x depth 5'

Hall Bathroom:

66 sq/ft width 9' x depth 7' 5"

Hall Closet:

8 sq/ft width 2' x depth 4'

Kitchen:

135 sq/ft width 11' 4" x depth 12'

Laundry Room:

35 sq/ft width 5' 8" x depth 6' 4"

Master Bathroom:

109 sq/ft width 8' 3" x depth 13' 3"

Master Bedroom:

211 sq/ft width 15' 6" x depth 13' 8"

Master Closet:

61 sq/ft width 9' x depth 6' 10"

Pantry:

6 sq/ft width 2' x depth 3'

Porch - Front:

234 sq/ft width 18' x depth 13'

Sun Room:

155 sq/ft width 13' 4" x depth 11' 8"

Wet Bar:

86 sq/ft width 11' 6" x depth 7' 6"

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
