PLAN 132-242

Home > Style > Craftsman

Key Specs

2795
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Strong Shingle-Style details create a timeless exterior with a rustic flavor. The front porch is highlighted by bold columns with stone bases, heavy brackets and contrasting trim. The floor plan’s open family areas complement the formal dining room and den. Upstairs, the large bonus room separates the private master suite from the secondary bedrooms and laundry.

Floor Plans

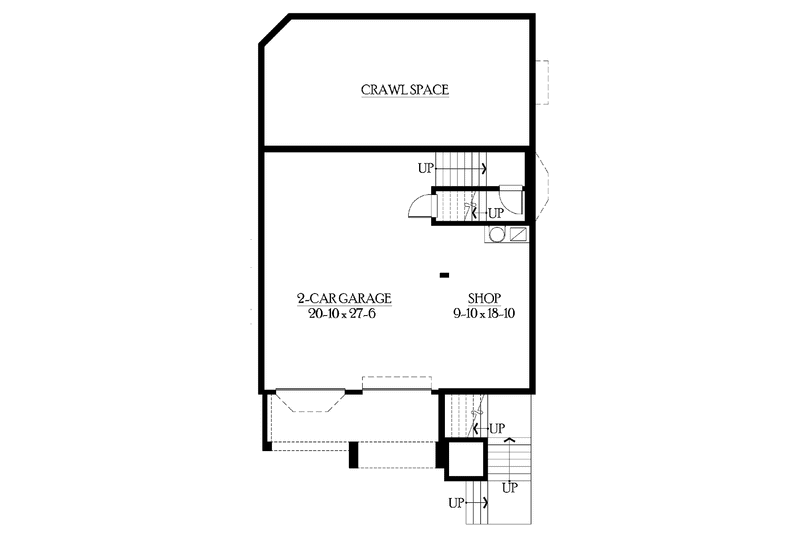

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

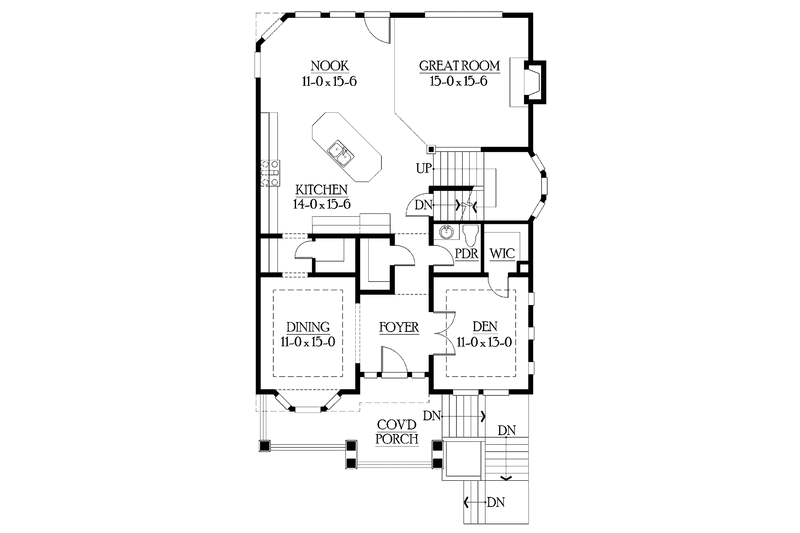

Floor Plan - Main Floor

Reverse

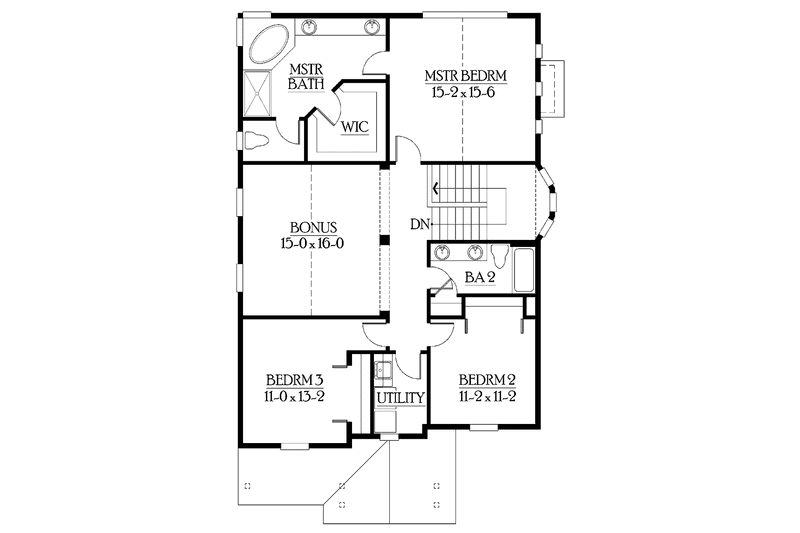

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 52' 6"

Height : 35' 4"

Width : 32'

Area

Basement Living: 42 sq/ft

First Floor: 1405 sq/ft

Garage: 635 sq/ft

Second Floor: 1348 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Open Floor Plan

Storage Area

Unfinished Future Space

Upstairs Laundry

Vaulted / Cathedral Ceilings

Workshop

Outdoor Spaces

Courtyard

Covered Front Porch

Deck

Rooms

Bedroom 2:

124 sq/ft width 11' 2" x depth 11' 2"

Bedroom 3:

144 sq/ft width 11' x depth 13' 2"

Bonus Room - Finished:

240 sq/ft width 15' x depth 16'

Breakfast Nook:

170 sq/ft width 11' x depth 15' 6"

Den:

143 sq/ft width 11' x depth 13'

Dining Room:

165 sq/ft width 11' x depth 15'

Garage:

572 sq/ft width 20' 10" x depth 27' 6"

Great Room:

232 sq/ft width 15' x depth 15' 6"

Kitchen:

217 sq/ft width 14' x depth 15' 6"

Master Bedroom:

235 sq/ft width 15' 2" x depth 15' 6"

Shop:

185 sq/ft width 9' 10" x depth 18' 10"

What's Included In This Plan Set

See a sample plan set

Purchasing a CAD set gives you a multi-build license.

If you are building this plan in the state of Washington, please call us before placing your order.

This designer includes the bonus square feet in the total heated living square feet.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
