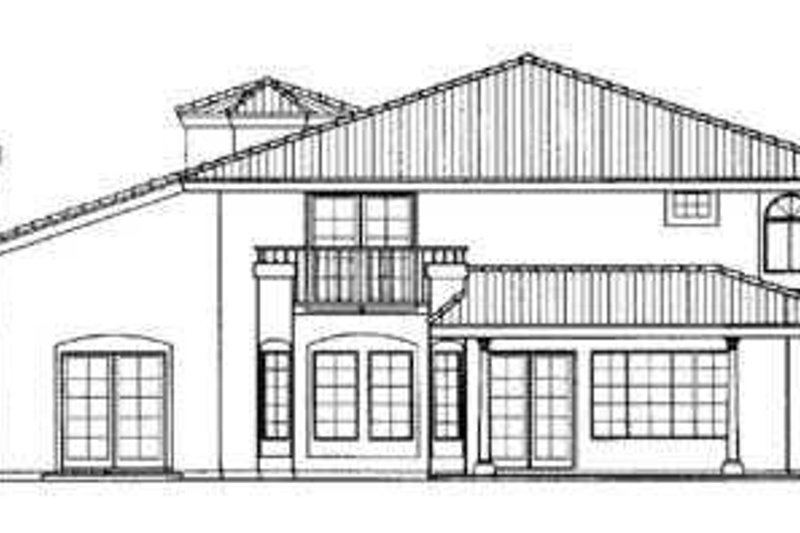

Home Plan - Mediterranean Exterior - Rear Elevation Plan #72-160

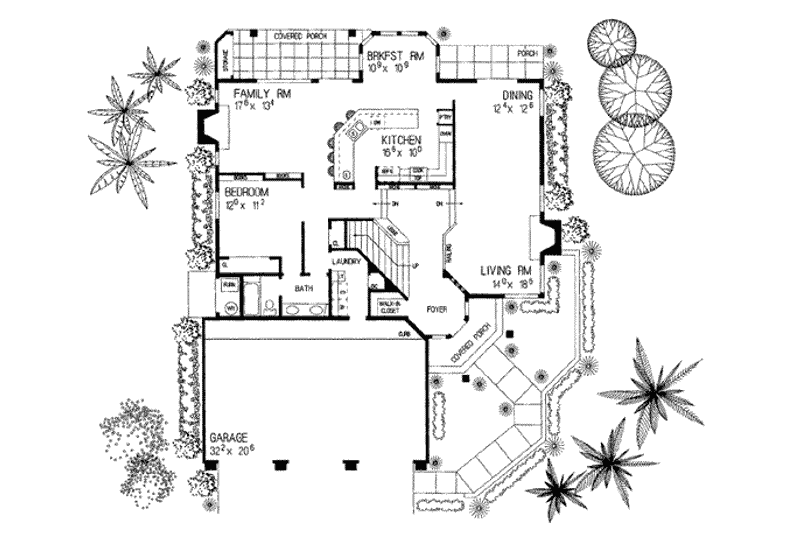

Home Plan - Mediterranean Floor Plan - Main Floor Plan #72-160

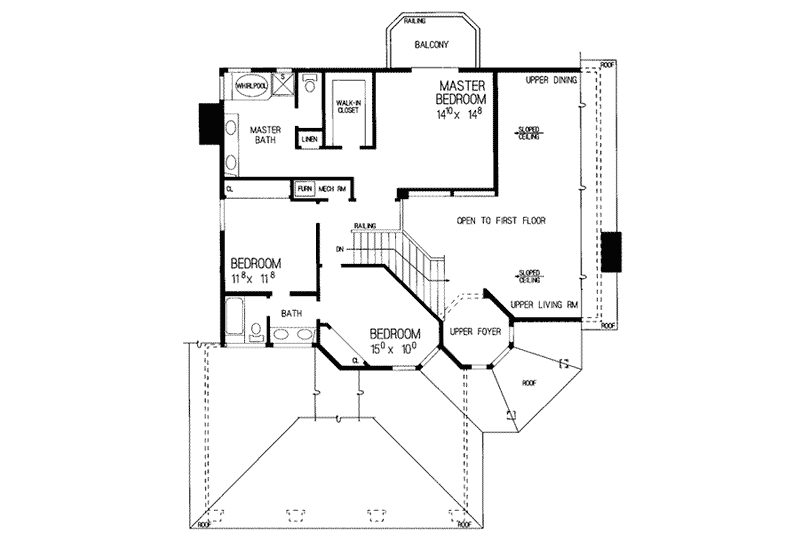

Home Plan - Mediterranean Floor Plan - Upper Floor Plan #72-160

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

2811
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$51.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$420.75

Allows you to build one more home for each additional license purchased.

Audio Video Design

$127.50

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$127.50

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$0.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Unlimited Use License

$845.75

Allows you to build this home as many times as you want.

Subtotal

$1275.12 NOW $1083.85

You save $191.27 (15% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 72-160

Home > Style > Mediterranean

Key Specs

2811
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This mediterranean design floor plan is 2811 sq ft and has 4 bedrooms and 3 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 64'

Height : 24'

Width : 52' 6"

Area

First Floor: 1776 sq/ft height 8'

Second Floor: 1035 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 4:12

Roof Framing : Combination Truss/Conventional

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Guest Suite

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Additional Room Features

Family Room Keeping Room

Garage Features

Oversized Garage

Lot Characteristics

Suited For View Lot

Jack & Jill Bath

Rooms

3rd BR Closet:

14 sq/ft width 2' 1" x depth 7'

Bathroom 2:

69 sq/ft width 11' 6" x depth 6'

Bathroom 3:

73 sq/ft width 12' 2" x depth 6'

Bedroom 2:

136 sq/ft width 11' 8" x depth 11' 8"

Bedroom 2 Closet:

17 sq/ft width 2' 1" x depth 8' 4"

Bedroom 3:

150 sq/ft width 15' x depth 10'

Bedroom 3 Closet:

17 sq/ft width 2' 1" x depth 8' 4"

Bedroom 4:

134 sq/ft width 12' x depth 11' 2"

Bedroom 4 Closet:

18 sq/ft width 2' 1" x depth 8' 10"

Breakfast Room:

115 sq/ft width 10' 9" x depth 10' 9"

Dining Room:

154 sq/ft width 12' 4" x depth 12' 6"

Foyer:

width 8' x depth 0"

Garage:

659 sq/ft width 32' 2" x depth 20' 6"

Gathering Room:

233 sq/ft width 17' 6" x depth 13' 4"

Hall Closet:

17 sq/ft width 5' x depth 3' 6"

Kitchen:

165 sq/ft width 16' 6" x depth 10'

Laundry Room:

50 sq/ft width 5' 4" x depth 9' 6"

Living Room:

259 sq/ft width 14' x depth 18' 6"

Master Bathroom:

159 sq/ft width 12' 3" x depth 13'

Master Bedroom:

217 sq/ft width 14' 10" x depth 14' 8"

Master Closet:

54 sq/ft width 5' 10" x depth 9' 4"

Porch - Front:

64 sq/ft width 4' x depth 16'

Porch - Rear:

75 sq/ft width 5' x depth 15' 2"
