PLAN 1016-24
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

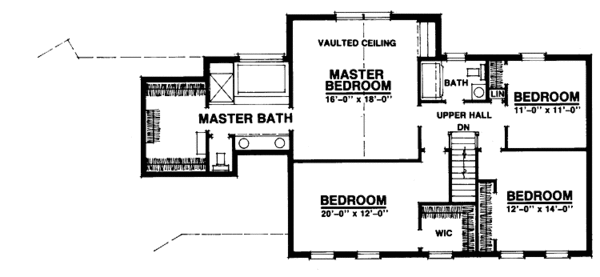

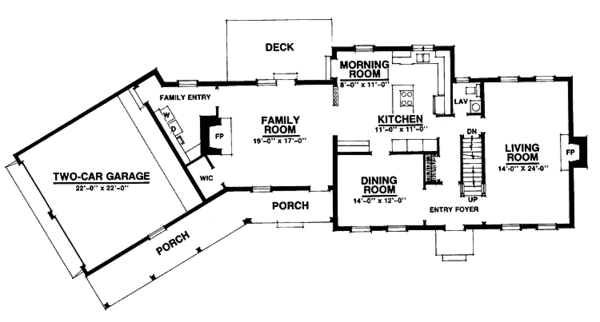

Floor Plans
Full Specs & Features
Dimension
Depth : 36' 1"
Height : 26'
Width : 92' 9"
Area
First Floor: 1527 sq/ft height 8'
Second Floor: 1301 sq/ft
Roof
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
3rd BR Closet:
18 sq/ft width 9' 2" x depth 2'
Basement Foundation:
826 sq/ft width 37' x depth 22' 4"
Bedroom 2:
114 sq/ft width 10' 2" x depth 11' 3"
Bedroom 2 Closet:
10 sq/ft width 5' x depth 2'
Bedroom 3:
147 sq/ft width 11' 6" x depth 12' 10"
Bedroom 3 Closet:
10 sq/ft width 5' x depth 2'
Bedroom 4:
186 sq/ft width 16' 3" x depth 11' 6"
Bedroom 4 Closet:
35 sq/ft width 7' x depth 5'
Breakfast Room:
144 sq/ft width 9' x depth 16'
Dining Room:
161 sq/ft width 14' x depth 11' 6"
Foyer:
59 sq/ft width 9' 4" x depth 6' 5"
Garage:
484 sq/ft width 22' x depth 22'
Gathering Room:
306 sq/ft width 18' 8" x depth 16' 5"
Hall:
38 sq/ft width 3' 6" x depth 11'
Hall Bathroom:
40 sq/ft width 8' x depth 5'
Kitchen:
144 sq/ft width 9' x depth 16'
Living Room:
316 sq/ft width 13' 9" x depth 23'
Master Bathroom:
110 sq/ft width 10' x depth 11'
Master Bedroom:
291 sq/ft width 16' 3" x depth 17' 11"
Master Closet:
80 sq/ft width 8' x depth 10'
Porch - Rear:
100 sq/ft width 18' 11" x depth 5' 4"
Powder Room:
22 sq/ft width 4' 6" x depth 5'
Storage:
22 sq/ft width 3' 6" x depth 6' 4"
Utility Room:
90 sq/ft width 10' x depth 9'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1075.00
Foundation
$0.00
Framing
$0.00
Additional Options
$100.00
$39.00
$100.00
$60.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
