PLAN 437-34

Home / Style / Mediterranean

Key Specs

2834
sq ft

4
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Floor Plans

Floor Plan - Main Floor

Reverse

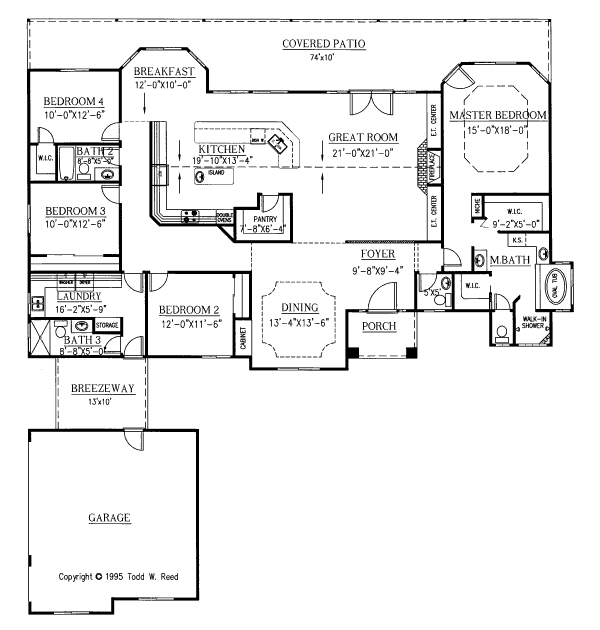

Home Plan - Mediterranean Floor Plan - Main Floor Plan #437-34

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 83' 6"

Height : 23'

Width : 74'

Area

First Floor: 2834 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Trusses

Roof Type : Concrete Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : 2"x4"

Rooms

Bedroom 2:

138 sq/ft width 12' x depth 11' 6"

Bedroom 3:

125 sq/ft width 10' x depth 12' 6"

Bedroom 4:

125 sq/ft width 10' x depth 12' 6"

Breakfast:

120 sq/ft width 12' x depth 10'

Dining Room:

179 sq/ft width 13' 4" x depth 13' 6"

Foyer:

90 sq/ft width 9' 8" x depth 9' 4"

Great Room:

441 sq/ft width 21' x depth 21'

Kitchen:

264 sq/ft width 19' 10" x depth 13' 4"

Laundry Room:

92 sq/ft width 16' 2" x depth 5' 9"

Master Bedroom:

270 sq/ft width 15' x depth 18'

What's Included In This Plan Set

See a sample plan set

Please note: This designer has the following the zip code restrictions: 30041, 30501, 30504, 30506, 30542, and 30566.

Exterior Elevations

Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).

Floor Plan(s)

Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.

Foundation Plan and Footings

The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.

Roof Plan

Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.

Building Sections & Details

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.

Notes and Details Page(s)

The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
