PLAN 927-942
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

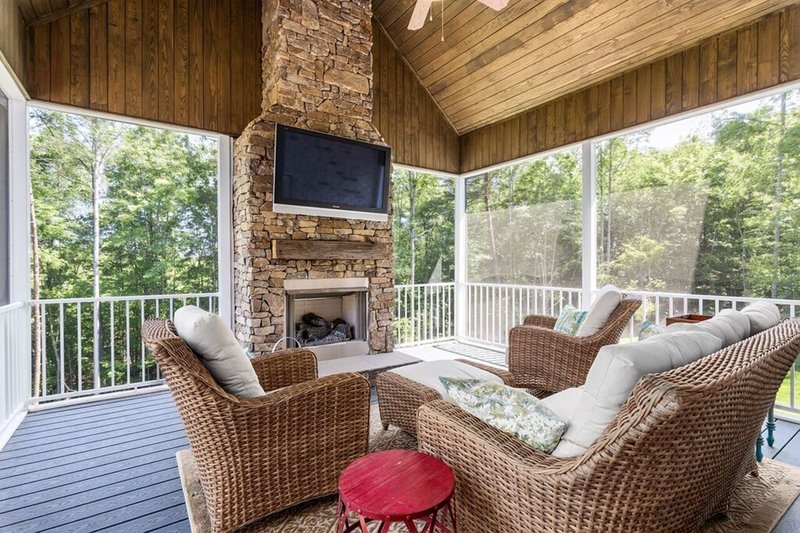

With a skylit loft and private bath, the second floor of this special country home makes a perfect teen retreat or mini-apartment for an in-law or returned college student. An optional bonus room above the garage offers even greater privacy. On the main level, the whole family can gather in the vaulted, hearth-warmed family room, which is completely open to the island kitchen. The dining room waits nearby. In back, both the vaulted screen porch and the extensive master suite (check out the walk-in closet!) access the deck. Two additional bedrooms occupy the opposite side of the plan.
Full Specs & Features
Dimension
Depth : 72' 6"
Height : 29'
Width : 64'
Height : 29'
Width : 64'
Area
Basement Unfinished: 2205 sq/ft height 9'
Bonus: 423 sq/ft height 9'
First Floor: 2205 sq/ft height 9'
Garage: 591 sq/ft height 9'
Second Floor: 629 sq/ft height 9'
Bonus: 423 sq/ft height 9'
First Floor: 2205 sq/ft height 9'
Garage: 591 sq/ft height 9'
Second Floor: 629 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2 x 4
Framing : 2 x 4
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Loft
Main Floor Laundry
Mud Room
Unfinished Future Space
Vaulted / Cathedral Ceilings
Loft
Main Floor Laundry
Mud Room
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
Deck
Covered Front Porch
Deck
Rooms
Bedroom 2:
143 sq/ft width 11' 10" x depth 12' 2"
Bedroom 3:
128 sq/ft width 11' x depth 11' 8"
Bedroom 4:
207 sq/ft width 17' 4" x depth 12'
Bonus Room - Finished:
270 sq/ft width 11' 5" x depth 23' 8"
Breakfast:
149 sq/ft width 11' 9" x depth 12' 9"
Dining Room:
144 sq/ft width 12' x depth 12'
Family Room:
301 sq/ft width 16' x depth 18' 10"
Foyer:
84 sq/ft width 7' x depth 12'
Garage:
506 sq/ft width 21' 5" x depth 23' 8"
Kitchen:
155 sq/ft width 11' 9" x depth 13' 3"
Laundry Room:
47 sq/ft width 7' 6" x depth 6' 4"
Loft:
149 sq/ft width 11' 9" x depth 12' 9"
Master Bathroom:
119 sq/ft width 11' 8" x depth 10' 3"
Master Bedroom:
221 sq/ft width 13' x depth 17'
Master Closet:
80 sq/ft width 12' x depth 6' 8"
Porch - Screened:
233 sq/ft width 16' 8" x depth 14'
What's Included In This Plan Set
- Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
- All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Questions? Call 1-888-447-1946
Plan Set
| 5 Copy Set : $1168.75 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $1253.75 |
8 printed plan sets mailed to you. |
| PDF Set : $1377.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $1445.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $2626.50 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse : $212.50 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $38.25 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $85.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $33.15 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $85.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets : $46.75 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
