PLAN 437-62
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 66'
Height : 30' 4"
Width : 77'
Height : 30' 4"
Width : 77'
Area
Basement Unfinished: 2842 sq/ft height 9'
First Floor: 2842 sq/ft height 9'
Garage: 703 sq/ft
First Floor: 2842 sq/ft height 9'
Garage: 703 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 9'
Main Ceiling : 9'
Main Ceiling : 9'
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick / Siding / Shingle
Framing : 2x4
Framing : 2x4
Bedroom Features
Walk In Closet
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Great Room Living Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Sloping Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
Rooms
Bath 2:
50 sq/ft width 5' x depth 10'
Bedroom 2:
196 sq/ft width 14' x depth 14'
Breakfast:
152 sq/ft width 12' 8" x depth 12'
Covered Front Porch:
294 sq/ft width 42' x depth 6' 4"
Covered Rear Porch:
296 sq/ft width 23' 8" x depth 14'
Covered Side Porch:
24 sq/ft width 4' 4" x depth 6'
Foyer:
165 sq/ft width 8' 8" x depth 19'
Garage:
703 sq/ft width 27' x depth 27'
Great Room:
481 sq/ft width 19' 4" x depth 24' 8"
Keeping:
253 sq/ft width 15' x depth 16' 8"
Kitchen:
196 sq/ft width 11' x depth 17' 10"
Laundry:
84 sq/ft width 9' x depth 9' 4"
Master Bedroom:
296 sq/ft width 15' 4" x depth 19' 4"
Master Closet:
123 sq/ft width 15' 4" x depth 8'
Rear Deck:
49 sq/ft width 7' x depth 7'
Study/ Bedroom 3:
208 sq/ft width 13' x depth 16'
What's Included In This Plan Set
-
Exterior Elevations
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc). -

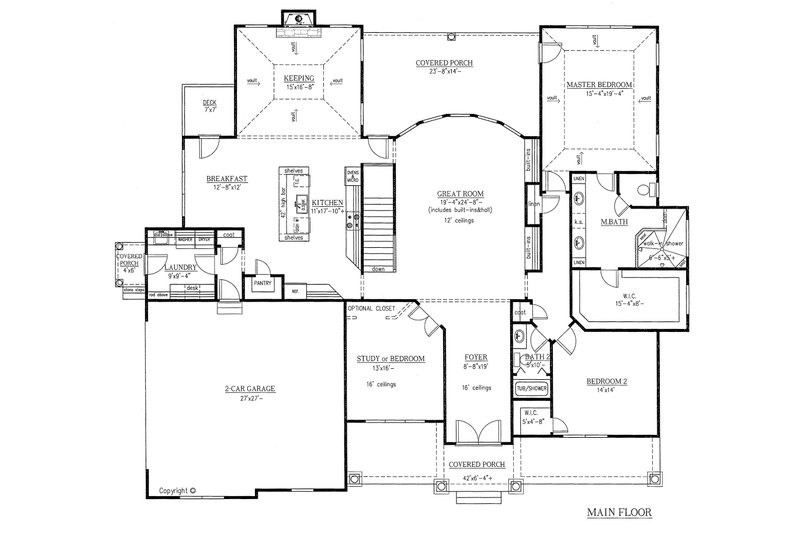

Floor Plan(s)
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out. -
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations. -
Roof Plan
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable. -
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design. -
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
