Key Specs


2849
sq ft

4
Beds

2
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


This two-story traditional home strongly recalls images of a New England of yesteryear. The center entrance hall is large with a handy powder room nearby. The study has built-in bookshelves and offers a full measure of privacy. The interior kitchen has a pass-through to the family room and enjoys natural light from the bay window of the nook. A beam ceiling, a fireplace and sliding glass doors are features of the family room. The mud room highlights a closet, laundry equipment and an extra washroom. The second floor contains three family bedrooms, the master suite, two baths and plenty of closets.


Floor Plans

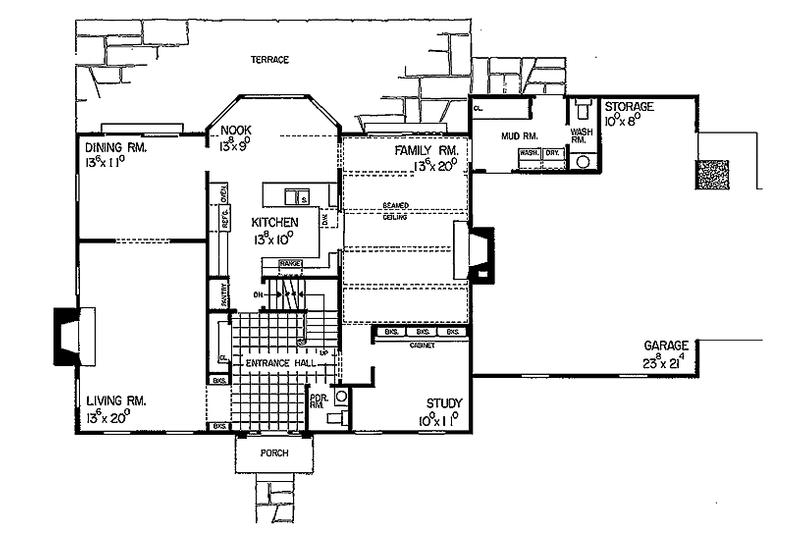

Floor Plan - Main Floor Plan
Reverse
Save Colonial Floor Plan - Main Floor Plan Plan #72-664

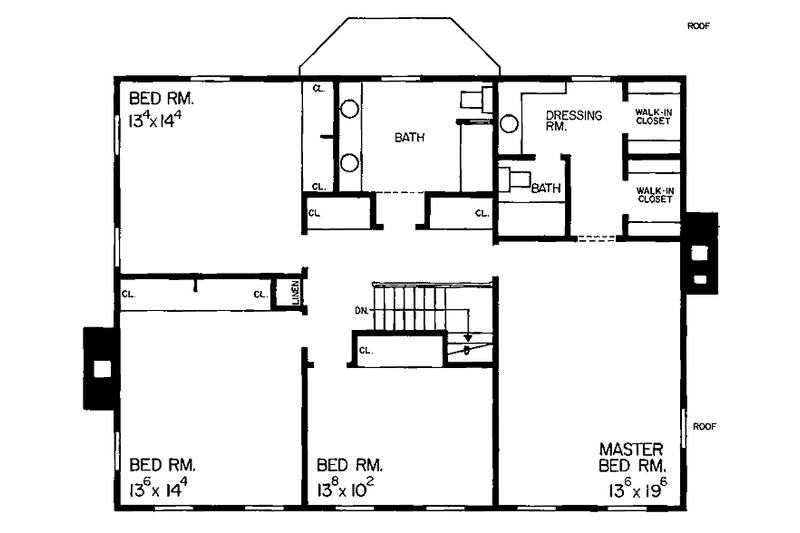

Floor Plan - Upper Floor Plan
Reverse
Save Colonial Floor Plan - Upper Floor Plan Plan #72-664

Full Specs & Features


Dimension
Depth : 36'
Height : 28'
Width : 66'
Area
First Floor: 1505 sq/ft height 8'
Second Floor: 1344 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 7:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Storage Area
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms

3rd BR Closet:

23 sq/ft width 11' 2" x depth 2' 1"

Attic:

192 sq/ft width 6' x depth 32'

Basement Foundation:

1512 sq/ft width 42' x depth 36'

Bathroom 2:

93 sq/ft width 11' 3" x depth 8' 4"

Bathroom 3:

136 sq/ft width 13' 8" x depth 10'

Bedroom 2:

138 sq/ft width 13' 8" x depth 10' 2"

Bedroom 2 Closet:

13 sq/ft width 6' 4" x depth 2' 1"

Bedroom 3:

193 sq/ft width 13' 6" x depth 14' 4"

Bedroom 3 Closet:

13 sq/ft width 6' 4" x depth 2' 1"

Bedroom 4:

191 sq/ft width 13' 4" x depth 14' 4"

Bedroom 4 Closet:

17 sq/ft width 8' 4" x depth 2' 1"

Den/Office or Bedroom 1:

110 sq/ft width 11' x depth 10'

Dining Room:

148 sq/ft width 13' 6" x depth 11'

Garage:

504 sq/ft width 23' 8" x depth 21' 4"

Garage Storage:

80 sq/ft width 10' x depth 8'

Gathering Room:

270 sq/ft width 13' 6" x depth 20'

Hall:

94 sq/ft width 7' 7" x depth 12' 6"

Hall Closet:

13 sq/ft width 6' 4" x depth 2' 1"

Laundry Room:

53 sq/ft width 10' x depth 5' 4"

Living Room:

270 sq/ft width 13' 6" x depth 20'

Master Bathroom:

106 sq/ft width 9' 3" x depth 11' 6"

Master Bedroom:

263 sq/ft width 13' 6" x depth 19' 6"

Master Closet:

46 sq/ft width 4' x depth 11' 6"

Porch - Front:

32 sq/ft width 8' x depth 4'

Powder Room:

20 sq/ft width 4' 5" x depth 4' 8"

Slab Foundation:

864 sq/ft width 24' x depth 36'

Study:

110 sq/ft width 10' x depth 11'

Wash Room:

23 sq/ft width 3' 1" x depth 7' 8"

What's Included In This Plan Set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
