PLAN 76-121

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

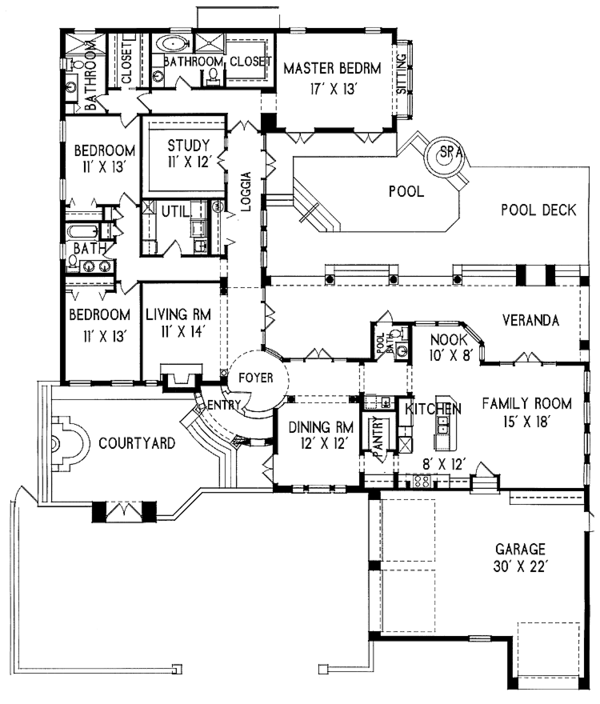

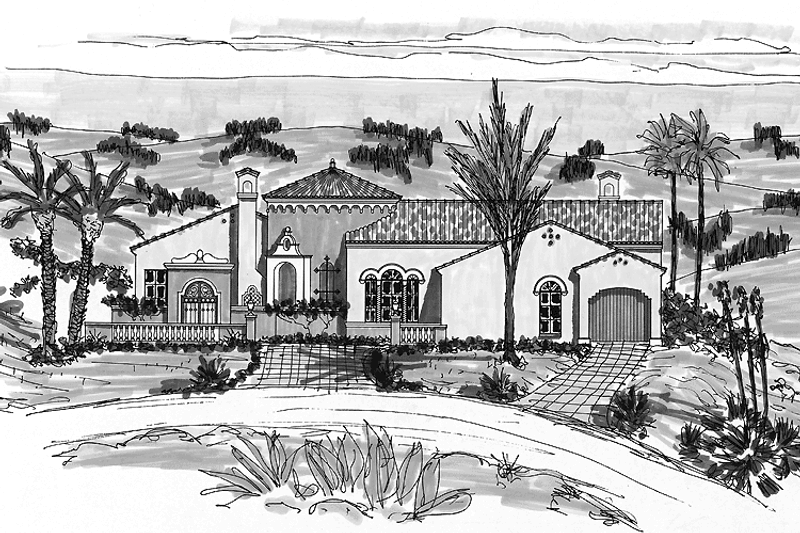

In an intriguing blend of Mediterranean and mission styles, this captivating home exemplifies Spanish Colonial design. A gated entry leads to the courtyard, where a grand foyer awaits. To the right, a formal dining room with courtyard access flows past the butler's pantry into an open villa kitchen. Both the family room and breakfast nook afford spectacular views through their walls of windows. A pool bath is an added convenience. The left wing comprises a living room with a fireplace, two secondary bedrooms, two full hall baths, a study and the utility room. To the rear, the master suite features a windowed sitting area, luxurious bath and outdoor access.

Full Specs & Features


Depth : 96' 8"

Height : 26'

Width : 84' 8"


First Floor: 2892 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 5:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x4

Bedroom Features


Formal Dining Room

Formal Living Room / Parlor

Kitchen Features

Breakfast Nook

Butler's Pantry

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Main Floor Laundry

Master Sitting Area

Outdoor Spaces




3rd BR Closet:

19 sq/ft width 2' 6" x depth 7' 10"

Bathroom 2:

72 sq/ft width 12' x depth 6'

Bathroom 3:

54 sq/ft width 7' x depth 7' 10"

Bedroom 2:

155 sq/ft width 11' 8" x depth 13' 4"

Bedroom 2 Closet:

13 sq/ft width 2' 4" x depth 5' 8"

Bedroom 3:

154 sq/ft width 14' x depth 11'

Bedroom 3 Closet:

13 sq/ft width 2' 4" x depth 5' 8"

Breakfast Room:

58 sq/ft width 5' 10" x depth 10'


238 sq/ft width 13' 8" x depth 17' 5"

Dining Room:

131 sq/ft width 13' 2" x depth 10'


width 11' x depth 0"


711 sq/ft width 22' x depth 32' 4"

Gathering Room:

367 sq/ft width 18' 10" x depth 19' 6"


width 5' 6" x depth 0"


110 sq/ft width 13' 10" x depth 8'

Living Room:

161 sq/ft width 11' 8" x depth 13' 10"

Master Bathroom:

88 sq/ft width 8' x depth 11'

Master Bedroom:

282 sq/ft width 20' 2" x depth 14'

Master Closet:

51 sq/ft width 7' 4" x depth 7'

Powder Room:

29 sq/ft width 5' 6" x depth 5' 4"


147 sq/ft width 12' 4" x depth 12'

Utility Room:

81 sq/ft width 8' 4" x depth 9' 10"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
