PLAN 437-36
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

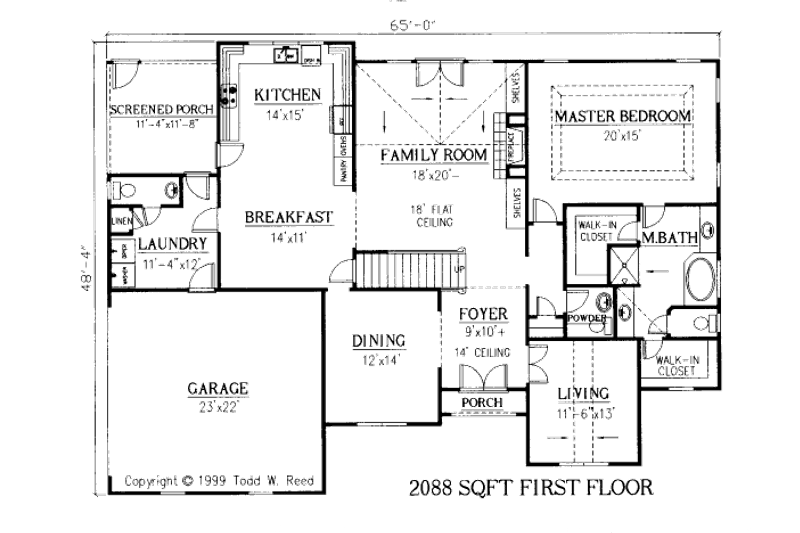

Floor Plan - Main Floor

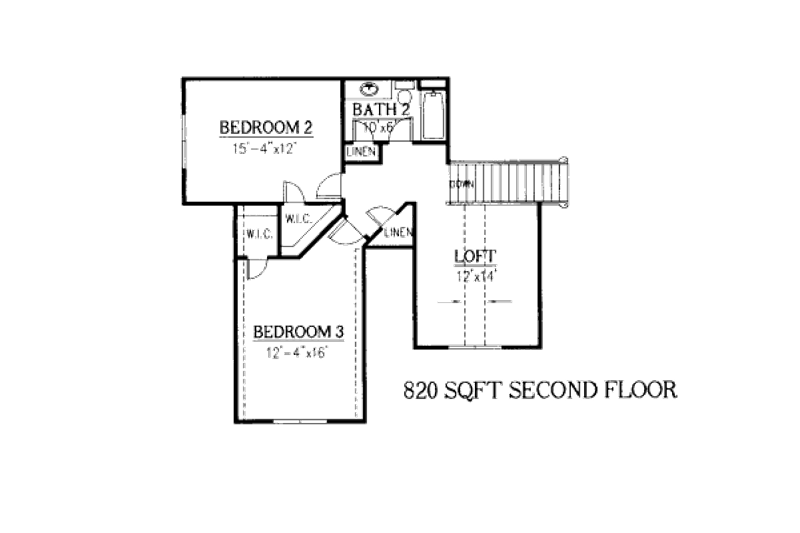

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 48' 4"
Height : 28'
Width : 65'
Area
First Floor: 2088 sq/ft height 9'
Second Floor: 820 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Trusses
Roof Type : Asphalt Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick, Stucco
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Storage Area
Sunroom
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Screened Porch
Rooms
Basement Foundation:
3141 sq/ft width 65' x depth 48' 4"
Bathroom 2:
60 sq/ft width 10' x depth 6'
Bedroom 2:
183 sq/ft width 15' 4" x depth 12'
Bedroom 3:
197 sq/ft width 12' 4" x depth 16'
Breakfast Room:
154 sq/ft width 14' x depth 11'
Dining Room:
168 sq/ft width 12' x depth 14'
Foyer:
90 sq/ft width 9' x depth 10'
Gathering Room:
360 sq/ft width 18' x depth 20'
Kitchen:
210 sq/ft width 14' x depth 15'
Laundry Room:
135 sq/ft width 11' 4" x depth 12'
Living Room:
149 sq/ft width 11' 6" x depth 13'
Master Bathroom:
140 sq/ft width 10' x depth 14'
Master Bedroom:
300 sq/ft width 20' x depth 15'
Porch - Front:
27 sq/ft width 9' x depth 3'
Porch - Rear:
132 sq/ft width 11' 4" x depth 11' 8"
Powder Room:
25 sq/ft width 5' x depth 5'
