PLAN 84-506
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

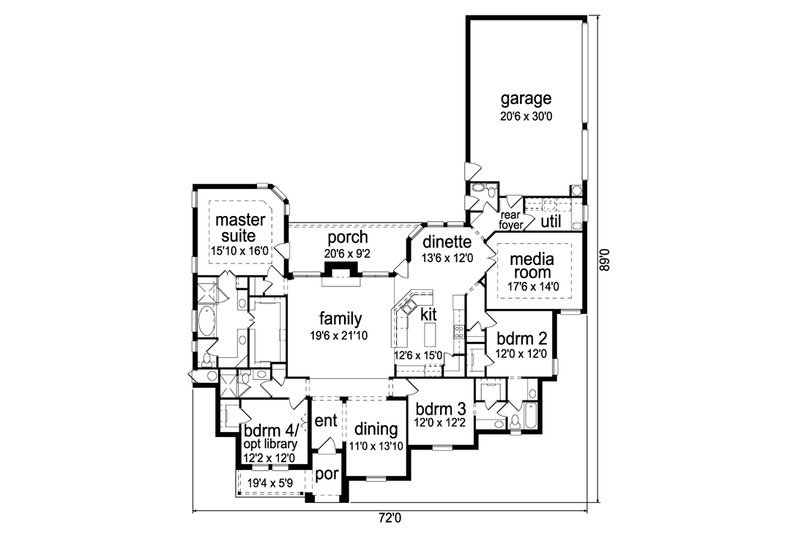

Floor Plans
Full Specs & Features
Dimension
Depth : 89'
Height : 27' 10"
Width : 72'
Area
First Floor: 2912 sq/ft height 10'
Ceiling
Garage Ceiling : 9'
Main Ceiling : 10'
Roof
Primary Pitch : 10:12
Roof Framing : stick
Roof Type : gable
Exterior Wall Framing
Exterior Wall Finish : brick stone
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Media Room
Mud Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Code Compliance
Irc 2003
Rooms
Bedroom 2:
144 sq/ft width 12' x depth 12'
Bedroom 3:
146 sq/ft width 12' x depth 12' 2"
Bedroom 4:
146 sq/ft width 12' 2" x depth 12'
Dinette:
162 sq/ft width 13' 6" x depth 12'
Dining Room:
152 sq/ft width 11' x depth 13' 10"
Family Room:
425 sq/ft width 19' 6" x depth 21' 10"
Garage:
615 sq/ft width 20' 6" x depth 30'
Kitchen:
187 sq/ft width 12' 6" x depth 15'
Master Suite:
253 sq/ft width 15' 10" x depth 16'
Media Room:
245 sq/ft width 17' 6" x depth 14'
Porch - Front:
111 sq/ft width 19' 4" x depth 5' 9"
Porch - Rear:
187 sq/ft width 20' 6" x depth 9' 2"
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale
- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

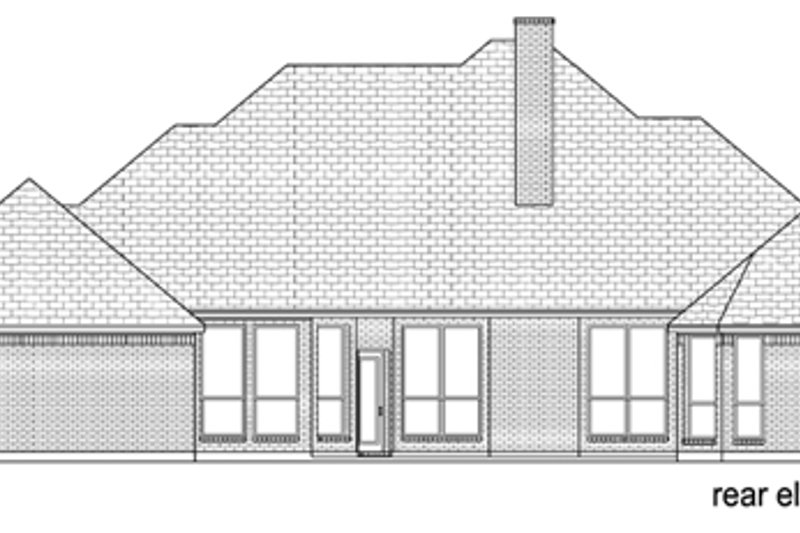

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
Plan Set
$752.25
$816.00
$913.75
$960.50
$1585.25
$701.25
Foundation
$0.00
$0.00
Additional Options
$148.75
$51.00
$85.00
$33.15
$85.00
$51.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
