PLAN 60-646
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 64'
Height : 22'
Width : 84'
Height : 22'
Width : 84'
Area
Bonus: 178 sq/ft
First Floor: 2916 sq/ft
First Floor: 2916 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Framing : 2"x6"
Bedroom Features
Guest Suite
Split Bedrooms
Walk In Closet
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Storage Area
Family Room Keeping Room
Hobby Rec Room Game Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
Covered Rear Porch
Wrap Around Porch
More
Jack & Jill Bath

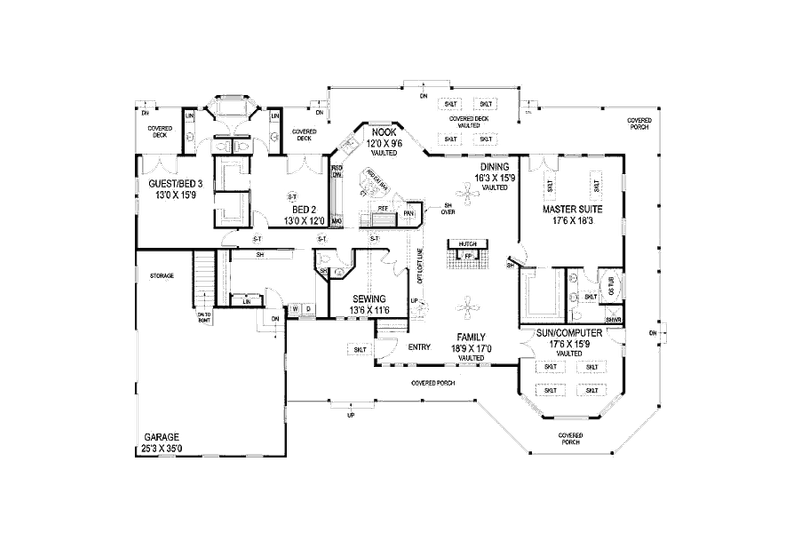

Rooms
Bedroom 2:
156 sq/ft width 13' x depth 12'
Dining Room:
255 sq/ft width 16' 3" x depth 15' 9"
Family Room:
318 sq/ft width 18' 9" x depth 17'
Garage:
883 sq/ft width 25' 3" x depth 35'
Guest Bedroom:
204 sq/ft width 13' x depth 15' 9"
Master bath:
90 sq/ft width 9' 8" x depth 9' 4"
Master Suite:
319 sq/ft width 17' 6" x depth 18' 3"
Master WIC:
48 sq/ft width 7' 7" x depth 6' 4"
Nook:
114 sq/ft width 12' x depth 9' 6"
Pantry:
20 sq/ft width 4' 6" x depth 4' 6"
Sewing Room:
155 sq/ft width 13' 6" x depth 11' 6"
Storage:
98 sq/ft width 10' x depth 9' 9"
Sun Room:
275 sq/ft width 17' 6" x depth 15' 9"
What's Included In This Plan Set

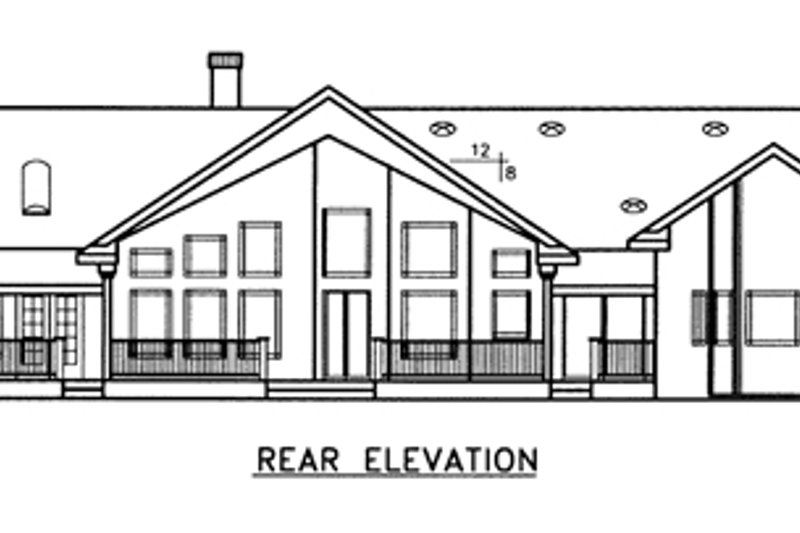

- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
