PLAN 132-327
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Shingled and column details, a long with a covered front porch, give this Craftsman home tons of curb appeal. To the left of the dramatic two story foyer, a den or study offers light filled space for relaxation. In the rear of the home is a family room, ideal for informal entertaining. An open kitchen to the right, has a breakfast nook with access to the back deck. Upstairs, a spacious master suite features two walk-in closets and a dual vanity sink. Three additional bedrooms upstairs share a full bath.
Floor Plans

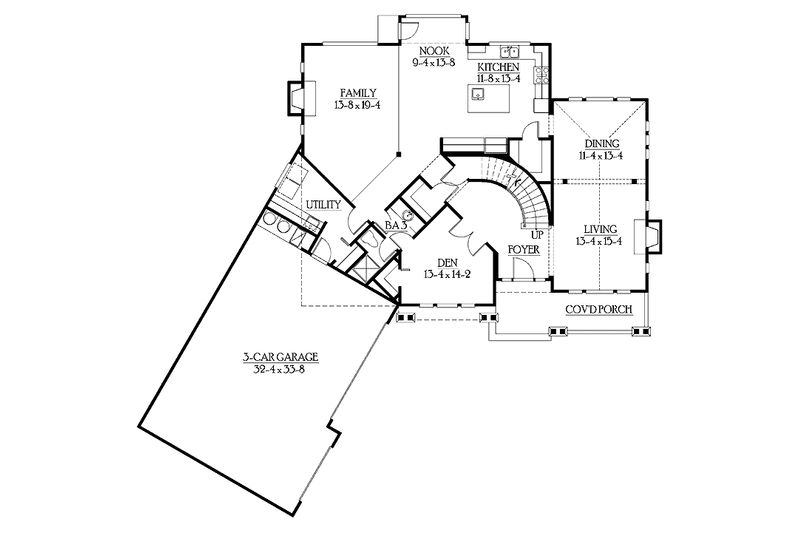

Floor Plan - Main Floor

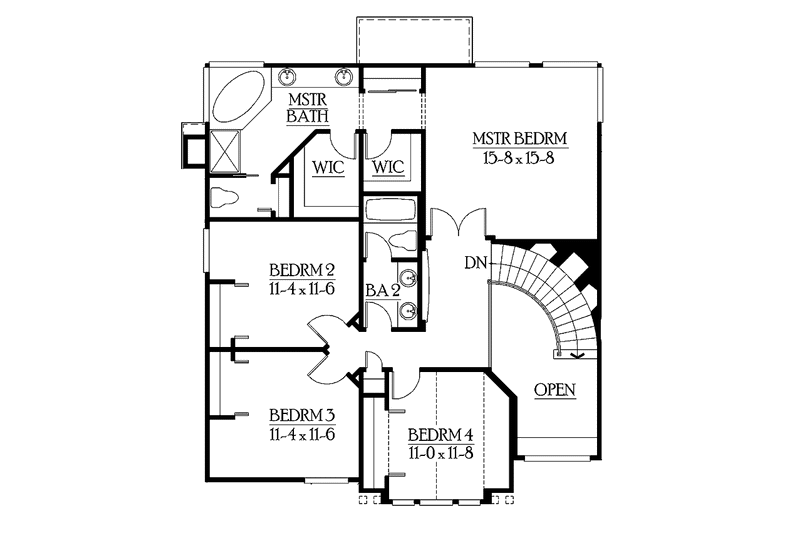

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 72' 6"
Height : 30' 6"
Width : 73' 9"
Area
First Floor: 1733 sq/ft
Garage: 867 sq/ft
Porch: 129 sq/ft
Second Floor: 1192 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Storage Area
Vaulted / Cathedral Ceilings
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
130 sq/ft width 11' 4" x depth 11' 6"
Bedroom 3:
130 sq/ft width 11' 4" x depth 11' 6"
Bedroom 4:
128 sq/ft width 11' x depth 11' 8"
Kitchen:
155 sq/ft width 11' 8" x depth 13' 4"
Living Room:
204 sq/ft width 13' 4" x depth 15' 4"
Master Bedroom:
245 sq/ft width 15' 8" x depth 15' 8"
