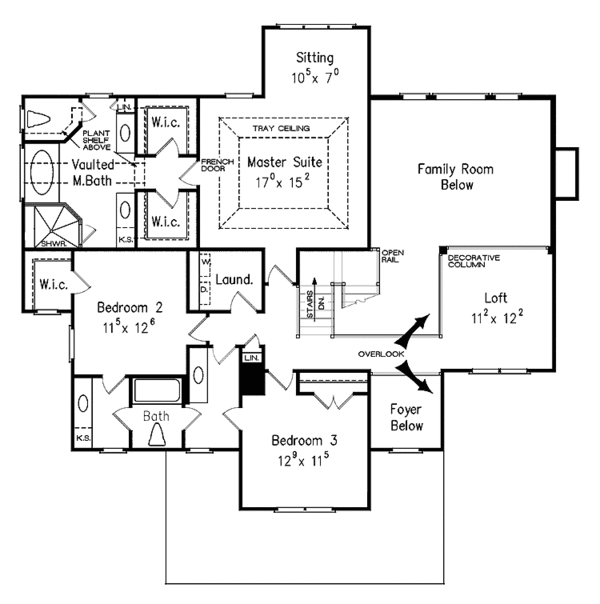

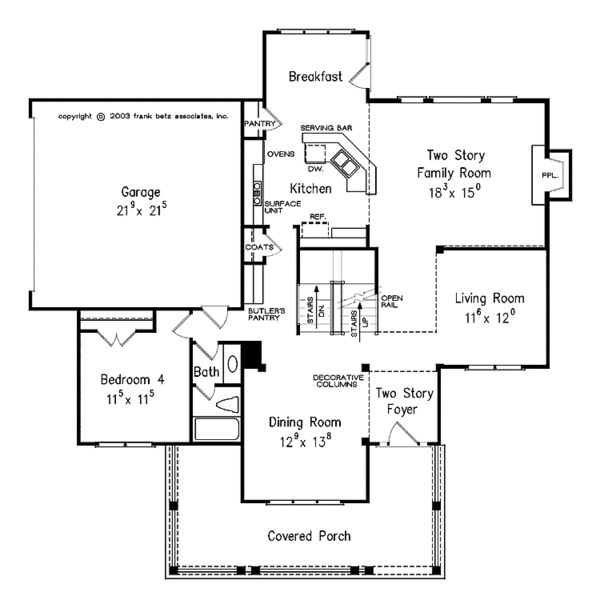

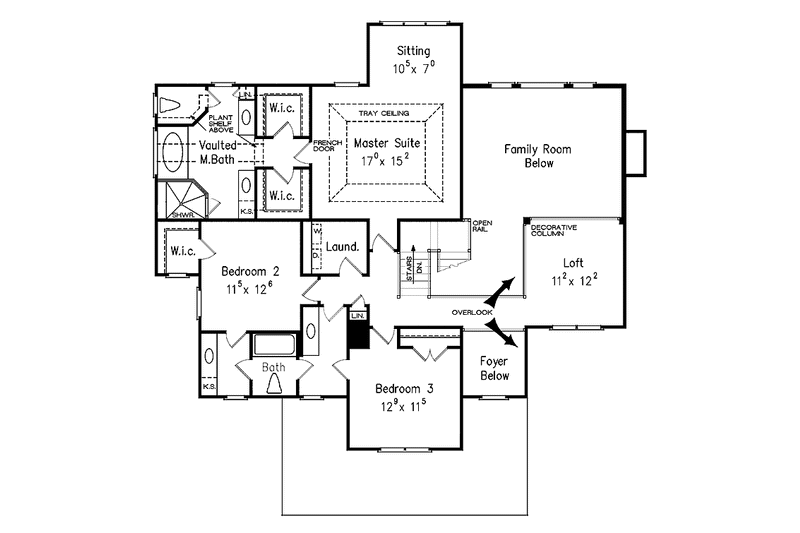

A practical layout that keeps family needs in mind, this home features large rooms and an efficient use of space. Three family bedrooms are housed upstairs, including the lavish master suite, equipped with his and hers amenities and a private sitting area. The second-floor laundry room is ideally placed for convenience. A guest suite on the first floor is adjacent to the spacious kitchen, complete with a butler's pantry, a walk-in pantry, a serving bar, and a breakfast nook. Decorative columns can be found throughout.
142 sq/ft width 11' 5" x depth 12' 6"
145 sq/ft width 12' 9" x depth 11' 5"
130 sq/ft width 11' 5" x depth 11' 5"
174 sq/ft width 12' 9" x depth 13' 8"
273 sq/ft width 18' 3" x depth 15'
465 sq/ft width 21' 9" x depth 21' 5"
138 sq/ft width 11' 6" x depth 12'
135 sq/ft width 11' 2" x depth 12' 2"
257 sq/ft width 17' x depth 15' 2"
72 sq/ft width 10' 5" x depth 7'
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
