PLAN 953-55
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 45'
Width : 66'
Area
Basement Unfinished: 1616 sq/ft

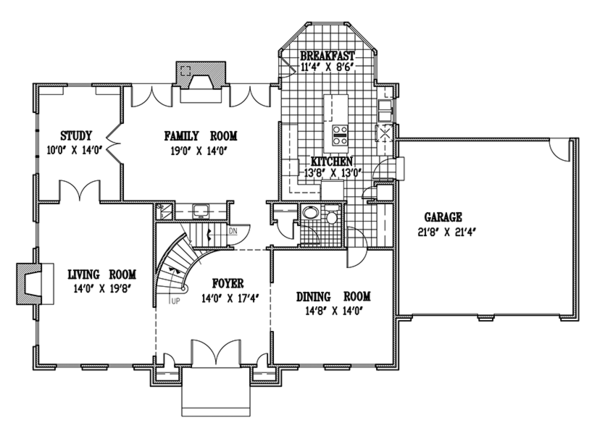

First Floor: 1616 sq/ft

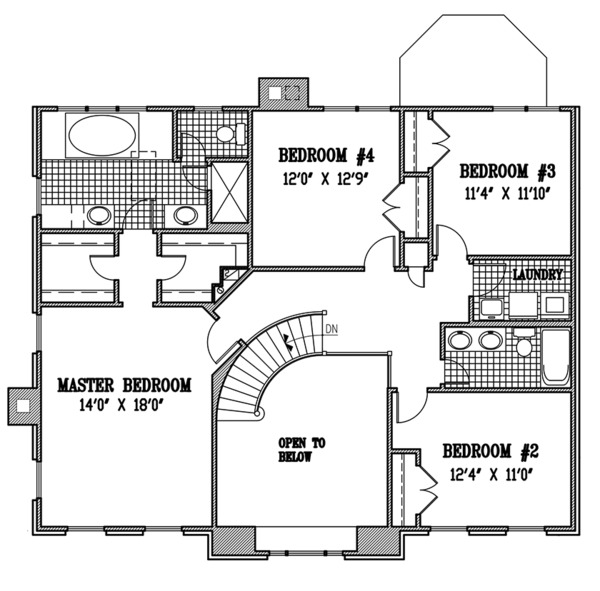

Second Floor: 1354 sq/ft
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Outdoor Spaces
Balcony
Rooms
Bedroom 2:
136 sq/ft width 12' 4" x depth 11'
Bedroom 3:
135 sq/ft width 11' 4" x depth 11' 10"
Bedroom 4:
153 sq/ft width 12' x depth 12' 9"
Breakfast:
96 sq/ft width 11' 4" x depth 8' 6"
Dining Room:
205 sq/ft width 14' 8" x depth 14'
Family Room:
266 sq/ft width 19' x depth 14'
Foyer:
243 sq/ft width 14' x depth 17' 4"
Garage:
462 sq/ft width 21' 8" x depth 21' 4"
Kitchen:
178 sq/ft width 13' 8" x depth 13'
Living Room:
275 sq/ft width 14' x depth 19' 8"
Master Bedroom:
252 sq/ft width 14' x depth 18'
Study:
140 sq/ft width 10' x depth 14'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

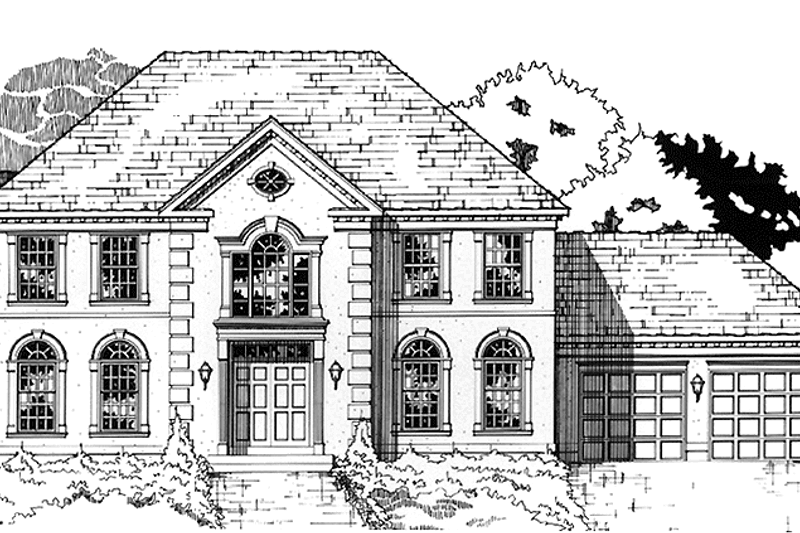

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$885.00
$960.00
$1075.00
$1130.00
$1865.00
$825.00
Foundation
$0.00
$0.00
$0.00
Framing
$0.00
Additional Options
$60.00
$100.00
$39.00
$100.00
$60.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
