Key Specs
2999
sq ft
4
Beds
4
Baths
2
Floors
3
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 20-1824
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 60'
Height : 32'
Width : 60'
Area
Bonus: 232 sq/ft
First Floor: 1872 sq/ft height 9'
Garage: 755 sq/ft
Second Floor: 1127 sq/ft height 8'
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : 2"x6"
Rooms
Bathroom 2:
49 sq/ft width 9' 4" x depth 5' 4"
Bedroom 2:
151 sq/ft width 11' 8" x depth 13'
Bedroom 3:
152 sq/ft width 12' 8" x depth 12'
Bedroom 4:
152 sq/ft width 12' x depth 12' 8"
Dining Room:
147 sq/ft width 11' 8" x depth 12' 8"
Exercise Room:
176 sq/ft width 14' 4" x depth 12' 4"
Family Room:
311 sq/ft width 15' 4" x depth 20' 4"
Front Entry:
110 sq/ft width 8' x depth 13' 9"
Game Room:
265 sq/ft width 16' 7" x depth 16'
Garage:
774 sq/ft width 22' 4" x depth 34' 8"
Kitchen:
177 sq/ft width 14' x depth 12' 8"
Kitchen Island:
24 sq/ft width 8' 4" x depth 3'
Laundry Room:
56 sq/ft width 6' 3" x depth 9' 1"
Loft:
110 sq/ft width 8' x depth 13' 9"
Master Bedroom:
240 sq/ft width 15' x depth 16'
Master Closet:
240 sq/ft width 15' x depth 16'
Powder Room:
31 sq/ft width 5' 8" x depth 5' 6"
Storage:
227 sq/ft width 10' 4" x depth 22'
Study:
143 sq/ft width 13' x depth 11'
Theatre Room:
284 sq/ft width 13' 8" x depth 20' 10"
What's Included In This Plan Set
- Cover Page: Front elevation and informative reference sections including: general notes and design criteria

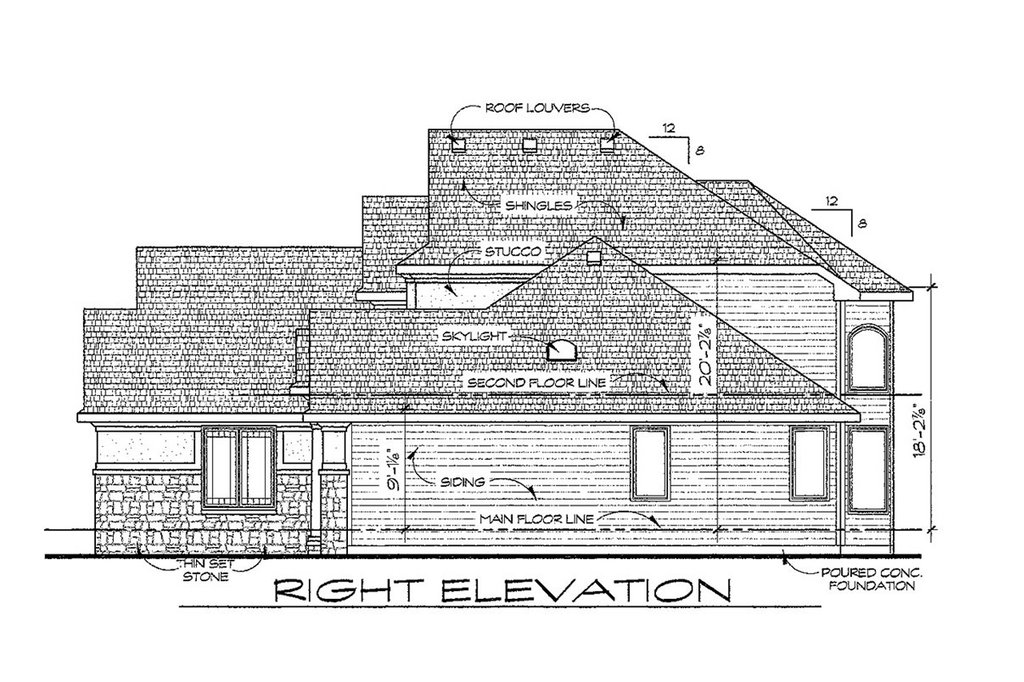

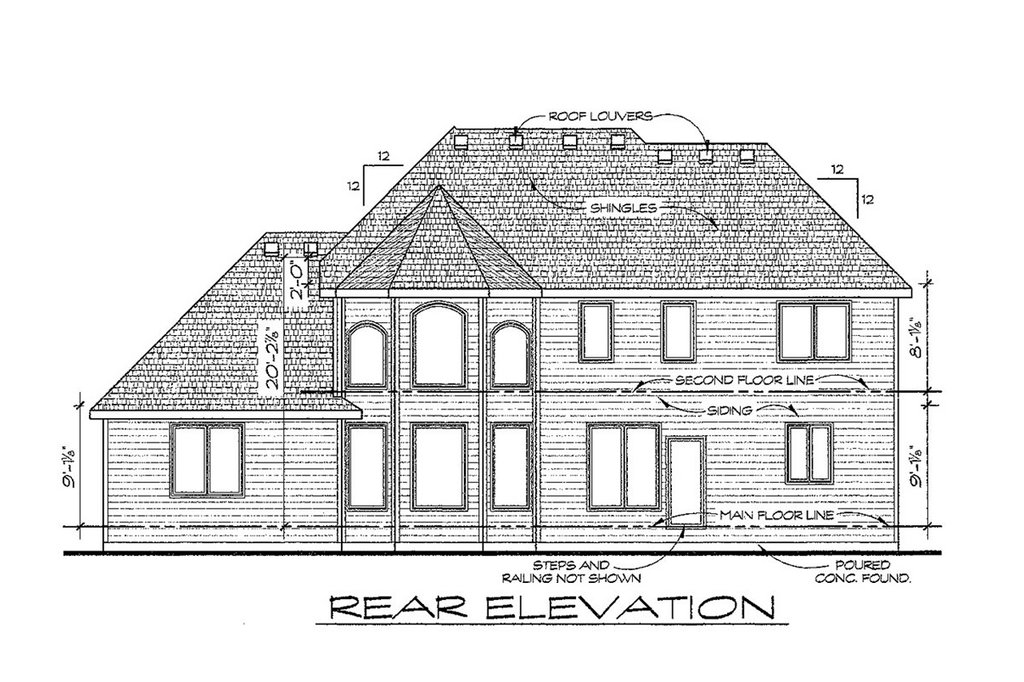

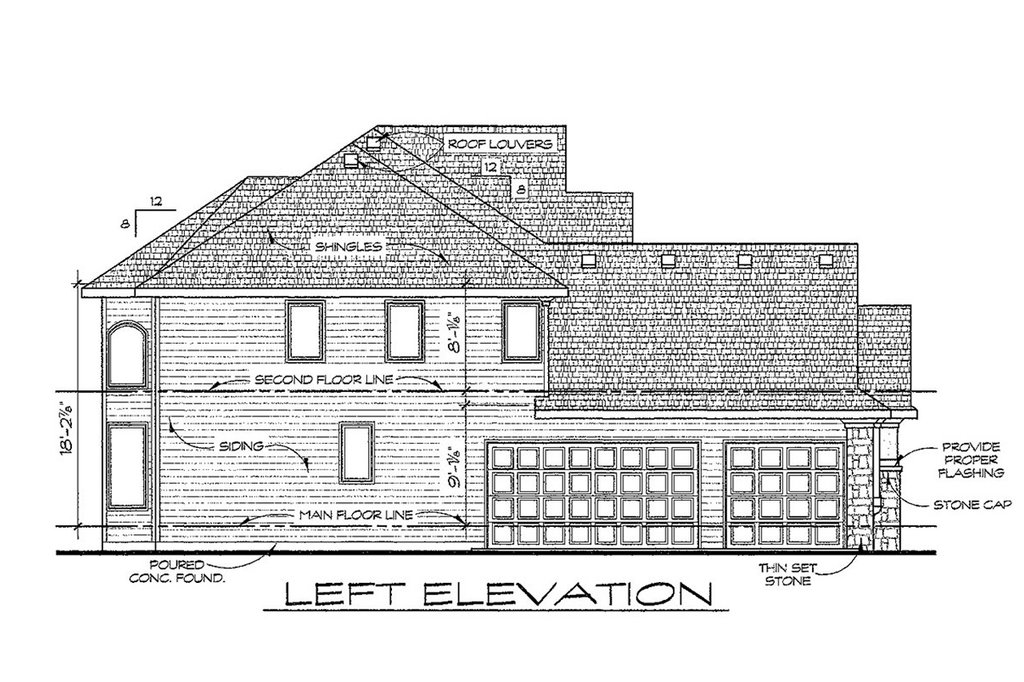

- Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
- Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.

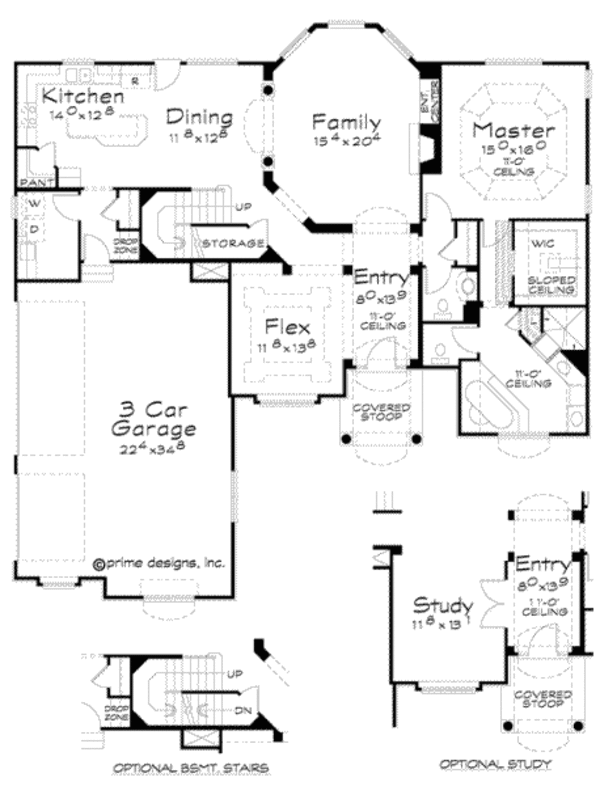

- Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.

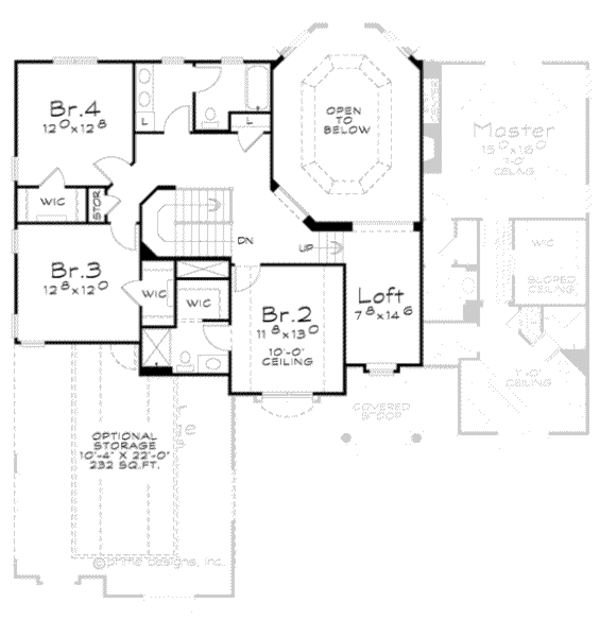

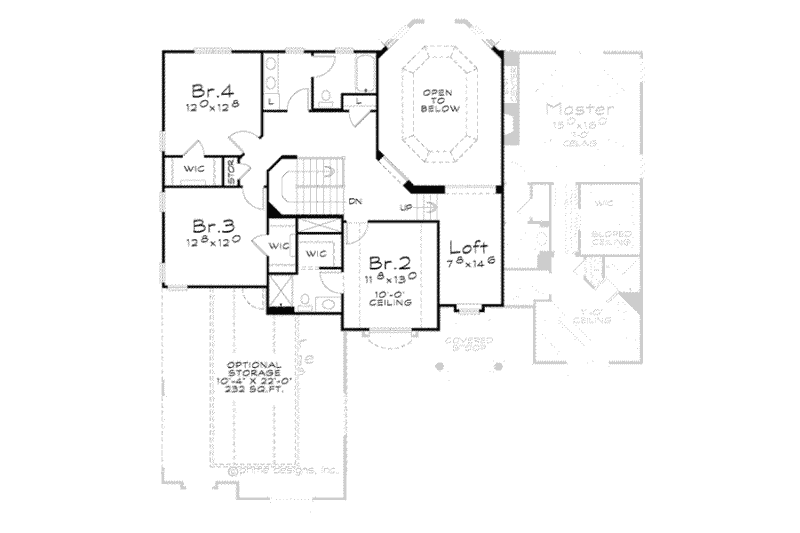

- Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
- Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations. Not included with all plans, please call for details.
- Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
Plan Set
$1255.00
$2020.00
Foundation
$0.00
$295.00
$295.00
$390.00
Framing
$0.00
$295.00
Additional Options
$295.00
$250.00
$165.00
$39.00
$165.00
$195.00
$500.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
