Plan Description

It's like your own mini castle! Here's a beautiful, unique home that provides brilliant spaces you'll love – a huge open kitchen with two islands and a spacious master suite with a big walk-in closet – all on one level. The gorgeous turret holds a home theater. An exposed-beam ceiling decorates the top of the great room, which leads outside to the fireplace-warmed porch. Three secondary bedrooms on the right hold family and visitors, while the left wing is reserved for the relaxing master suite and the conveniently close laundry room.

Floor Plans

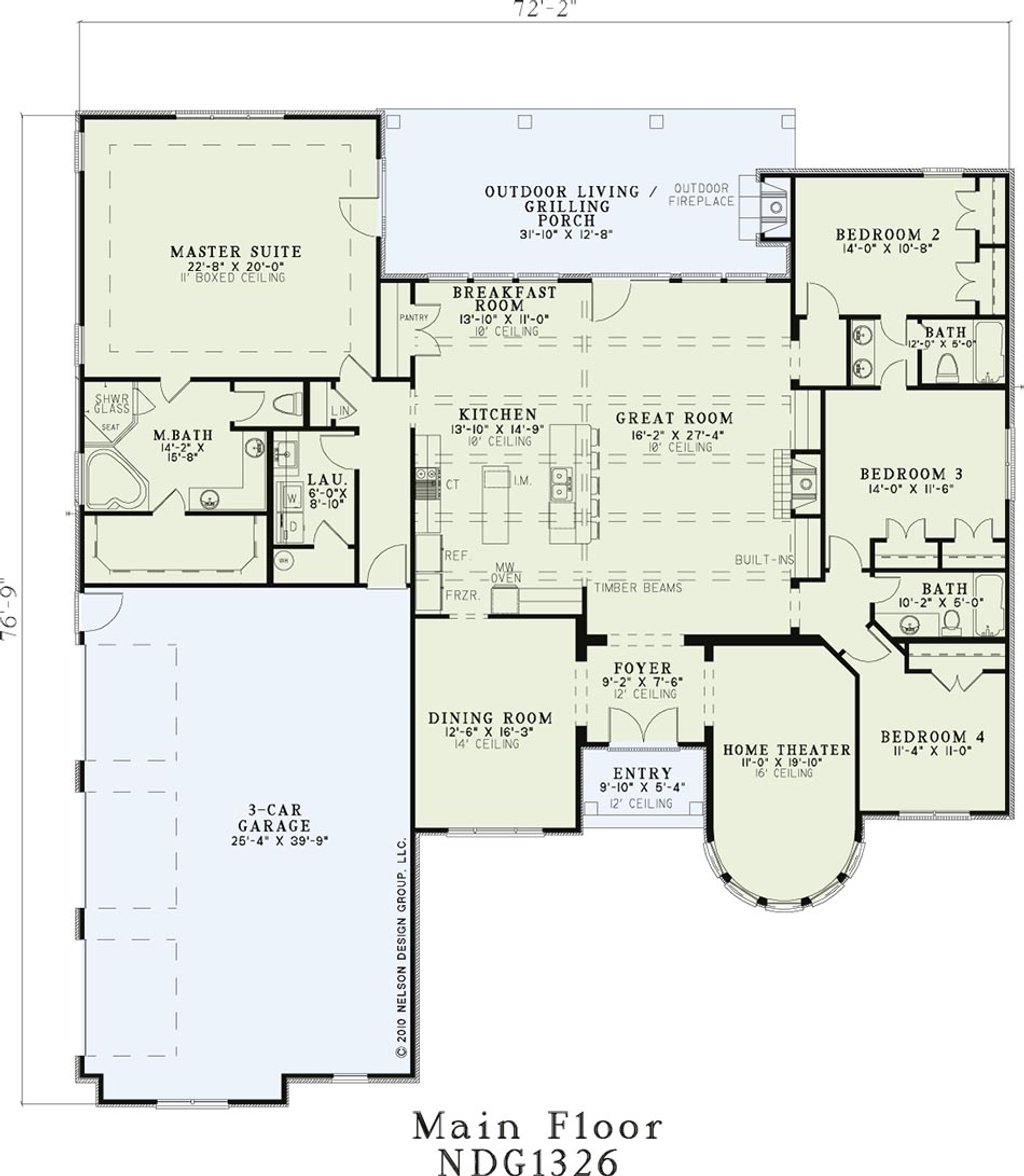

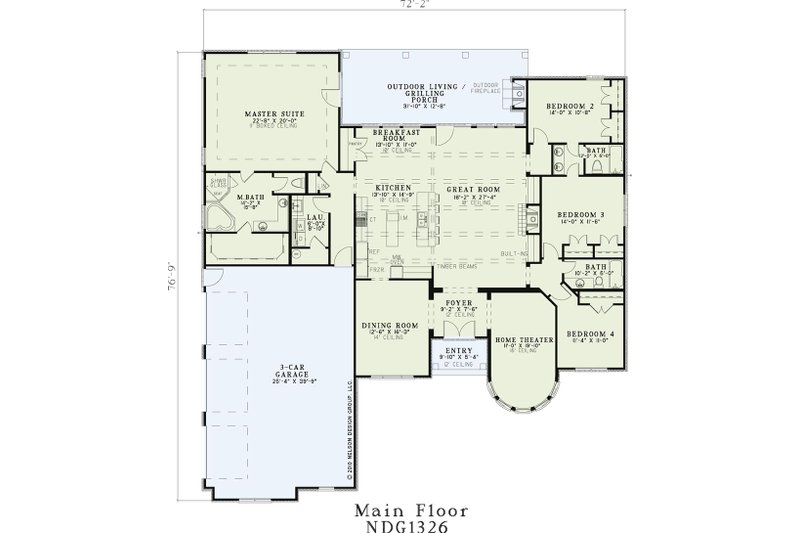

Floor Plan - Main Floor Plan

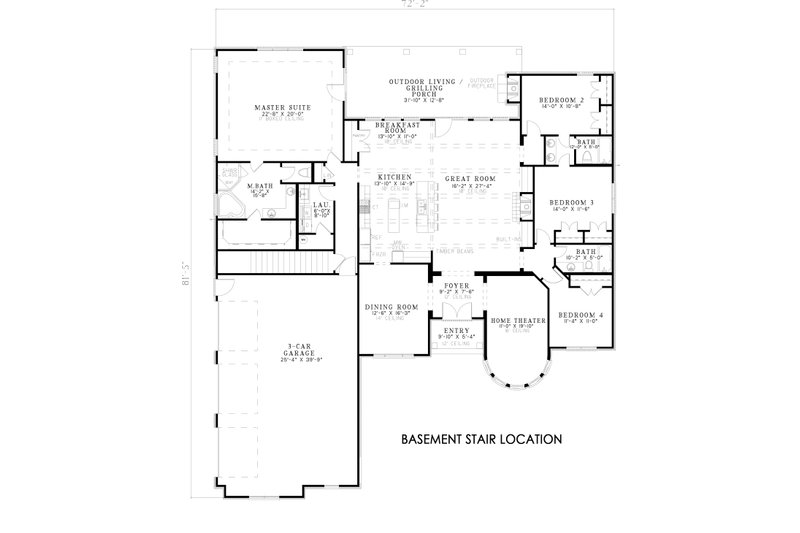

Floor Plan - Other Floor Plan

Full Specs & Features

Depth : 76' 9"
Height : 39'
Width : 72' 2"
First Floor: 3022 sq/ft height 10'
Garage: 1016 sq/ft height 10'
Porch: 457 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Media Room
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Rear Porch
Grill Deck Sundeck
Jack & Jill Bath

Bathroom 2:

60 sq/ft width 12' x depth 5'

Bathroom 3:

50 sq/ft width 10' 2" x depth 5'

Bedroom 2:

149 sq/ft width 14' x depth 10' 8"

Bedroom 3:

161 sq/ft width 14' x depth 11' 6"

Bedroom 4:

124 sq/ft width 11' 4" x depth 11'

Breakfast Room:

152 sq/ft width 13' 10" x depth 11'

Dining Room:

203 sq/ft width 12' 6" x depth 16' 3"


67 sq/ft width 9' 10" x depth 6' 10"


68 sq/ft width 9' 2" x depth 7' 6"


1046 sq/ft width 26' 4" x depth 39' 9"

Great Room:

441 sq/ft width 16' 2" x depth 27' 4"

Grilling Porch:

403 sq/ft width 31' 10" x depth 12' 8"

Home Theater:

218 sq/ft width 11' x depth 19' 10"


204 sq/ft width 13' 10" x depth 14' 9"

Laundry Room:

52 sq/ft width 6' x depth 8' 10"

Master Bathroom:

221 sq/ft width 14' 2" x depth 15' 8"

Master Suite:

453 sq/ft width 22' 8" x depth 20'

What's Included In This Plan Set

See a sample plan set
  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

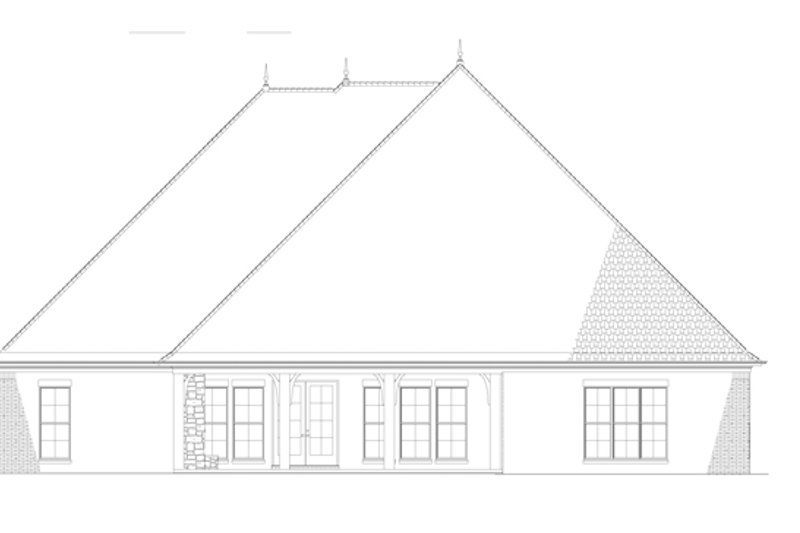

  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
