PLAN 112-189

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

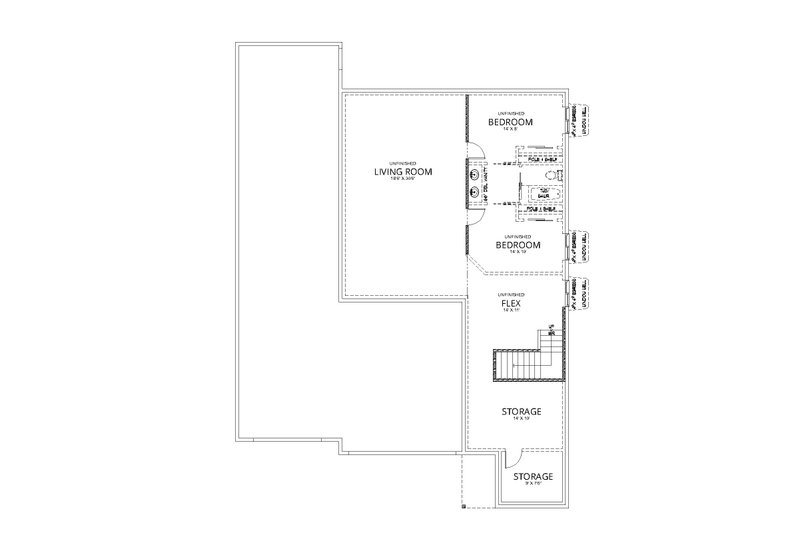

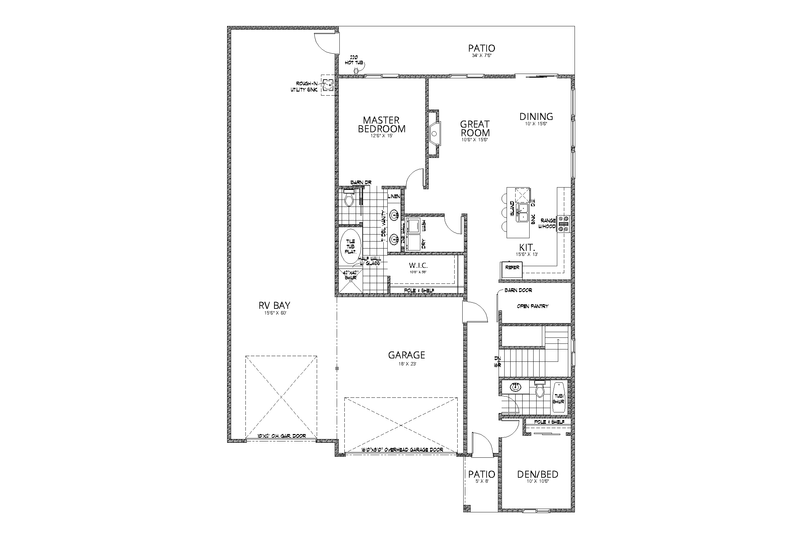

- A full sized RV Garage is a great surprise to this striking design. - The Kitchen is fantastic and includes an island eating bar and Walk-In Pantry. - The wide open Living Area includes everyone at rest or play. - The Front Den makes a great home office or Guest Suite. - The vaulted, spacious Primary Suite has a private Bath with double sinks, a private toilet, separate tub and large shower, and a linen cabinet not to mention a Walk-In Closet. - The Basement provides room to expand including a huge Living Room, two Bedrooms, a Jack & Jill Bathroom, Flex Space and plenty of Storage.

Full Specs & Features


Dimension

Depth : 70'

Height : 20'

Width : 50'

Area

Basement : 1491 sq/ft

Garage : 1485 sq/ft

Main Floor : 1556 sq/ft

Patios : 238 sq/ft

Porch : 40 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : RV stall: 14'-0" Great Room: 9'-0" at wall sloping to 11'-9" at interior ridge Master: 9'-0" at wall sloping to 11'-0" at Great Room wall

Garage Ceiling : 10'

Lower Ceiling : 9'

Main Ceiling : 9'

Roof

Primary Pitch : 3/12

Roof Framing : Roof Trusses

Roof Load : 40 L.L. /15 D.L.

Roof Type : Standard/Mono-Pitched

Secondary Pitch : 5/12

Exterior Wall Framing

Exterior Wall Finish : Lap siding

Framing : 2x6

Insulation : R-21

Bedroom Features

Guest Suite

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Play Flex Room

Storage Area

Unfinished Future Space

Garage Features

Front Entry Garage

Oversized Garage

RV Garage

Tandem Garage

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Grill Deck Sundeck

More

Economical To Build

Empty Nester

Suited For Vacation Home

What's Included In This Plan Set

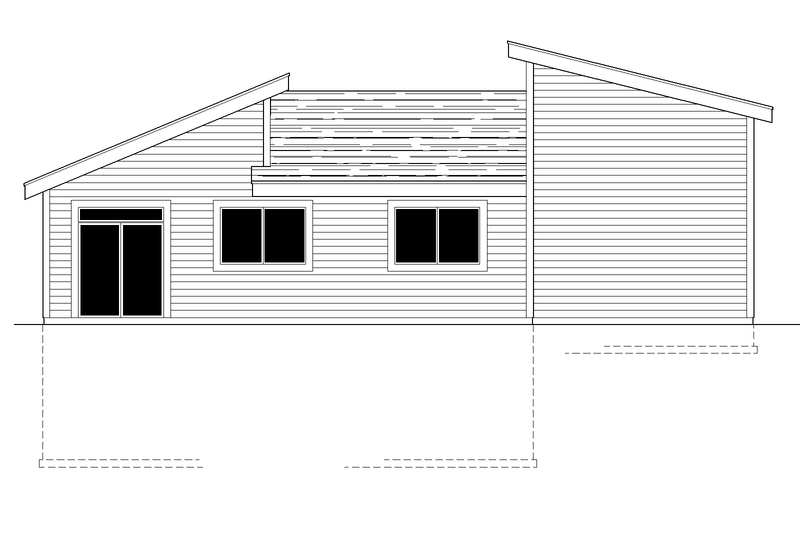

    Exterior Elevations:
    • Front, Rear, and Side Elevations
    • Scale 1/4" = 1'-0"
    • Roof Slopes
    Floor Plans:
    • Scale 1/4" = 1'-0"
    • All Dimensions and Post Locations
    • Beam and Header Sizes
    • Door and Window Sizes
    • Ceiling Details
    • Floor & Deck Joist Size & Spacing
    • Notes Pertaining to Code Requirements
    • Mechanical & Plumbing Locations
    • Electrical Layout
    • Square Footage of Floor Area, Garage, Decks, and Patios
    Foundation Plan:
    • Scale 1/4" = 1'-0"
    • All Dimensions and Post Locations
    • All Foundation Wall and Footing Sizes
    • Beam and Header Sizes
    • Door and Window Sizes
    • Floor & Deck Joist Sizes & Spacing
    • Notes Pertaining to Code Requirements
    • Mechanical & Plumbing Locations
    • Electrical Layout
    Roof Framing Plan:
    • Scale 1/4" = 1'-0"
    • All Framing Members Type and Size
    • All Beam & Header Sizes & Locations
    • Truss Hangers
    • Roof Lines, Ridges, Valleys, & Hips
    • Notes Pertaining to Code Requirements
    • Over-Framed or Over-Build Areas
    • Girder and Hip Master Truss Locations
    • Raised and Lowered Plate Heights
    Building Sections:
    • Scale 1/4" = 1'-0"
    • Roof Trusses and Rafter Framing
    • Beam Connections and Locations
    • Special Framing Details
    • Plate Heights and Foundation Wall Heights
    • Roof Slopes and Construction Materials
    • Structural Members
    Braced Wall Panel Plans: May Require Local Engineering
    • Scale 1/4" = 1'-0"
    • Braced Panel Locations
    • Alternate Braced Panel Locations
    • Engineered Panel Locations
    • Alternate Braced Panel Details
    • Braced Panel Notes and Tables
    Wall Sections:
    • Scale 1/2" = 1'-0"
    • All Materials and Construction Notes
    • Insulation Requirements
    Stair Detail:
    • Scale 1/2" = 1'-0"
    • Section Through Stairway
    • Notes Pertaining to Code Requirements
    • Floor to Floor Heights
    • Rise and Run Dimensions
    Cabinet Elevations:
    • Scale 3/8" = 1'-0"
    • Dimensions and Details of All Cabinets
    • Notes: Nailing Schedule, Radon Notes, Structural Design Loads, Abbreviations, Truss Notes Electrical Symbol Key, & Insulation Notes
» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1250.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
CAD Single Build:
$1600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Unlimited Build:
$1750.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Unlimited Build:
$2300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00
Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
