PLAN 137-227

Key Specs


3049
sq ft

5
Beds

4.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Floor Plans

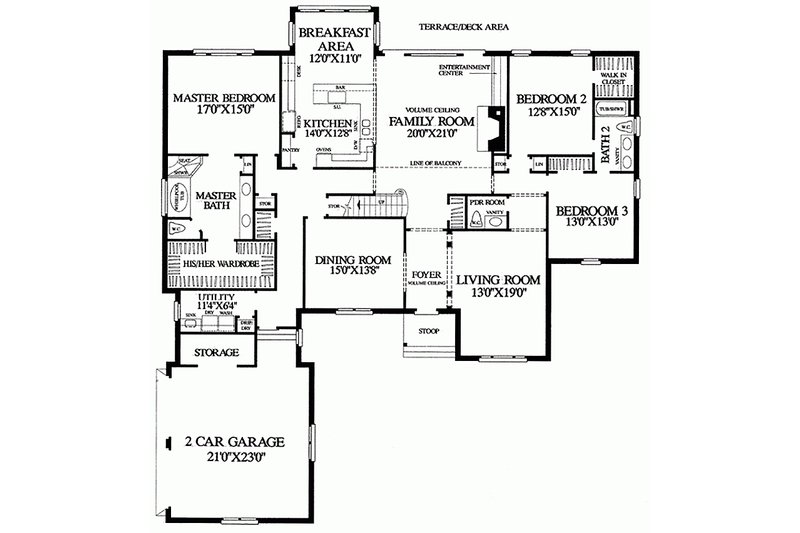

Floor Plan - Main Floor Plan
Reverse
Save

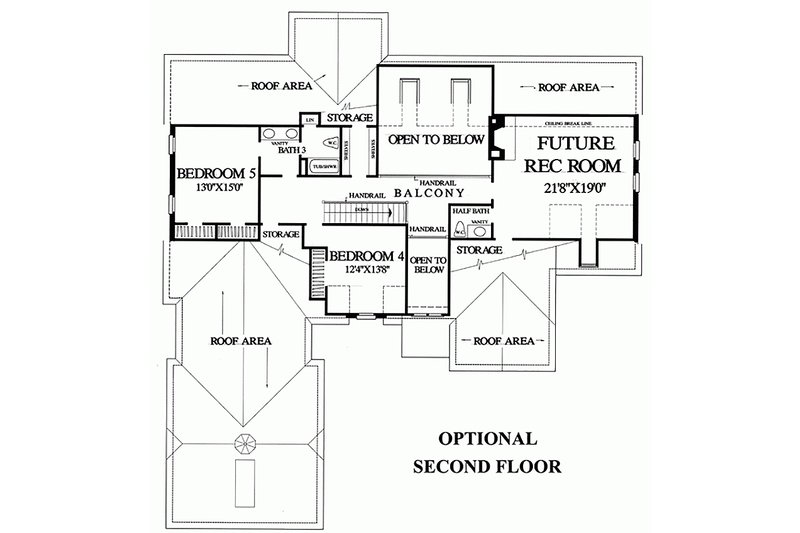

Floor Plan - Upper Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 78' 10"
Height : 34'
Width : 72' 6"
Area
Bonus: 1350 sq/ft
First Floor: 3049 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Family Room Keeping Room
Loft
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Balcony
Rooms

Bedroom 2:

190 sq/ft width 12' 8" x depth 15'

Bedroom 3:

169 sq/ft width 13' x depth 13'

Bedroom 4:

168 sq/ft width 12' 4" x depth 13' 8"

Bedroom 5:

195 sq/ft width 13' x depth 15'

Bonus Room - Finished:

411 sq/ft width 21' 8" x depth 19'

Breakfast Room:

132 sq/ft width 12' x depth 11'

Dining Room:

205 sq/ft width 15' x depth 13' 8"

Garage:

483 sq/ft width 21' x depth 23'

Gathering Room:

420 sq/ft width 20' x depth 21'

Kitchen:

177 sq/ft width 14' x depth 12' 8"

Living Room:

247 sq/ft width 13' x depth 19'

Master Bedroom:

255 sq/ft width 17' x depth 15'

Utility Room:

71 sq/ft width 11' 4" x depth 6' 4"

What's Included In This Plan Set


See a sample plan set All plans are drawn at ¼” scale or larger and include :
  • Designer’s rendering of front elevations
  • Foundation and dimensioned floor plans
  • Electrical plans
  • Section through house
  • All exterior elevation
  • Selected interior elevations; door and window sizes; fireplace details; stair details; molding details; cabinet details; roof plan and exterior details.
  • Roof Plan and Exterior Details
» See important information before purchasing.

Plan Set

5 Copy Set :
$920.00
5 printed plan sets mailed to you.
8 Copy Set :
$1010.00
8 printed plan sets mailed to you.
PDF Set :
$1200.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1200.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Single Set :
$800.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Additional Construction Sets :
$55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$55.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
